4. Transport the unit to its intended installation surface.
5. Slide the gasket back into its slot in the base frame.
>>
The unit is standing on its intended installation surface and is ready for in-
stallation.

4.3.2 Transporting standalone units without a pallet with a pallet jack

a
The packaging material is removed.
a
The unit is on its feet.
a
The carrying aids are available for use.
a
The pallet truck is at the lowest setting.

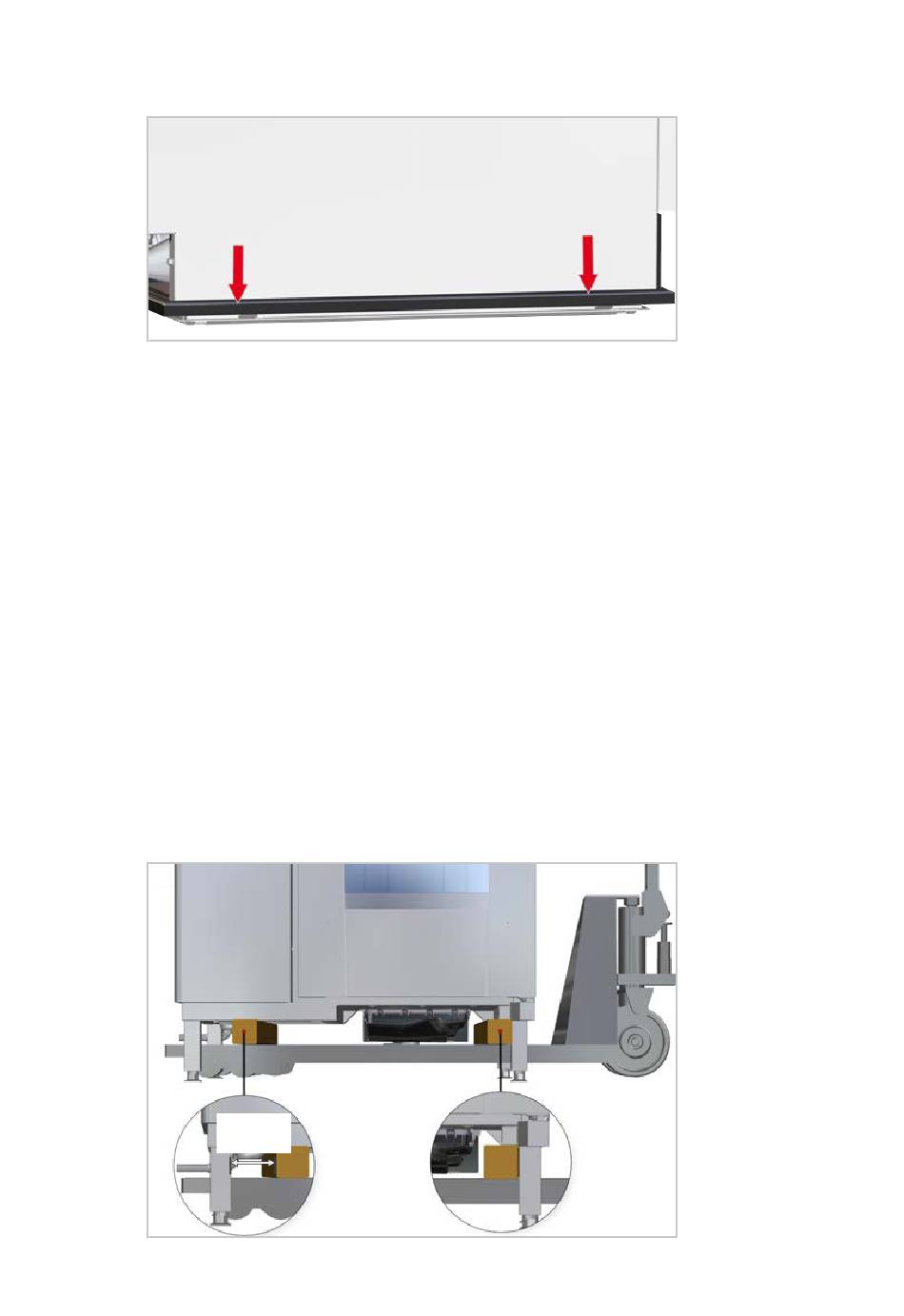

1. Drive the pallet jack underneath the unit from the left or right. Make sure
that the pallet jack is at the lowest setting.
2. Loosen the two screws holding the transport aids together and separate the
transport aids.
3. Place the transport aids between the standalone unit and the pallet jack.
Watch out for protruding parts.
>
The left carrying aid must be positioned around 100 mm [4 inches] next to
the left unit foot.
>
The right carrying aid must be positioned by the right unit foot.
100 mm
(4 Inch)
