4 | Transport
a
The unit is on the shipping pallet.
a
The unit feet are positioned in the rubber frame of the shipping pallet.
1. Transport the unit to its place of installation with the transport pallet. Dur-
ing transport, watch out for protruding parts on the underside of the unit.
>>
The unit is standing on its intended installation surface and is ready for in-
stallation.
4.3

Transporting without a shipping pallet with a pallet jack

Transporting without a shipping pallet with a pallet jack
Do not transport the unit without protection with a pallet jack. For
protection, you can use a wooden pallet or wooden beams.
Unit size 6-2/3 GN: Damage to the unit if lifted incorrectly
During transportation, make sure that the air filter box and the USB
connection remains intact.
Required door width without a transport pallet
Unit size
x (mm)
x (inch)

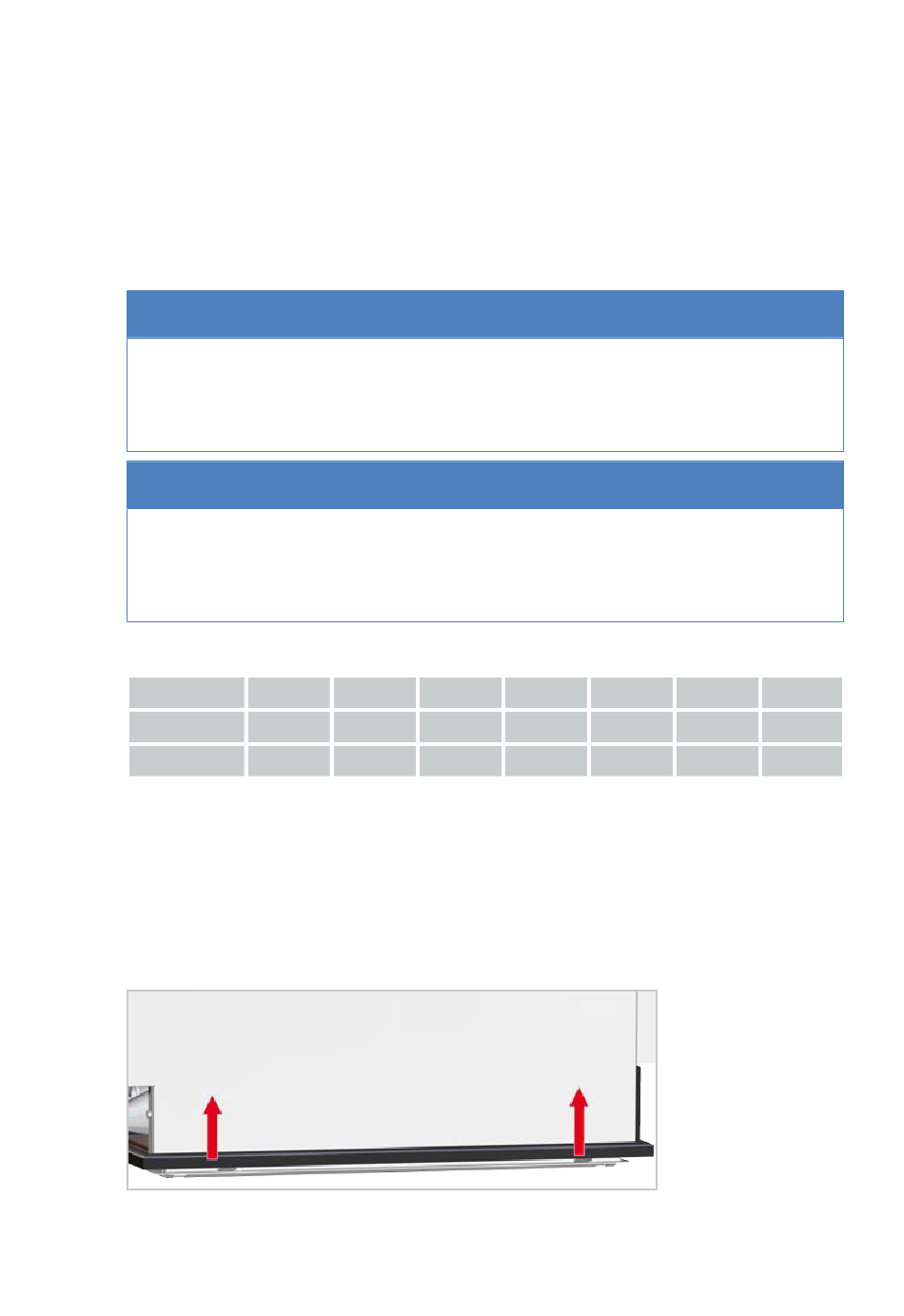

4.3.1 Transporting tabletop units without a pallet with a pallet jack

a
The packaging material is removed.
a
The unit is on the base frame.
a
To avoid scratches on the underside of the unit, provide protection against
damage to the unit.
1. Slide the gasket upwards from the slot in the base frame.
2. Place the damage protection on the pallet jack.
3. Lift the unit at the lifting points with the pallet jack.
22 / 108
6-2/3 6-1/1
630 845
24 3/4 33 1/4
NOTICE
NOTICE
6-2/1 10-1/1 10-2/1 20-1/1 20-2/1
1045 845
41 1/8 33 1/4
80.06.070_iCombiPro-iCombiClassic_IM_en-GB
1045 925
41 1/8 36 3/8
1145
45 1/8
