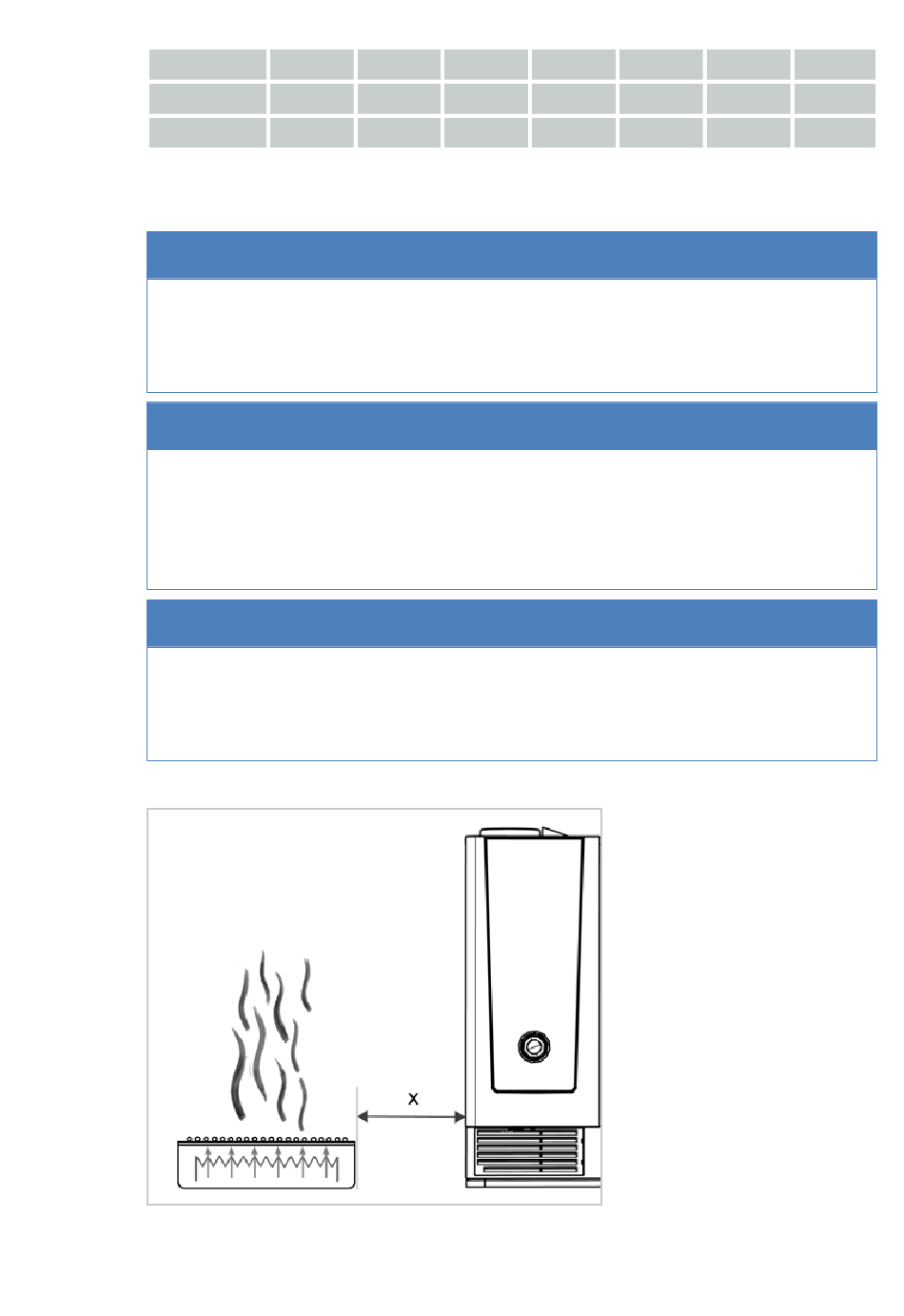

5.1.2 Distance to heat sources

Minimum clearance not adhered to
Place the unit with the minimum clearance to heat sources or open fire
required to prevent any damage to the unit or malfunctions.
High ambient temperature next to the installation site (left side of the unit)
If the temperatures at the installation site on the left side of the unit exceed
80°C [176°F], the heating system will be switched off by the automatic
emergency shutdown.
High ambient temperatures on the rear side of the unit
Do not place any deep-fat fryers or other heat sources by the rear side of the
unit.
Set up the unit with a minimum clearance to heat sources on the left and right.
80.06.070_iCombiPro-iCombiClassic_IM_en-GB
6-2/3 6-1/1
214 246
8 1/2 10
6-2/1 10-1/1
316 246
12 1/2 10
NOTICE
NOTICE
NOTICE
5 | Placement
10-2/1 20-1/1
316 268
12 1/2 11
31 / 108
20-2/1
338
13
