Transporting with a transport aid without protection
Transport the unit as far as you can on the pallet. Do not transport the unit
without protection with a transport aid or a similar transport tool. For
protection, you can use a wooden pallet.
x

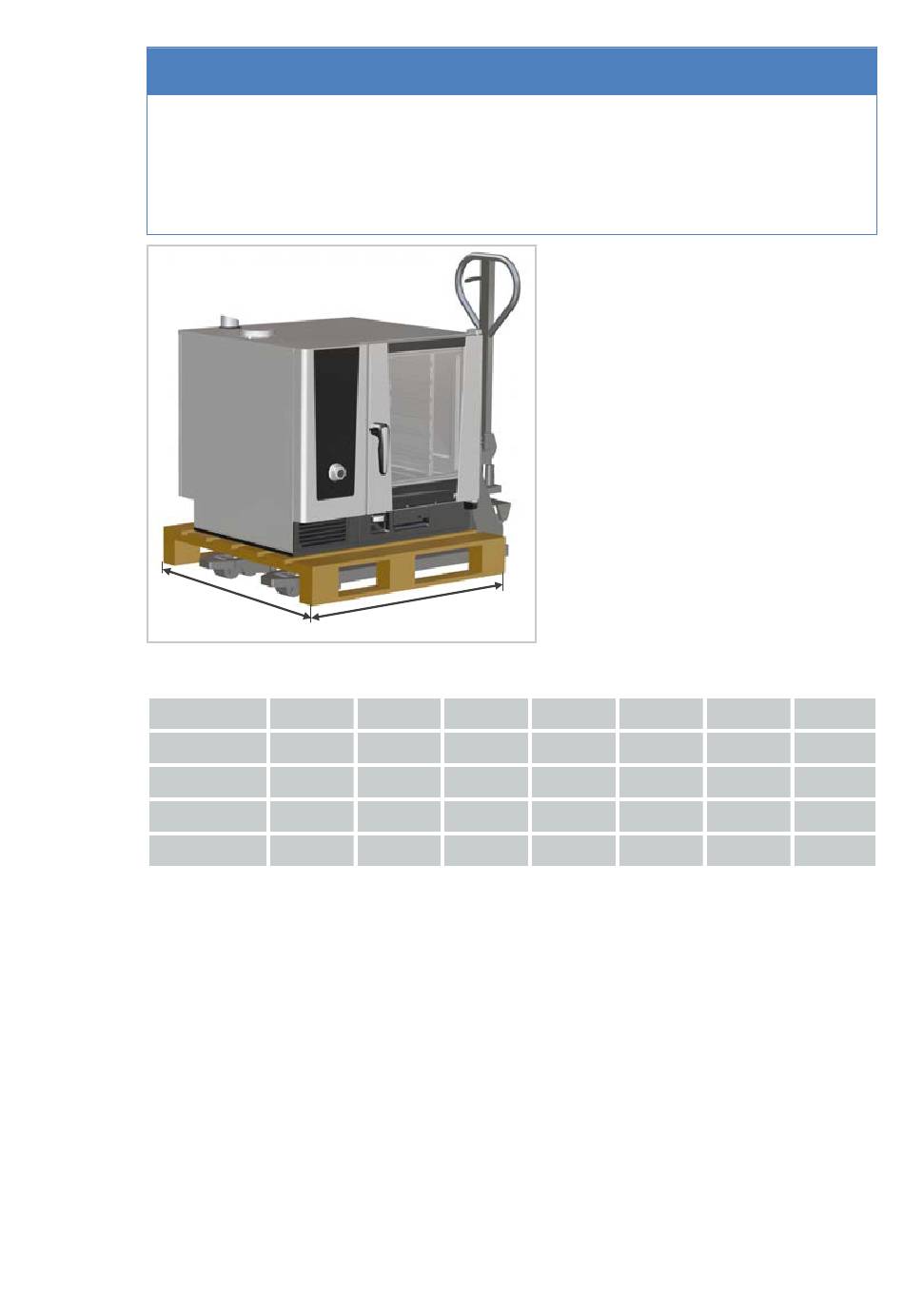

Required door width with transport pallet
Unit size
x (mm)
x (inch)
y (mm)
Y (inches)
Transporting tabletop units with transport pallet
a
The packaging material is removed.
a
The unit is on the shipping pallet.
a
The unit is on the base frame.
1. Transport the unit to its place of installation with the transport pallet.
2. Lift the unit at the lifting points from the transport pallet and place it on its
intended installation surface.
>>
The unit is standing on its intended installation surface and is ready for in-
stallation.
Transporting standalone units with transport pallet
Upon delivery, standalone units are on a special, separable transport pallet.
a
The packaging material is removed.
