Connecting The Equipotential Bonding - Rational iCombi Pro Original Installation Manual

Unit size 20-1/1 GN - 20-2/1 GN
1. Insert the left side panel underneath the unit frame upwards.
2. Press the side panel upwards.
3. Tighten 2 screws on the underside of the side panel.
>>
The electrical compartment is closed.
6.8

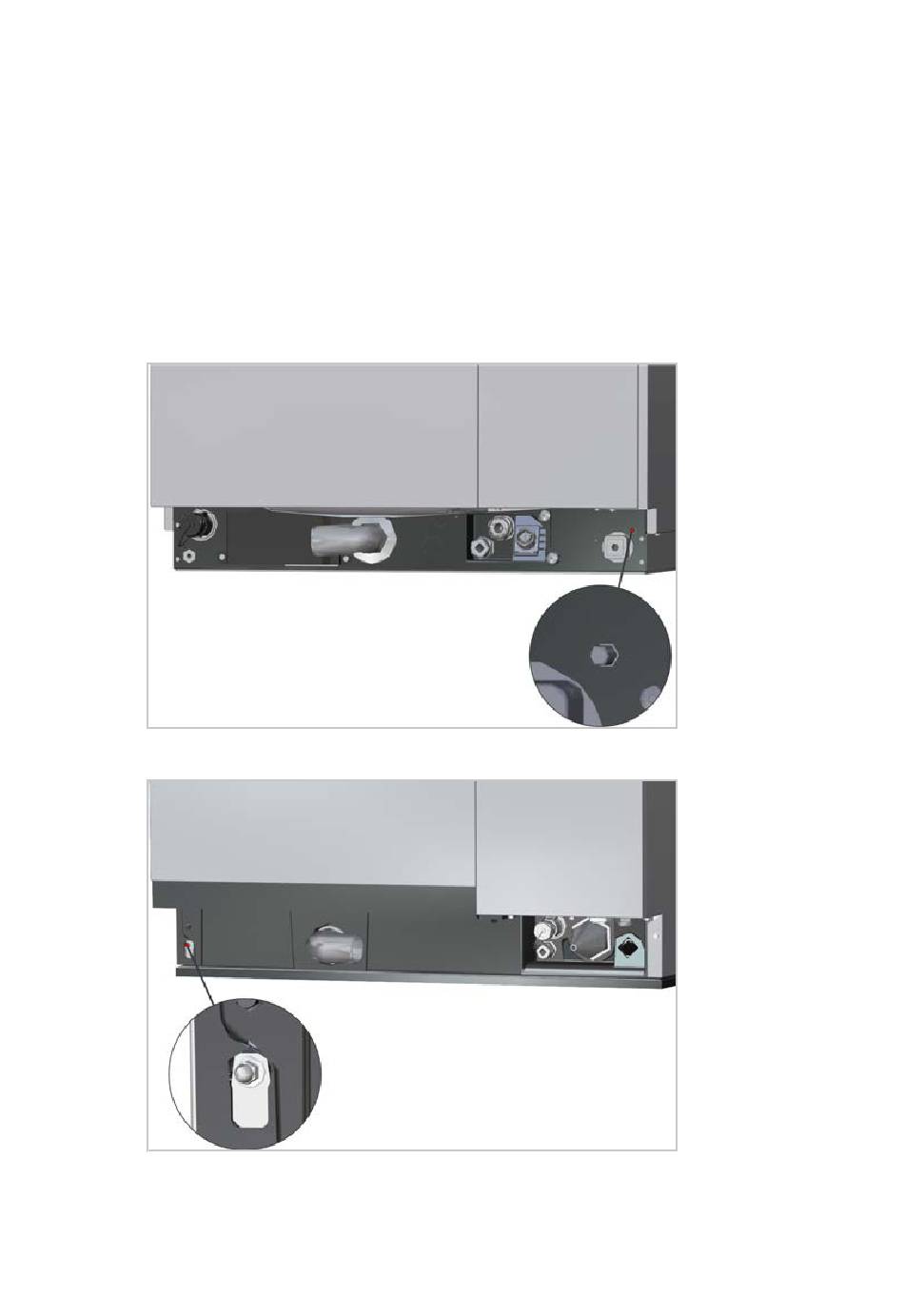

Connecting the equipotential bonding

A connection site for equipotential bonding is located on the bottom or the rear
of the unit.
Unit size 6-2/3 GN
Unit size 6-1/1 GN to 10-2/1 GN
80.06.070_iCombiPro-iCombiClassic_IM_en-GB
6 | Electrical connection
61 / 108
