5 | Placement
x [inch]

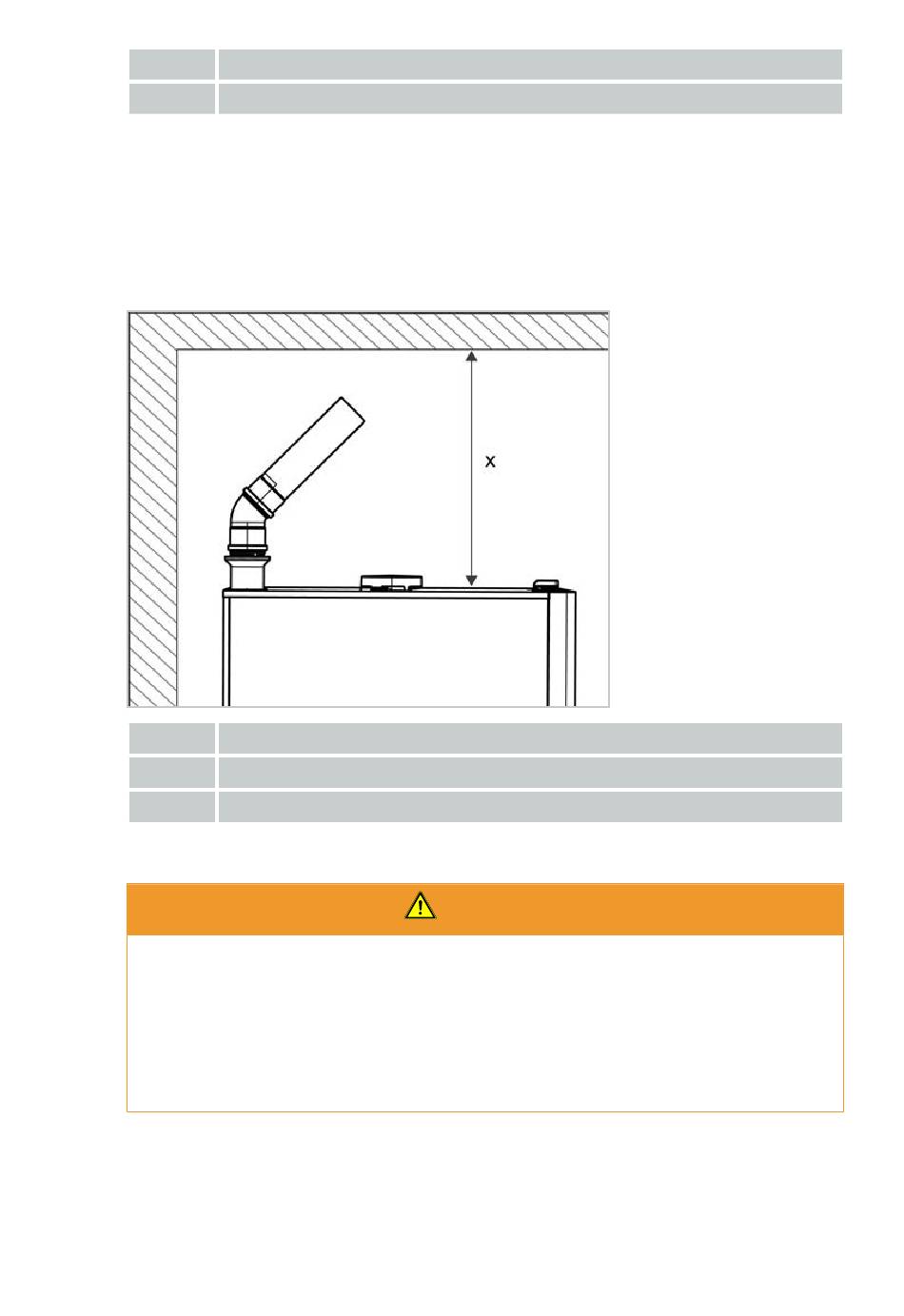

Condensation breaker
If steam from the vent pipe cannot be directed into an extraction hood or a
ventilating ceiling, there must be a minimum clearance to the ceiling above the
unit.
This space is required to install a condensation breaker so that exhaust air can
be directed into non-critical areas.
x [mm]
x [inch]
5.2

Installation of tabletop units

The unit is falling from the installation surface
Risk of crushing and injury from tipping or turning of the unit.
Do not tip the unit onto the installation surface.
n
When turning the unit, make sure that the weight of the unit is evenly
n
distributed and that the unit is completely on the installation surface.
34 / 108
Minimum clearance ceiling
16
Minimum clearance ceiling
500
20
WARNING
