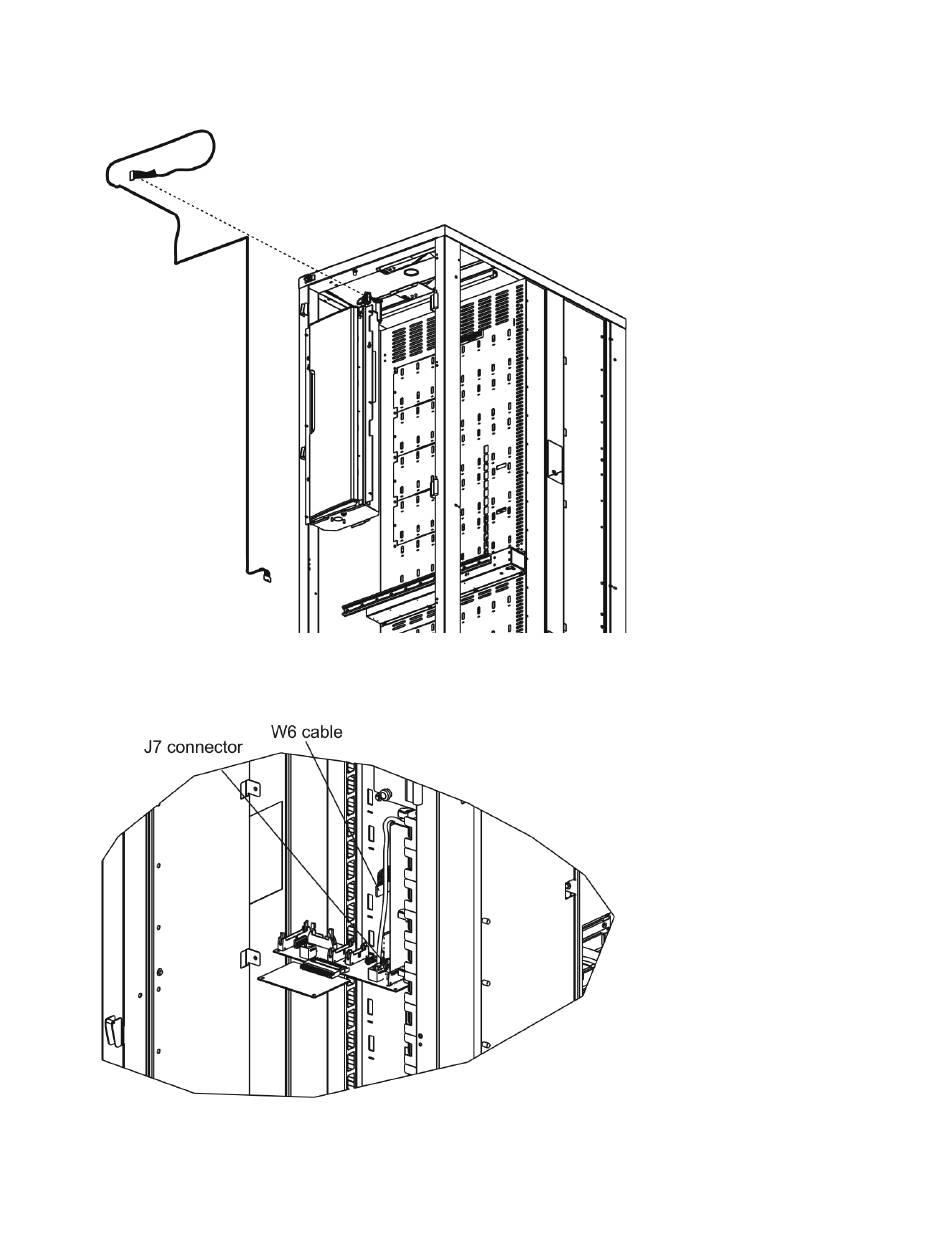

13 Route the I/E station cable (W6) from the I/E station lock assembly following the door interlock cable to
toward the rear of the expansion module. Continue routing cable W6 through the drive cluster clamps
down toward the LBX.
14 Connect cable W6 to the J7 connector on the LBX card.
Scalar i2000 Installation Guide
55
