Installing the X-axis Cable Chain Assembly
The appropriate length X-axis chain was shipped with the expansion module(s) ship kit. The X-axis chain
that has been removed will not be used in the new configuration. Follow the procedure below to install the
X-axis chain assembly.
1
Connect the X-axis chain connector to the control module firewall.
2

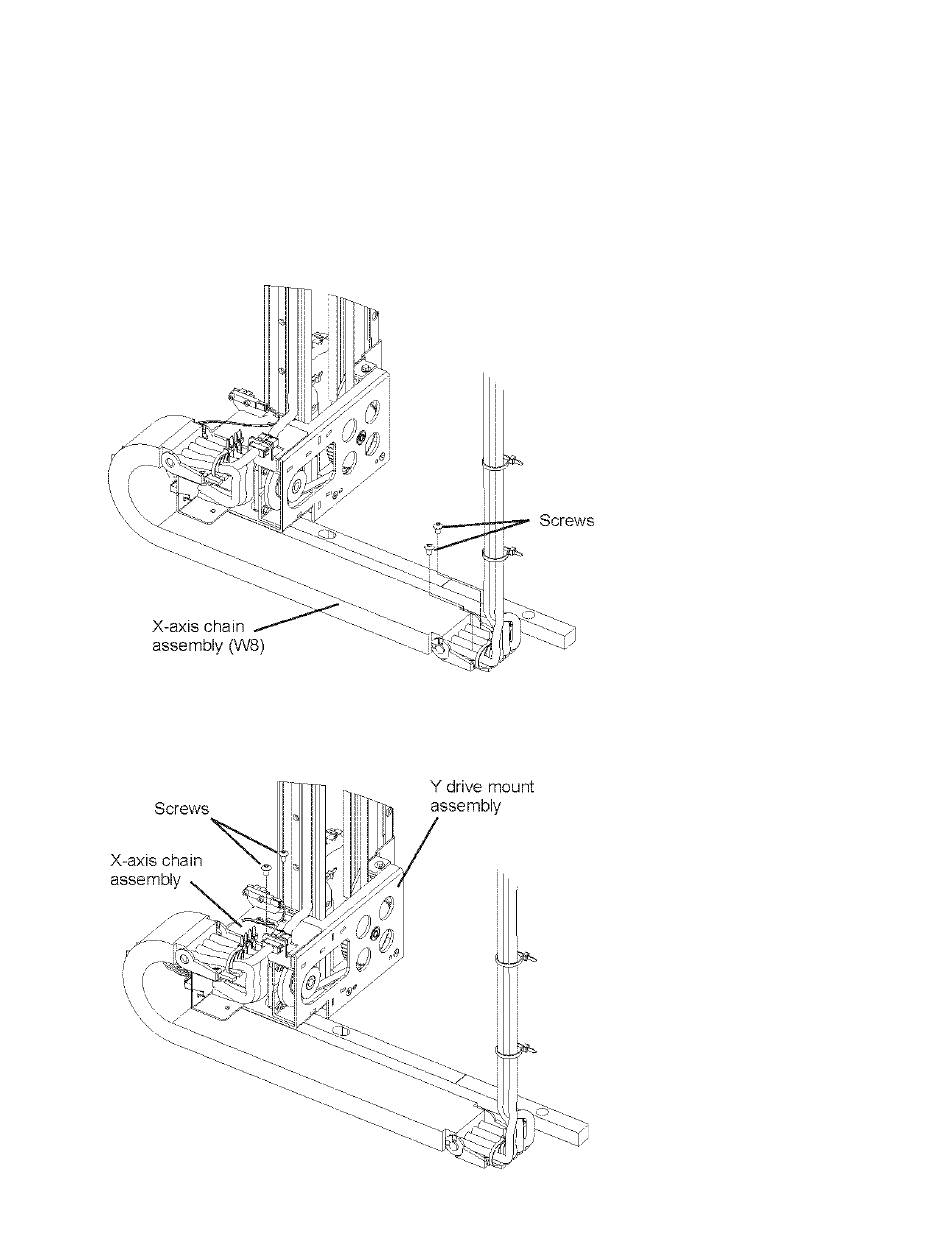

Using the 3 mm hex wrench, secure the X-axis chain assembly (W8) to the bottom of the control module
using two 3 mm screws.
3
Secure the X-axis chain to the storage wall with the velcro straps.
4
Using the 3 mm hex wrench, attach the X-axis chain assembly (W8) to the Y drive mount assembly
using two 3 mm screws.
36
Installing a Multi-Module System
