2

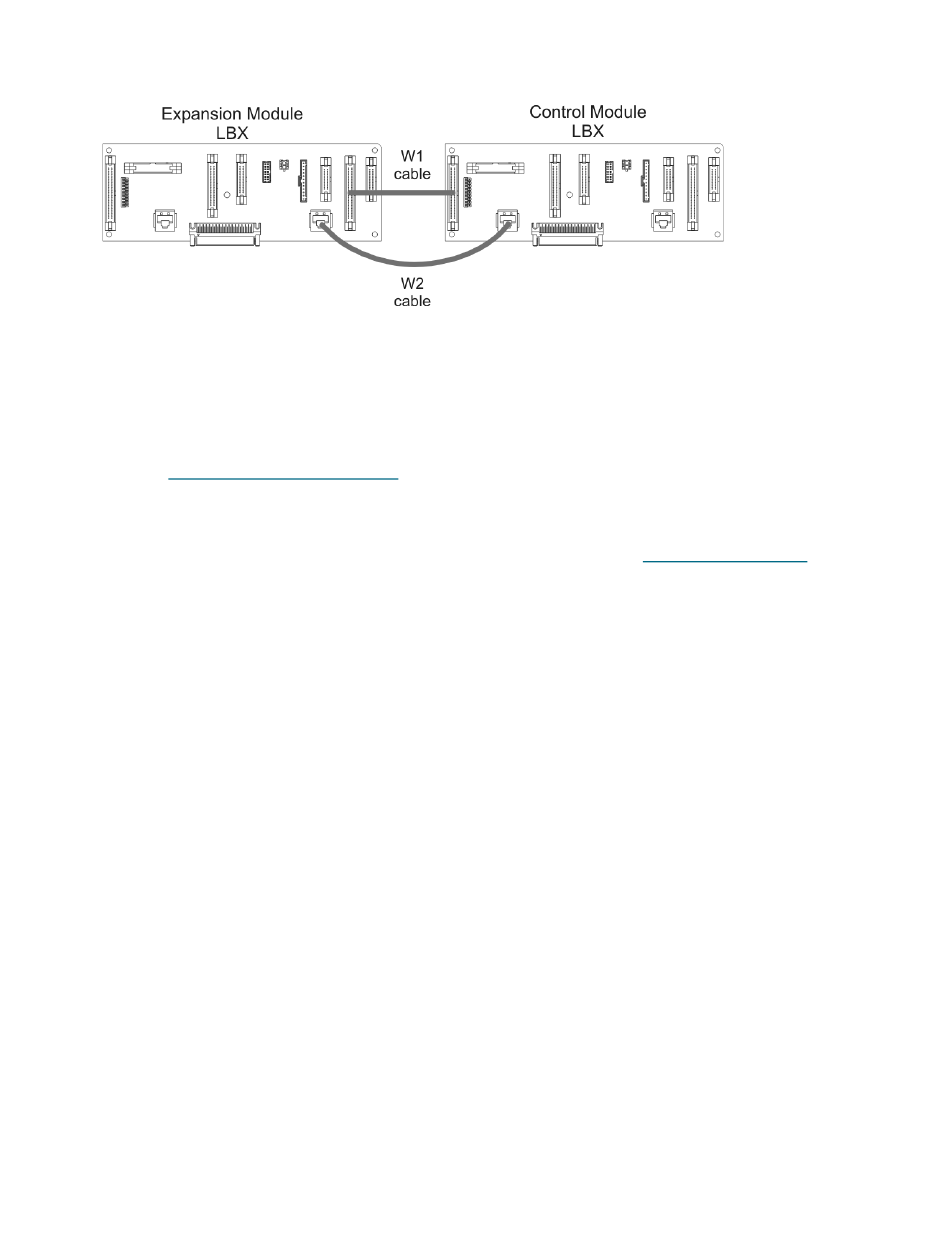

Route and connect the ribbon cable (W1) to the LBX in the previous module. Route and connect the
Ethernet cable (W2) to the LBX in the previous module.
Assembling the Last Expansion Module
1
Reattach all of the rear doors.
2
Remove the magazine storage on rack # 1 in sections 1 - 5 on Column 4 in the last expansion module.
3
Perform
Installing the Right Side Panel
module.
4
Reinstall the removed magazine storage on both frames.
5
Once the components are installed, perform the procedures detailed in
69.
Installing the Right Side Panel
1
Install the L brackets.
2
Locate the right side panel that was removed from the control module or previous expansion module.
3
Lower the side panel onto the module.
4
Using the 2.5 mm hex wrench and nine (9) screws, attach the side panel to the module.
Scalar i2000 Installation Guide
on page 39 to attach the right side panel to the last expansion
Hardware Verification
on page
39
