Eleting A Terminal - Voltech AT3600 User Manual

V AT3600 U
OLTECH SER
2.6. D

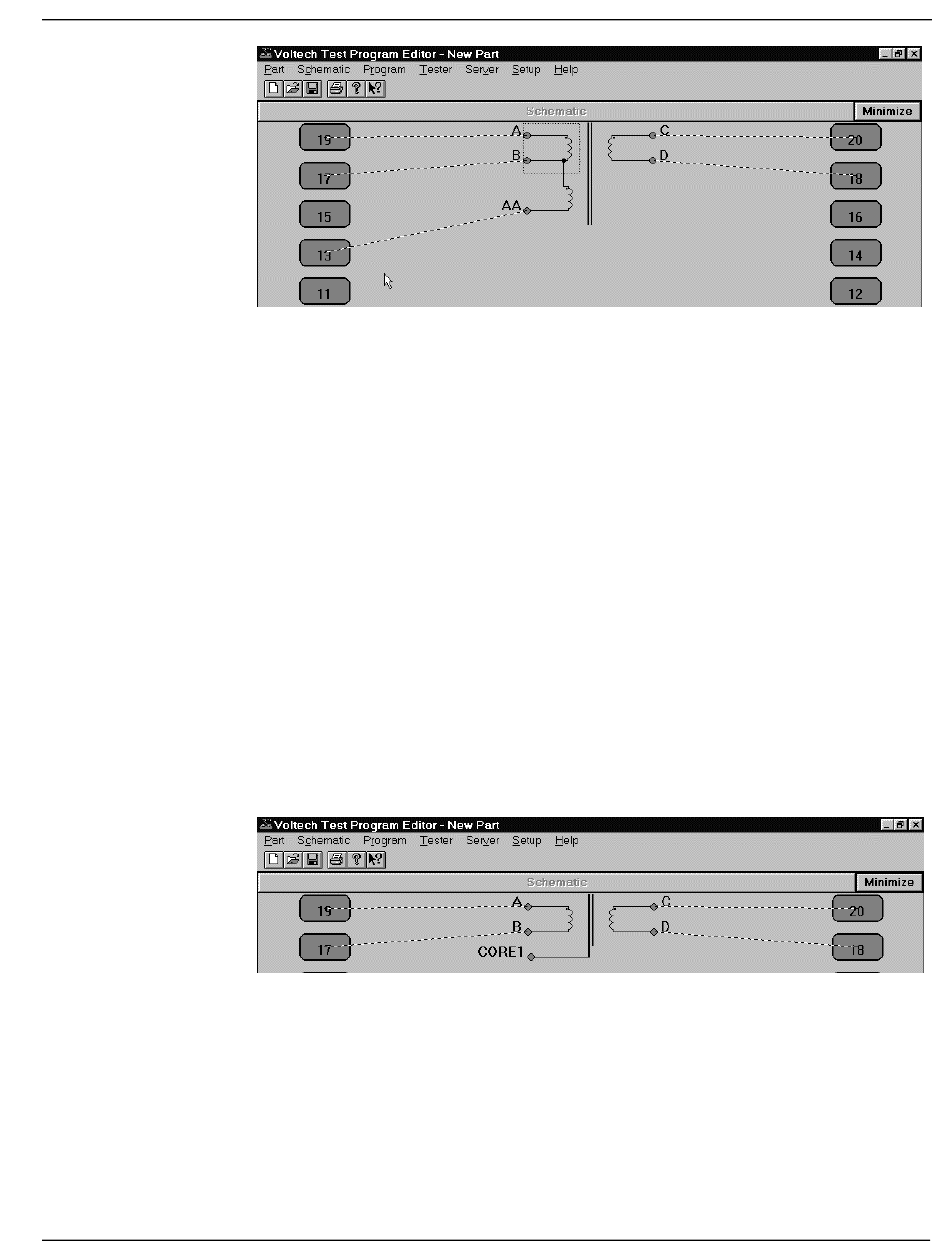

To remove a terminal from a transformer winding:
1. Select the terminal which you would like to be removed by using the mouse
2. Choose 'Delete Winding' from the 'Schematic' menu on the menu bar.
The bottom terminal of the winding will be removed from the screen, together with
any connections to that terminal which are present.
2.7. A
To add a core connection:
1. Choose 'Add Core Connection' from the 'Schematic' menu.
A connection from the core will appear on the screen. You may now add a core-to-
node connection.
T P E
EST ROGRAM DITOR
M
ANUAL
ELETING A
pointer and clicking the left mouse button once.
DDING A
T F
ERMINAL
C C
ORE ONNECTION
VPN 98 – 024
E
ROM AN XISTING
S E
CHEMATIC DITING
W
INDING
P 3.2.5
AGE
