Important Note:
Should self-test fail for any reason, contact Voltech technical support immediately,
providing the following information:
• Serial number of the instrument
• Status error codes (the four-digit number and the one or two-digit number in
E
Status error codes are also shown when using the Editor software in download and
run mode. They are shown at the end of each test result. Only the first four-digit error
code is displayed when using the Editor.

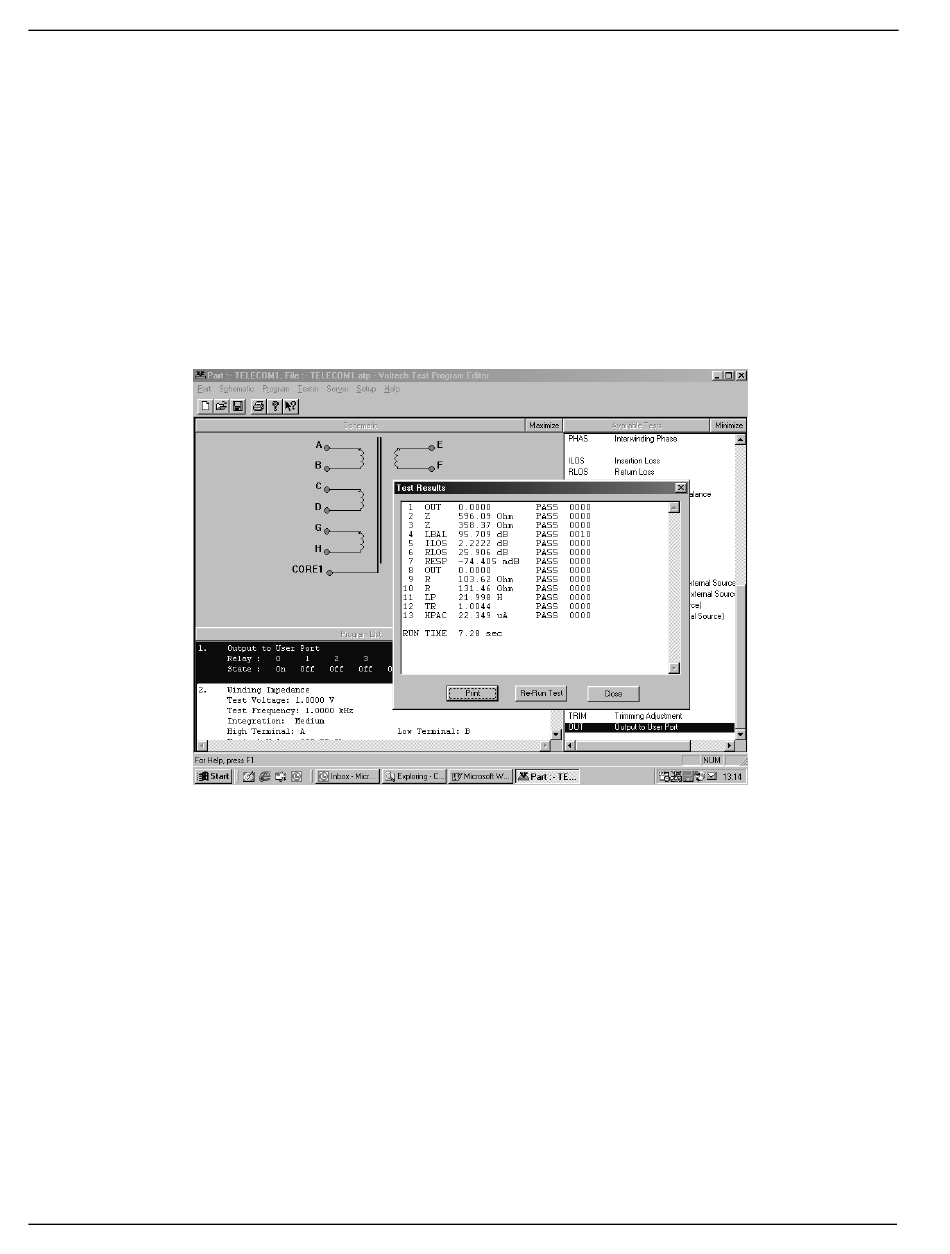

If you look at the test results screen shown above, you will see that test 4 (LBAL)
contains a status error code of 0010. This error code indicates that "The measurement
had not settled in time". Although this test passed, it indicates that a problem existed
during the test sequence. In this particular example, the fault was due to a poor
connection to the core of the transformer.
The following table gives the error codes that can appear when using the run facility
in the Editor or when viewing on-line results with the Server. These error codes can
give specific help in modifying the test program, depending on the tests used.
The error code is a 16-bit binary code, which is shown in hexadecimal notation in the
table below. The error codes indicate one single bit of the 16-bit code, and therefore
one or more errors could occur at the same time, which will be shown as a full, 4-
digit hexadecimal code. For example, if a voltage over-range (xxx1) and a current
over-range (xxx2) have occurred at the same time during test, then the error code is
*0003* (i.e., both bits 0 and 1 set in the 16 bit binary error code).
If a test has failed due to an interrupt, then an additional code is attached to bits 12-15
of the error code as the table details further.
