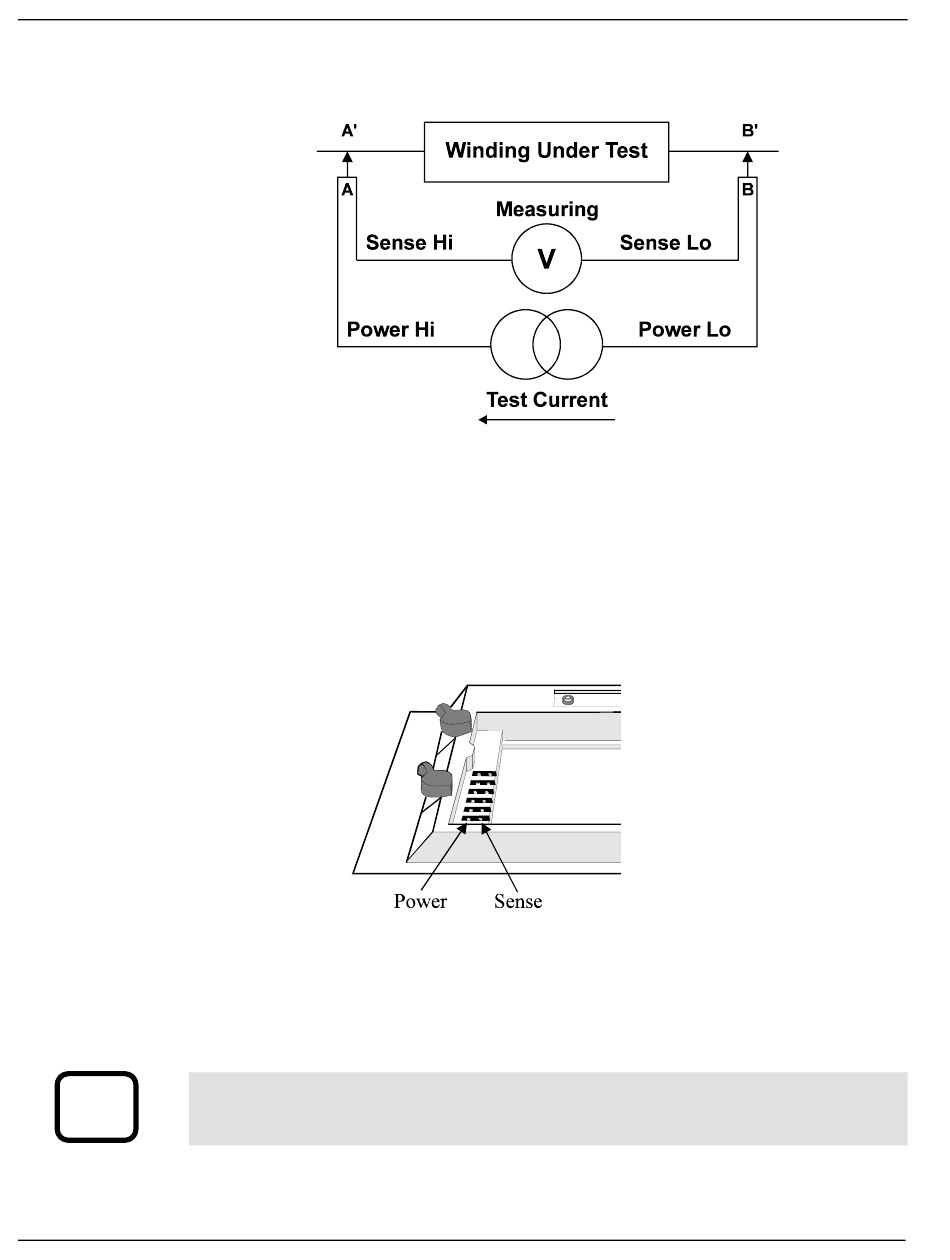

The 'common' lead length is shown as AA' and BB' in the diagram below.
The AT series testers provide all the connections required to take advantage of Kelvin
measurements.
A test node may be considered to be a pair of connections consisting of one power
and one sense terminal.
The following diagram indicates how to identify the node terminal function;
POWER terminals are all on the outside of the fixture area.
SENSE terminals are all on the inside of the fixture area.
IMPORTANT: Kelvin four terminal connections are generally advised to be
i
used in all test fixtures; they are essential for transformers whose winding
resistance's are less then 1Ω.
