Q S T
UICK TART UTORIAL
Initially set up the program options:
You can now move on to create the program:
From the Top Level 'Program' menu, select 'Edit'.
P 2.3.4
AGE
From the top level menu bar select:

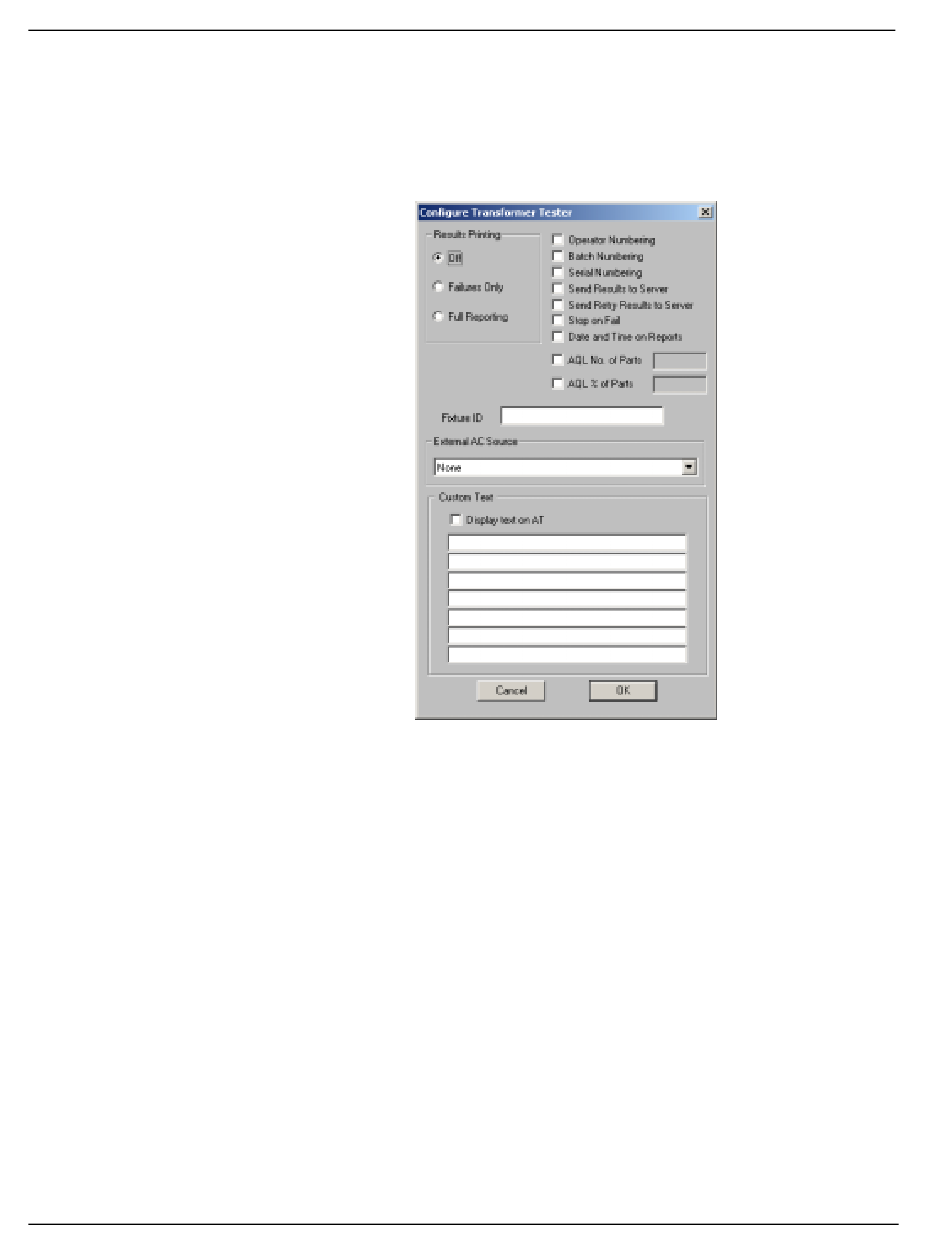

The following dialogue box will appear:
By clicking with the mouse, enable the following option
'Send Results to Server'
In the Fixture ID box, enter the name:
'UNIVERSAL'
Click on 'OK' or press [Return] to accept and close the dialogue box.
The screen will now be made up of three Windows:
Top left: The schematic window showing the two windings.
Right: The available tests window listing all the tests available on your
AT3600. (If the tester is connected all unavailable tests will be
greyed out).
Lower left: The Program window displaying the tests programmed so far.
VPN 98 - 024
V
OLTECH
Program
Options
AT3600 U M
SER ANUAL
G S
ETTING TARTED
