Voltech AT3600 User Manual page 270

M M
EASURE ODE

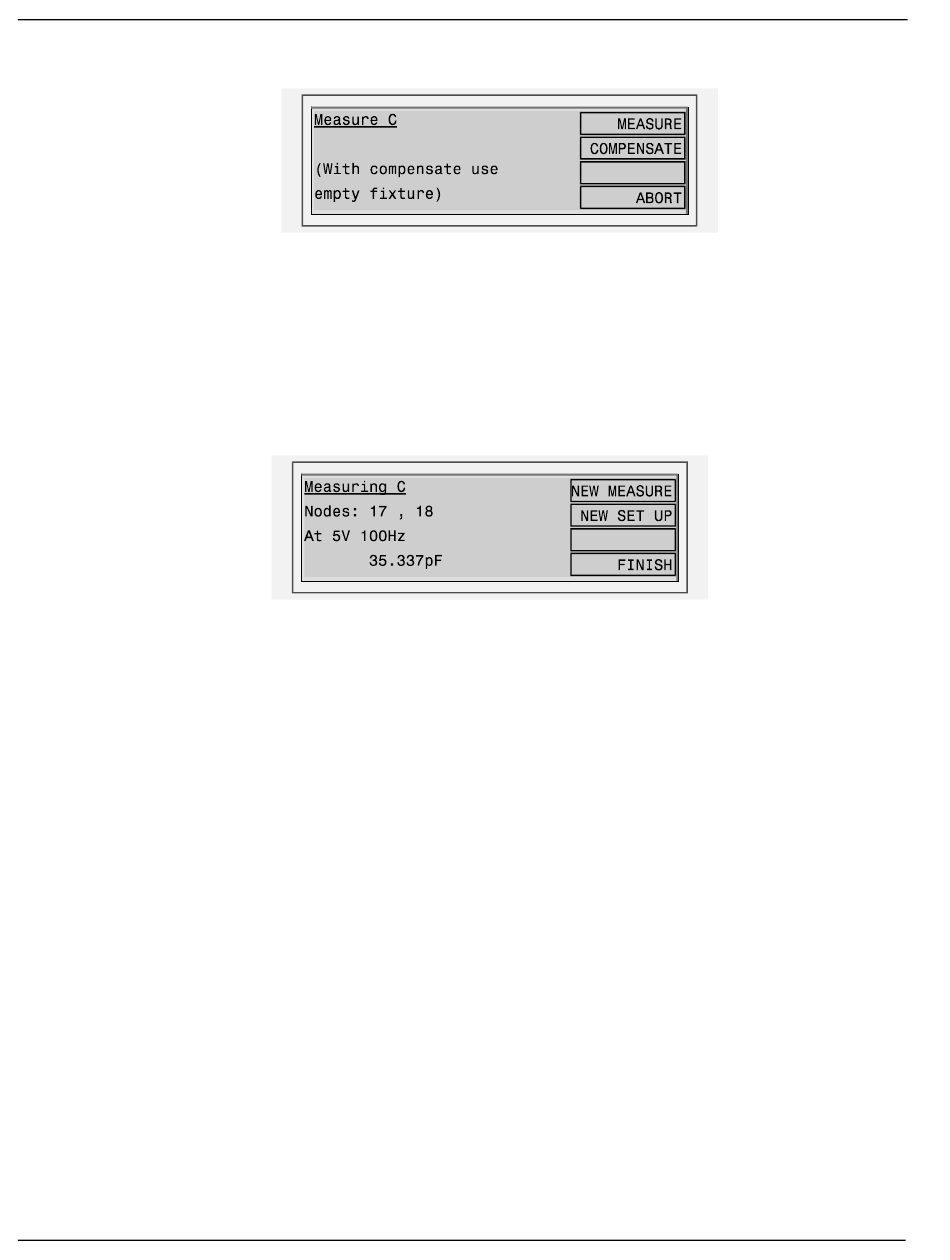

The next display will depend on the particular test. For the 'C Capacitance' test, it is:
If you wish to apply Fixture Compensation to the measurements, ensure that the fixture is
empty, and press the COMPENSATE soft-key. When the Compensation is finished, the
display will return to one similar to the one above, but with the COMPENSATE soft-key
and message omitted. (For some tests there is no COMPENSATE option, and for others
compensation requires the fixture to be fitted with short-circuit links.)
Pressing the MEASURE soft-key will start the measurements.
and the measurements will be continually updated until a key is pressed.
The results are shown with 5 significant figures, in normal engineering notation, with
symbols for the units (Ω, F, H etc.), and with the normal multipliers covering 10 -18 to
10 +18 (a, f, p, n, µ, m, K, M, G, T, P and E).
Pressing NEW MEASURE takes the operator back to the 'Select measurement' display
above. You should do this if you wish to measure a different parameter.
If you wish to simply change the test conditions for the existing measurement, then press
the soft-key NEW SET UP to return to the set up list for the current test.
Pressing FINISH goes back to the top-level display.
Please study chapter 7. 'Tests and test conditions' for help with selecting MEASURE Mode
test parameters.
