Pressing the ABORT soft-key stops the program and allows the operator to discard
the failing component at the earliest opportunity to minimise test times. (The ABORT
is also reported to the server when the program option 'Send retry results to server' is
enabled and printed out, when a results printing option is set.)
After pressing the CONTINUE soft-key, the remaining tests in the program will be
executed. 'Stop on Fail' will remain active, and any subsequent test that also fails
will produce a similar display. At the end of the measurement, the component will be
classed as a 'Fail'.
Pressing the RE-RUN soft-key will re-start the test sequence from the beginning.
Note: You would normally press RE-RUN if the failure was caused by the
3.4. T
If the TRIM test is included in a program, the behaviour in EXECUTE Mode is
similar to the 'Stop on Fail' option described above:
The main difference between this and the 'Stop on fail' display is that the reading on
the fourth line will be continuously updated, allowing adjustments to be made to
bring the test result within limits.
Pressing the ABORT soft-key again stops the program and allows the operator to
throw away a transformer that cannot be adjusted to give a 'Pass' result.
F P O
RONT ANEL PERATION
M
ANUAL
component being incorrectly inserted into the fixture. Unless the option 'Send
retry results to server' is enabled, at this point there will be no data sent back
to the server. Therefore, after you have corrected the mistake, following the
re-run, good transformers will be reported as 'Pass'.
RIM
If the test before the TRIM test produces a 'Pass' result, then the program proceeds
directly to the next test after the TRIM test.

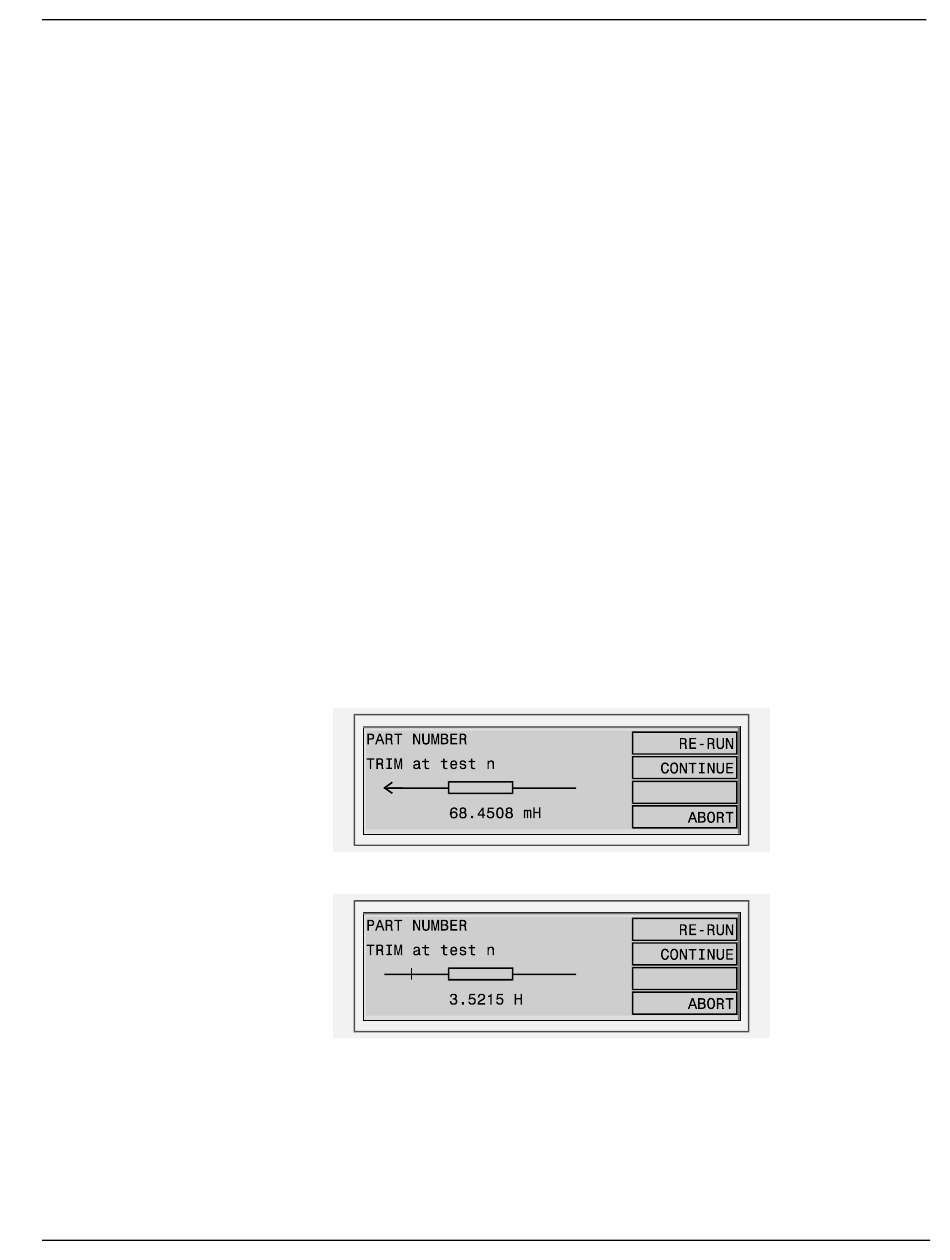

If the test before the TRIM test produces a 'Fail' result, then the front panel display
will be similar to the following:
