Ypical Installation - Voltech AT3600 User Manual

S
AFETY SYSTEMS
3. T I
YPICAL NSTALLATION
The safety system is based on the use of an infrared light curtain as a barrier between
the operator and the dangerously high voltages present on the transformer under test.

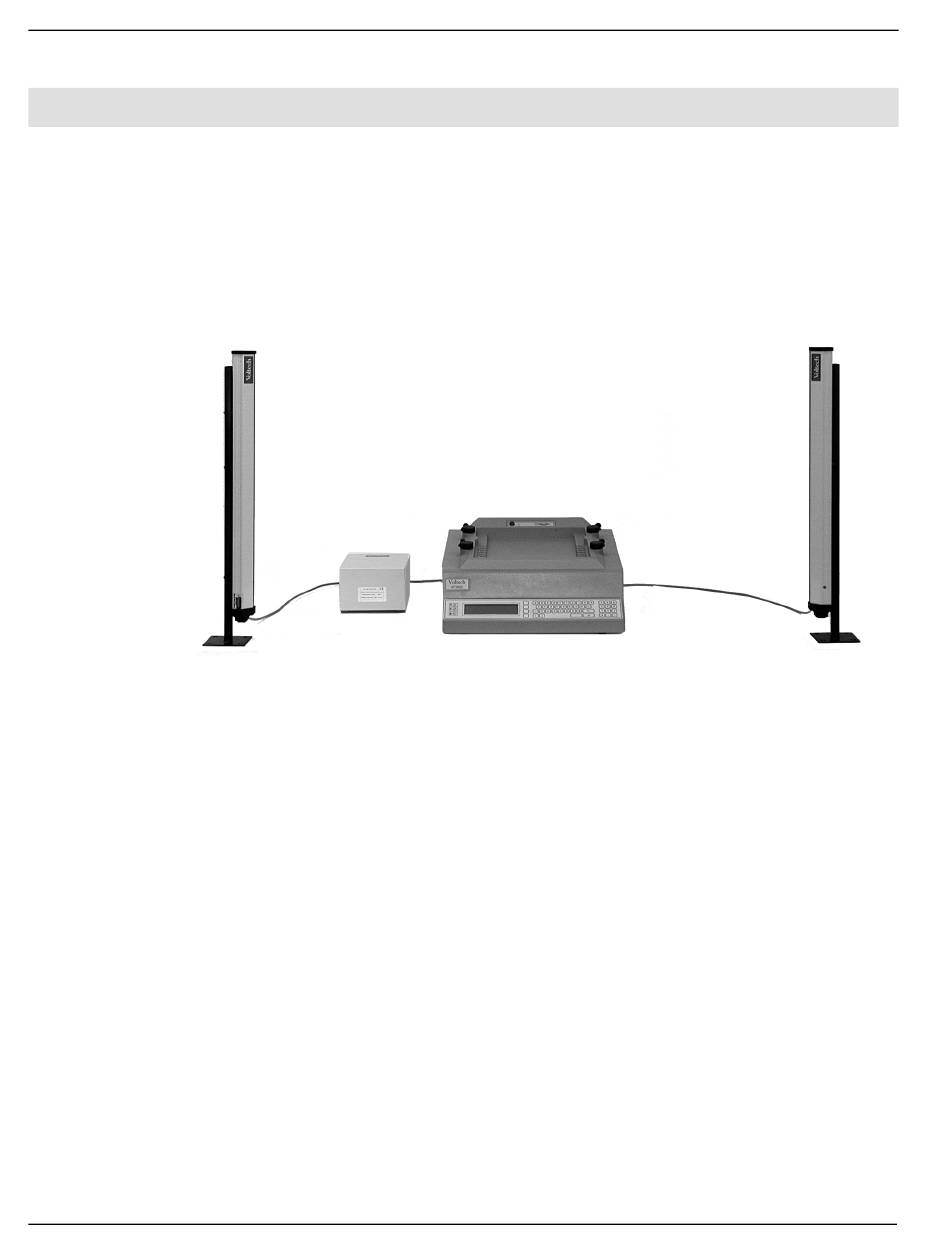

A typical system is shown below:
The light curtain is positioned in front of the tester. It extends well beyond the width of
the tester so that the operator is not impeded when he/she has to load and unload the
transformer under test.
The infrared safety system is housed in three separate modules:
The interconnection between each of the modules is via simple multi-way cables,
which are easy to install.
P 10.8.
AGE
1. A vertical column of transmitters and/or receivers, which form the left-hand
edge of the light curtain.
2. A vertical column of transmitters and/or receivers, which form the right-
hand edge of the light curtain.
3. A control box, containing the power supply circuits, the switching
electronics and the interface to the tester.
