The AT3600 is capable of generating high voltage test signals that could cause
operator injury.
The AT3600 design includes a Safety Interlock connector on the rear panel. The
safety interlocks must be properly connected before any high voltage test is allowed
to execute.
1. For a test situation that only uses low voltage tests, the tester will operate
2. For manual operation, if high voltage tests are required, the Voltech safety
P 1.3.12
AGE
S
PERATOR AFETY
satisfactorily without any safety interlocks. Low voltage tests include:
•
Continuity
•
Winding Resistance
•
Winding Inductance (Series or Parallel)
•
Q Factor
•
Equivalent Resistance (Series or Parallel)
•
Leakage Inductance
•
Interwinding Capacitance
•
Turns Ratio

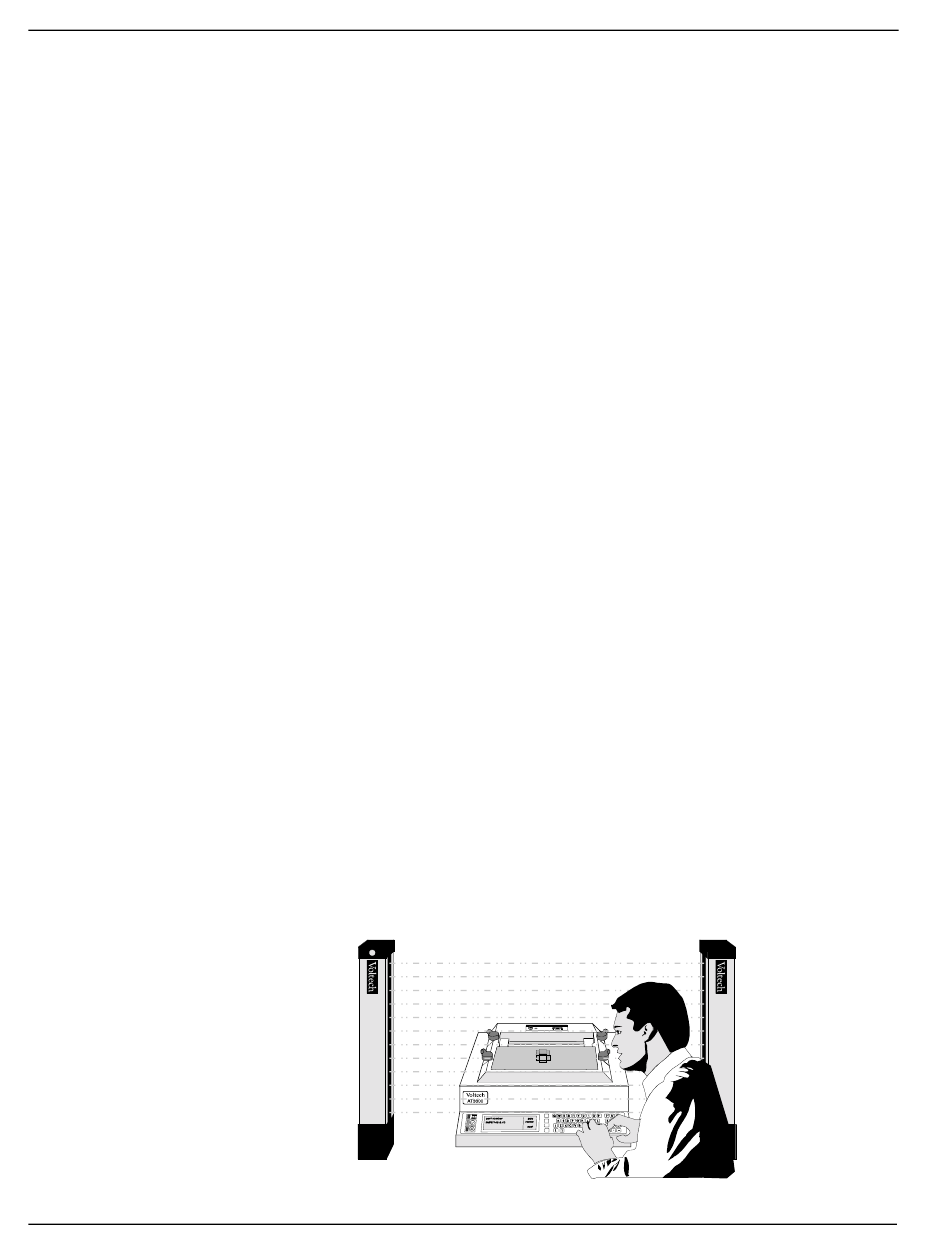

system is recommended. This is based around the use of Infra Red light beams
to provide a safety curtain, and has the advantage of not slowing test throughput.
The following are some of the tests which will not function without a safety
system:
•
Insulation Resistance
•
Magnetizing Current
•
Open Circuit Voltage
•
Hi-Pot (DC) & (AC)
•
Hi-Pot Ramp (DC) & (AC)
