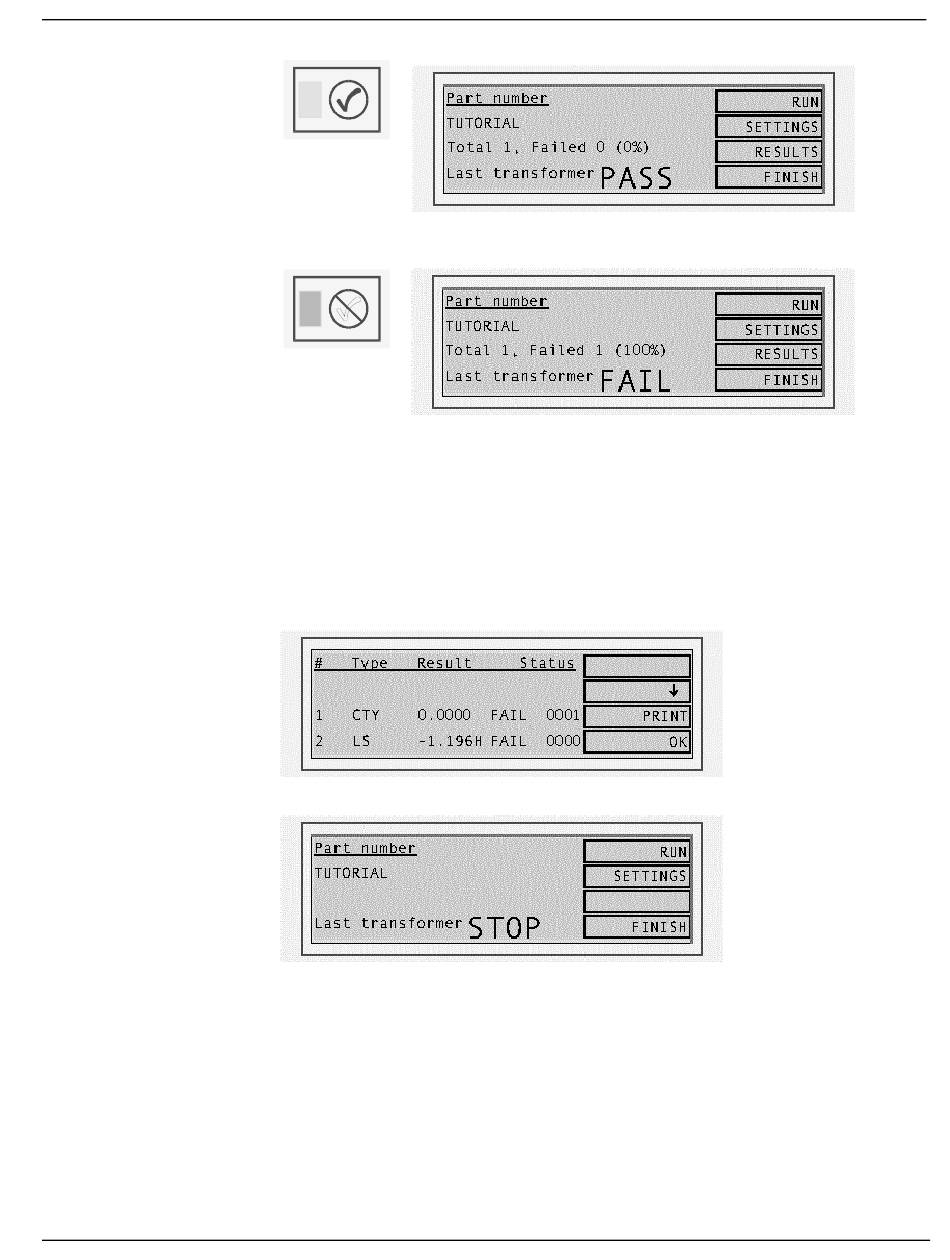

The RUN-FINISH displays seen after a previous component has been tested.
Both the front panel LED's (green = 'Pass' and red = 'Fail') and output lines of the
remote port indicate the test result of the previous transformer, so that it may be
placed in the appropriate 'Pass' or 'Fail' bin.
If enabled, the appropriate test result is now sent back to the Server, and all previous
test results may be reviewed on the results listing screen, which is accessible directly
on the front panel via the RESULTS soft-key (see below).
c)
The RUN-FINISH display seen after measurement of the previous component was
halted using the STOP soft-key, or the STOP input of the remote port.
At this display, all LED's will be off, and no results will be reported back to the
server.
