CATx Cable

The CATx connection cable (CAT5/5e/6/6a/7) between the LAN and the PWR-RMT-RBT-C13 must be terminated with RJ45
connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below.
Pin Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at
information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
Pair
2
2
3
1
1
3
4
4
30
Pair 3
Pair 2 Pair 1
Pair 4
T
T R R R
T R T
1 2 3 4 8
5 6 7
+ - +
- + -
+ -
(View Looking into RJ45 Socket)

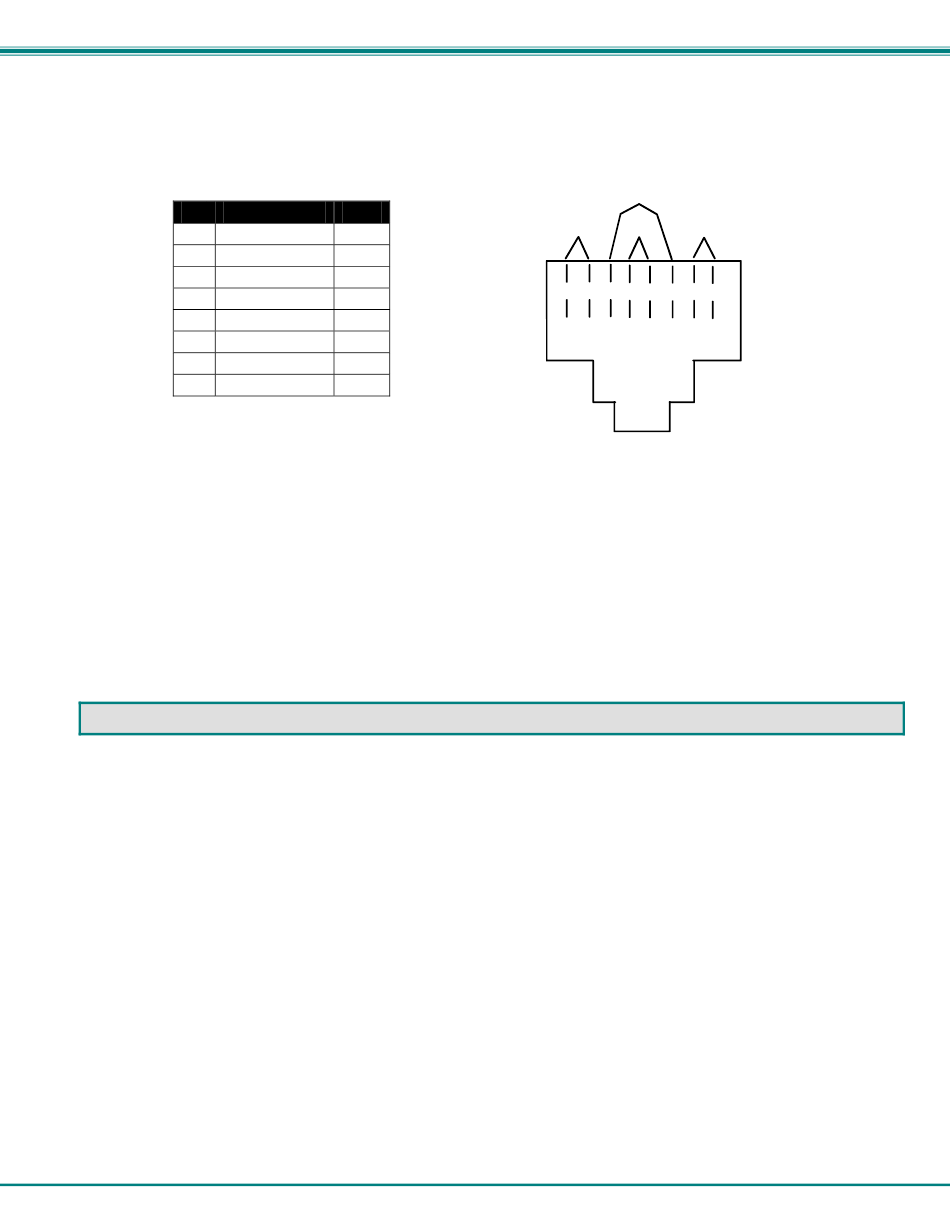

Figure 25- CATx wiring method
