NTI ENVIROMUX Series Instruction Manual

Temperature/humidity sensor
Hide thumbs Also See for ENVIROMUX Series:
Table of Contents

Advertisement

Quick Links

Download this manual

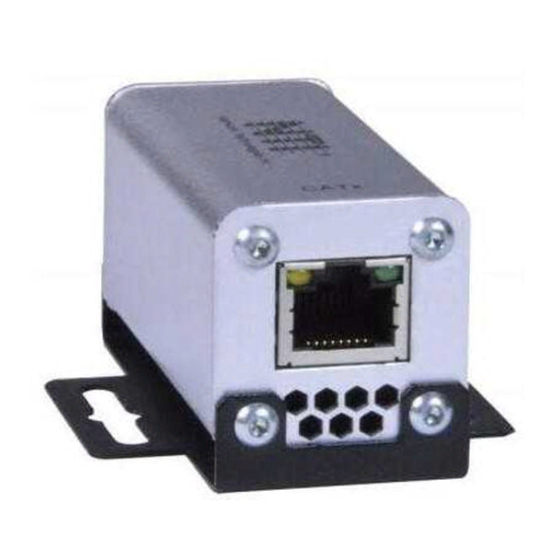

Temperature/Humidity Sensor Installation
E-STSM-E7, STHSM-E7
Temperature/Humidity Sensors
E-PLSD
Programmable LED Sensor
Display
ENVIROMUX
Manual
E-STHS-LSH
Low Self-Heating
Temperature/Humidity Sensor
®
Series
E-STHS-LCDW
Temperature/Humidity Sensor w/LCD Display
E-STHSB
Temperature/Humidity Sensor
MAN215
Rev Date 7/26/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENVIROMUX Series and is the answer not in the manual?

Questions and answers

Related Manuals for NTI ENVIROMUX Series

Summary of Contents for NTI ENVIROMUX Series

  • Page 1 ® ENVIROMUX Series Temperature/Humidity Sensor Installation Manual E-STHS-LCDW E-STSM-E7, STHSM-E7 Temperature/Humidity Sensor w/LCD Display Temperature/Humidity Sensors E-STHSB Temperature/Humidity Sensor E-PLSD Programmable LED Sensor Display E-STHS-LSH Low Self-Heating Temperature/Humidity Sensor MAN215 Rev Date 7/26/2021...

  • Page 2: Table Of Contents

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT TABLE OF CONTENTS Introduction..................................1 Mounting..................................1 E-STHS-LCDW................................2 Mounting Instruction ..............................3 Connect Sensors................................4 RJ45 Sensors ................................4 E-STHS-LCDW ................................. 5 E-PLSD ..................................8 RJ45 Sensor Cable..............................17 TABLE OF FIGURES Figure 1- Keyhole slot for standard mounting ............................ 1 Figure 2- DIN rail clip ..................................

  • Page 3: Introduction

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT INTRODUCTION Many different sensors can be connected to the ENVIROMUX Series Enterprise Environment Monitoring Systems. Series models covered by this manual include ENVIROMUX-SEMS-16U and E-16D/5D/2D. A complete listing of available sensors and accessories can be found at http://www.networktechinc.com/enviro-rems.html...

  • Page 4: E-Sths-Lcdw

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT E-STHS-LCDW The E-STHS-LCDW is a Temperature and Humidity sensor built into a large wall-mount LCD display with 2” character height for easy viewing from a distance. There are two key-hole slots on the back, 4-1/2” apart, for hanging the sensor on the wall. A template has been provided to make placement and hardware location easy.

  • Page 5: Mounting Instruction

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Template for easy mounting the E-STHS-LCDW Mounting Instruction Using Side Brackets 1. Mount one side bracket to each side of the sensor with the screws provided. 2. Position sensor and mark top of keyholes. 3. Drill two 3/16” diameter holes where top of keyholes were marked.

  • Page 6: Connect Sensors

    The various temperature and humidity sensor models offered by NTI have varying ranges of performance capabilities, as indicated in the table on page 14. Be sure to match the sensor installed to the operating range of the environment it will be expected to work in. Using a sensor outside of its intended temperature range may result in damage to the sensor.

  • Page 7: E-Sths-Lcdw

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT E-xD firmware version 2.31 or later is required to support this sensor. E-STHS-LCDW The E-STHS-LCDW is a temperature/humidity sensor with built-in LCD display that has 2” tall characters for easy viewing from greater distances. . It has a temperature range of -4 to 140°F (-20 to 60°C) ±0.7°F (±0.4°C) and will sense 0 to 90% relative humidity ±4% RH (30°C).

  • Page 8: Figure 6- Catx Cable Connection

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Note: The CATx cable from the E-STHS-LCDW to the E-xD cannot exceed 150ft. If longer than 150 foot cable is used, the MODE button will not function when the backlighting is ON Figure 6- CATx cable connection The cable from the ENVIROMUX will attach to the sensor at the RJ45 port on the bottom of the E-STHS-LCDW.

  • Page 9: Figure 7- Select Which Sensor To Display In Lcd

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Figure 7- Select which sensor to display in LCD...

  • Page 10: E-Plsd

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT E-PLSD The E-PLSD is a programmable LED Sensor Display with 2" tall status display characters to show the sensor value and 0.68" characters to indicate which sensor data is being displayed and the unit of measure. It includes three touch-sensitive buttons.

  • Page 11: Figure 10- Bottom View Of E-Plsd

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT There are three connection ports on the bottom of the E-PLSD. One for power connection, another for CATx cable connection to the E-xD RJ45 Sensor port (up to 1000 feet long using 24AWG cable), and a third for an additional E-TRHM-E7 Temperature, Humidity and Dewpoint sensor (optional) that will be recognized by the E-xD as soon as it is connected.

  • Page 12: Figure 12- Configuration Options For E-Plsd

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Data from all of the sensors connected to the E-xD can be selected for display by the E-PLSD. Figure 12- Configuration options for E-PLSD The Description can be changed to anything you like. This will be the E-PLSD Description as displayed in the E-xD monitoring list.

  • Page 13: Figure 13- Assign Name To Be Displayed In E-Plsd

    NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Figure 13- Assign name to be displayed in E-PLSD If you select Scan Sensors in Alert, only sensors from the Current Scan List that are in alert will be displayed (yellow or red characters). If no sensors are in alert, all sensors will be scanned (green characters).
  • Page 14 NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT E-STS-O/-IP67 Outdoor Temperature Sensor Cable Restraint Assembly Procedure The E-STS-O and E-STS-IP67 Outdoor Temperature Sensor includes a water-tight cable restraint to be applied to the Cat5/5e/6/6a shielded cable to be used to connect the sensor to an unit.
  • Page 15 NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT 5. Make certain that the seal ring is fully-seated into the housing. THIS STEP IS EXTREMELY IMPORTANT TO ENSURE A WATER-TIGHT SEAL! Seal ring fully-seated Seal ring fully-seated 6. Plug the assembly into the socket on the E-STS-O and secure the screw nut.
  • Page 16 NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Mounting To mount the E-STS-O, two brackets have been provided that are each secured with a screw (provided). Install each bracket with the raised ridge towards the front of the sensor, so that the bracket sits flat and squarely against the sensor case.
  • Page 17 They are not designed to be re-calibrated. In the event you want the calibration of your sensor to be checked, please contact NTI for an RMA to return your sensor. Sensor accuracy will be checked for a nominal charge. Sensors within warranty that are found to be out of factory specification will be repaired or replaced at no additional charge.
  • Page 18 NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT Accuracy The reported accuracy of these sensors is based on an environment of moving air. In a stagnant air environment, the sensor may read higher than actual temperature. Coverage The coverage area for temperature/humidity sensors cannot be specified as there are too many variables that can affect the range in a sensor's environment.

  • Page 19: Rj45 Sensor Cable

    (View Looking into RJ45 Socket) TRADEMARK ENVIROMUX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners.

This manual is also suitable for:

E-stsm-e7Sthsm-e7E-plsdE-sths-lcdwE-sthsbE-sths-lsh
