NTI ENVIROMUX Series Quick Installation Manual

E-MICRO-TRH(P)
Quick Installation Guide

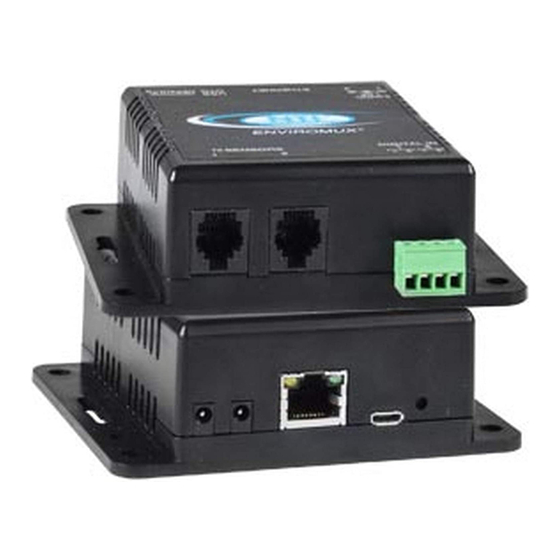

The ENVIROMUX® Micro Server Environment Monitoring System
environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor
goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP),
and/or SMS messages (via external USB 3G modem).
The E-MICRO-TRHP features a built-in temperature/humidity sensor, two RJ45 sensor ports for external temperature sensors,
two dry contact inputs for the
model is E-MICRO-TRH.)
Installation
1. Mount the ENVIROMUX as desired.
for your mounting method of choice.
2. Connect each of the sensors (purchased separately) to the ENVIROMUX. Mount the sensors where they are needed.
A. Connect Temperature sensors to the RJ45 ports on the ENVIROMUX.
B. Connect contact sensors (i.e. E-GBS-P glass break sensor, E-SDS-PA smoke detection sensor, E-LD water detection
sensor and others) to the terminal blocks labeled "DIGITAL IN". Connect each two-wire contact sensor using 16-26
AWG wire.
3. Connect the ENVIROMUX to the Ethernet for maximum remote system management using the "Ethernet" port and
CAT5/5e/6 patch cable.
4. Connect the AC adapter (required for E-MICRO-TRH model only).
connection of contact-closure sensors
Mount the ENVIROMUX to the wall or within in a rack. Use hardware appropriate
ENVIROMUX
(ENVIROMUX) monitors (from a remote location) critical
and built-in Power over Ethernet (PoE). (Without the PoE, the
®
Series
