NTI Power Remote Rebooter with C13 Connection

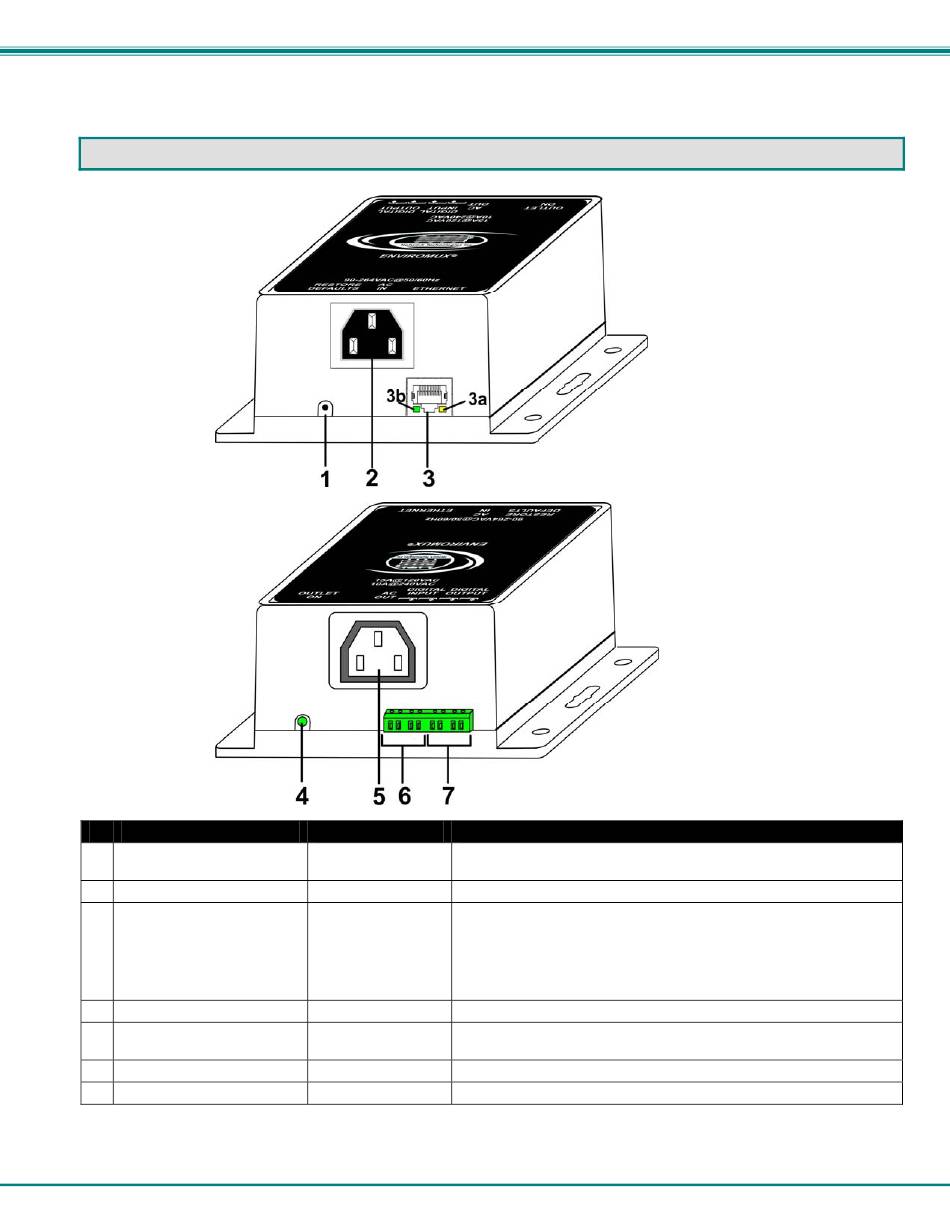

CONNECTORS AND LEDS

# LABEL
1 RESTORE DEFAULTS
2 AC IN
3 ETHERNET
4 OUTLET ON
5 AC OUT
6 DIGITAL IN 1-2
7 DIGITAL OUT 1-2
CONNECTOR/LED DESCRIPTION
Button For manually resetting the PWR-RMT-RBT-C13 to default settings-
press and hold for 5 seconds to activate
IEC 320 C14 Plug For connecting a line service cord
RJ45 female For connection to an Ethernet for remote user control and monitoring
connector
 3a-Yellow LED– illuminated when Ethernet link is present,

Green LED Illuminates to indicate when the AC OUT socket is powered ON.
IEC 320 C13 For connecting a cord to power a device
Receptacle
Wire Terminal Block For connecting dry-contact sensors
Wire Terminal Block For connecting output devices
3
blinking indicates activity on the Ethernet port
3b-Green LED - indicates 100Base-T activity when illuminated,
10Base-T activity when dark
