NTI
NETWORK
R
TECHNOLOGIES
INCORPORATED
E-ACLM-P8/12/18-V2
Installation and Operation Manual
E-ACLM-V-V2
(Front and Rear View)
1275 Danner Dr
Tel:330-562-7070
Aurora, OH 44202
Fax:330-562-1999
www.networktechinc.com
ENVIROMUX
E-ACLM-V-V2
AC LINE MONITORS
®
Series
E-ACLM-P12-V2
(Front and Rear View)
MAN021
REV 6/8/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENVIROMUX Series and is the answer not in the manual?

Questions and answers

Related Manuals for NTI ENVIROMUX Series

Summary of Contents for NTI ENVIROMUX Series

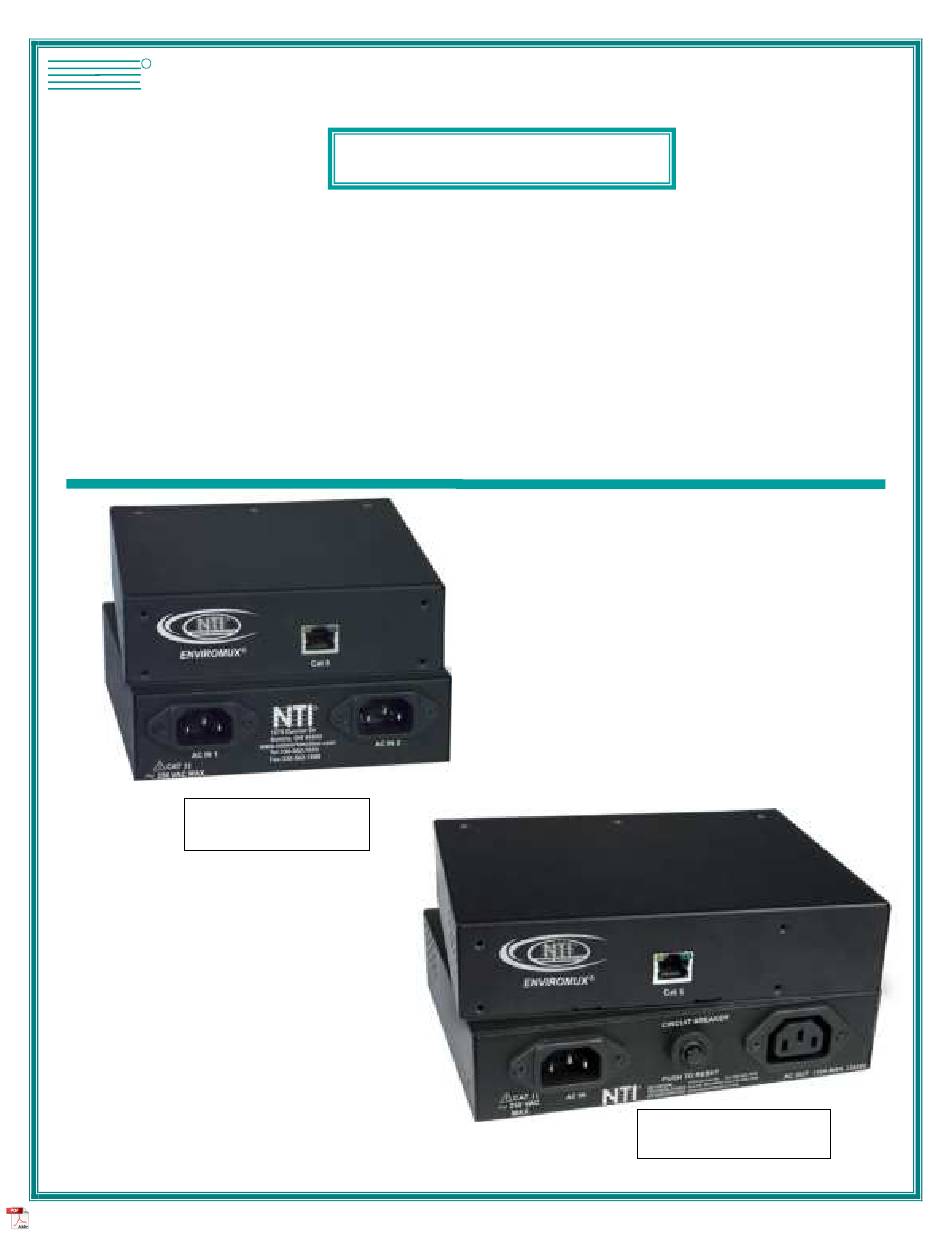

  • Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.networktechinc.com ® ENVIROMUX Series E-ACLM-V-V2 E-ACLM-P8/12/18-V2 AC LINE MONITORS Installation and Operation Manual E-ACLM-V-V2 (Front and Rear View) E-ACLM-P12-V2 (Front and Rear View) MAN021 REV 6/8/21...
  • Page 2 NTI E-ACLM-V/-P AC LINE MONITOR TRADEMARK ENVIROMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2007-2021 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

  • Page 3: Table Of Contents

    NTI E-ACLM-V/-P AC LINE MONITOR TABLE OF CONTENTS MATERIALS ..................................1 INTRODUCTION................................2 E-ACLM-V-V2 ................................2 E-ACLM-Pxx-V2 ................................3 MOUNTING ..................................4 CONNECTIONS................................5 E-ACLM-V-V2 ................................5 Connect Voltage Source(s)............................5 E-ACLM-Pxx-V2 ................................6 Connect Voltage Source and Load........................... 6 Connect Sensor to E-xD ..............................

  • Page 4: Materials

    NTI E-ACLM-V/-P AC LINE MONITOR MATERIALS Materials supplied with E-ACLM-V-V2) or P12/8-V2  NTI E-ACLM-V-V2 or -P8/12-V2  1-Line cord, country specific IEC 320 C13  2- Mounting tabs for Zero-RU mounting (pre-assembled to back of E-ACLM-V or P12/8, see page 4) ...

  • Page 5: Introduction

    NTI E-ACLM-V/-P AC LINE MONITOR INTRODUCTION E-ACLM-V-V2 The E-ACLM-V-V2 (ACLM-V) is a sensor for the E-16D/5D/2D systems (ENVIROMUX) capable of monitoring AC line input voltages and frequencies between 50~250V AC and 47~63Hz from two separate AC lines. It will report the current RMS AC Voltage and AC Frequency (Hertz) to the E-xD.

  • Page 6: E-Aclm-Pxx-V2

    NTI E-ACLM-V/-P AC LINE MONITOR E-ACLM-Pxx-V2 The E-ACLM-P12,-P18 and –P8 (ACLM-P) are triple sensors for the E-16D/5D/2D (ENVIROMUX) capable of monitoring AC line input voltages between 50~250V AC, the Frequency (Hertz) between 47~63Hz, and the Power (Current) up to 12 amperes (for –P12), 8 amperes (for –P8) or 18 amperes (for –P18) from a single AC line.

  • Page 7: Mounting

    NTI E-ACLM-V/-P AC LINE MONITOR The ACLM-P has three sensor pages, each having a numeric display and status bar. One is for power, another is for voltage, and a third for frequency. Each page also displays a table with readings from the most recent data transmission. The power and voltage pages also have running totals for the number of swells, sags, and spike events that have occurred.

  • Page 8: Connections

    NTI E-ACLM-V/-P AC LINE MONITOR CONNECTIONS E-ACLM-V-V2 Connect Voltage Source(s) 1. Connect a voltage source (50-250VAC, 47-63Hz) to the ACLM-V at “AC IN 1”. 2. Connect a second voltage source (50-250VAC, 47-63Hz) to the ACLM-V at “AC IN 2”. Note: The voltage source connected to “AC IN 1” does not need to be the same voltage or frequency as the voltage source connected to “AC IN 2”.

  • Page 9: E-Aclm-Pxx-V2

    NTI E-ACLM-V/-P AC LINE MONITOR E-ACLM-Pxx-V2 Connect Voltage Source and Load 1. Connect a voltage source (50-250VAC, 47-63Hz) to the ACLM-Pxx at “AC IN”. 2. Connect an AC load device to the “AC OUT” that is compatible with the voltage source connected to “AC IN”.

  • Page 10: Connect Sensor To E-Xd

    NTI E-ACLM-V/-P AC LINE MONITOR Connect Sensor to E-xD With the voltage source(s) and load connected to the sensor (as applicable), connect a CAT5/5e/6 cable between the “Cat5” connector on the sensor and one of the “RJ45” sensor ports on the E-xD. This cable can be up to 1,000 feet in length (Exception: This cable is limited to 750 feet (24AWG minimum) for E-ACLM-P18 when connected to E-5D/2D), The pinout for this cable can be found below.

  • Page 11: Use And Operation

    NTI E-ACLM-V/-P AC LINE MONITOR USE AND OPERATION For instruction on how to monitor and use the data provided by the E-ACLM-V / -P Line Monitors, see the ENVIROMUX manual. Most of the features configurable on the E-ACLM-V and -P Line Monitors are common to all sensors and are described in the manual for the ENVIROMUX.

  • Page 12: Figure 8- Configurations Page For Sensors

    NTI E-ACLM-V/-P AC LINE MONITOR A Configure button on the page allows the user to configure parameters of the sensor. Note: Configuration options on this page are similar to those of other ENVIROMUX sensors and are covered at length in the ENVIROMUX manual.

  • Page 13: Figure 9- Configuration For Spike Thresholds

    NTI E-ACLM-V/-P AC LINE MONITOR To configure the spike threshold , click on “Voltage Spike Threshold”. Select the value to use from the dropdown. Options include 50, 250, 500 and 1000 volts. Figure 9- Configuration for Spike Thresholds The E-ACLM-P provides additional configuration to control an internal relay that toggles power ON/OFF to the AC outlet. The...

  • Page 14: Power Relay Sensor

    NTI E-ACLM-V/-P AC LINE MONITOR Disconnect Types:  Manually- the user can select/deselect the “Disconnnect” box to power the outlet ON/OFF  Threshold Voltage- control power to the outlet based on minimum and or maximum configurable threshold voltage readings ...

  • Page 15: Technical Specifications

    NTI E-ACLM-V/-P AC LINE MONITOR TECHNICAL SPECIFICATIONS Sensor Performance Specifications AC Inlet (ACLM-V-V2)..............IEC 320 C14 AC Inlet (ACLM-P12/-P8-V2) ............IEC 320 C14 AC Outlet (ACLM-P12/-P8-V2) ............IEC 320 C13 AC Intlet (ACLM-P18-V2)...............IEC 320 C20 AC Outet (ACLM-P18-V2)..............IEC 320 C19 Maximum Spike Threshold ............1kVAC Voltage Range ................50 to 250VAC...

  • Page 16: Troubleshooting

    NTI E-ACLM-V/-P AC LINE MONITOR TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
