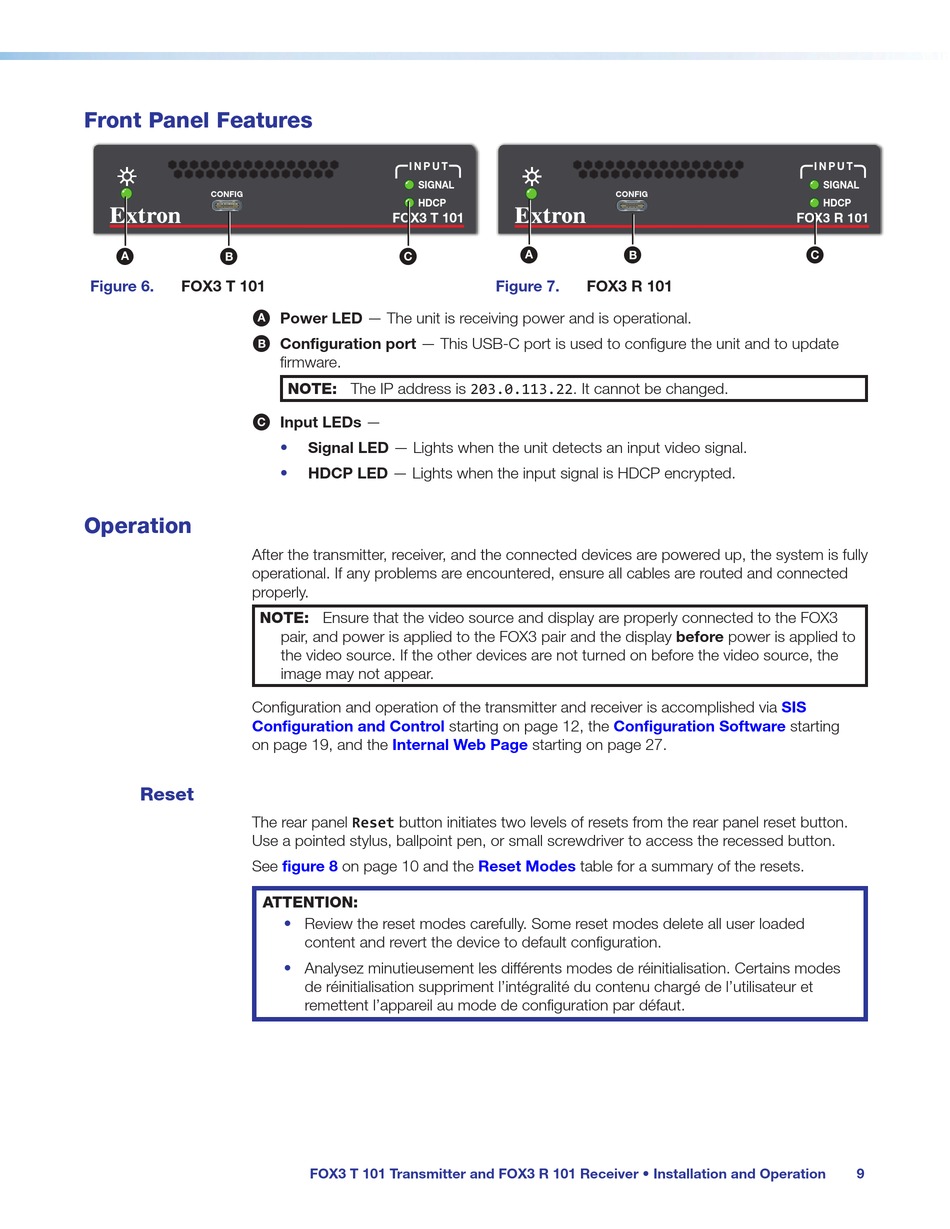

Front Panel Features
CONFIG
e
A
A
A
B
B
B
Figure 6.
FOX3 T 101
A
B
C
Operation
After the transmitter, receiver, and the connected devices are powered up, the system is fully
operational. If any problems are encountered, ensure all cables are routed and connected
properly.
NOTE: Ensure that the video source and display are properly connected to the FOX3
Configuration and operation of the transmitter and receiver is accomplished via
Configuration and Control
on page 19, and the
Reset
The rear panel Reset button initiates two levels of resets from the rear panel reset button.
Use a pointed stylus, ballpoint pen, or small screwdriver to access the recessed button.
See
ATTENTION:
I N P U T
SIGNAL
HDCP
FOX3 T 101
C
C
C
Power LED — The unit is receiving power and is operational.
Configuration port — This USB-C port is used to configure the unit and to update
firmware.
NOTE: The IP address is 203.0.113.22. It cannot be changed.
Input LEDs —
•
Signal LED — Lights when the unit detects an input video signal.
HDCP LED — Lights when the input signal is HDCP encrypted.
•
pair, and power is applied to the FOX3 pair and the display before power is applied to
the video source. If the other devices are not turned on before the video source, the
image may not appear.
starting on page 12, the
Internal Web Page
figure 8
on page 10 and the
•
Review the reset modes carefully. Some reset modes delete all user loaded
content and revert the device to default configuration.
•
Analysez minutieusement les différents modes de réinitialisation. Certains modes
de réinitialisation suppriment l'intégralité du contenu chargé de l'utilisateur et
remettent l'appareil au mode de configuration par défaut.
FOX3 T 101 Transmitter and FOX3 R 101 Receiver • Installation and Operation
CONFIG
e
A
A
A
B
B
B
Figure 7.
FOX3 R 101
Configuration Software
starting on page 27.
Reset Modes
table for a summary of the resets.
I N P U T
SIGNAL
HDCP
FOX3 R 101
C
C
C
SIS
starting
9
