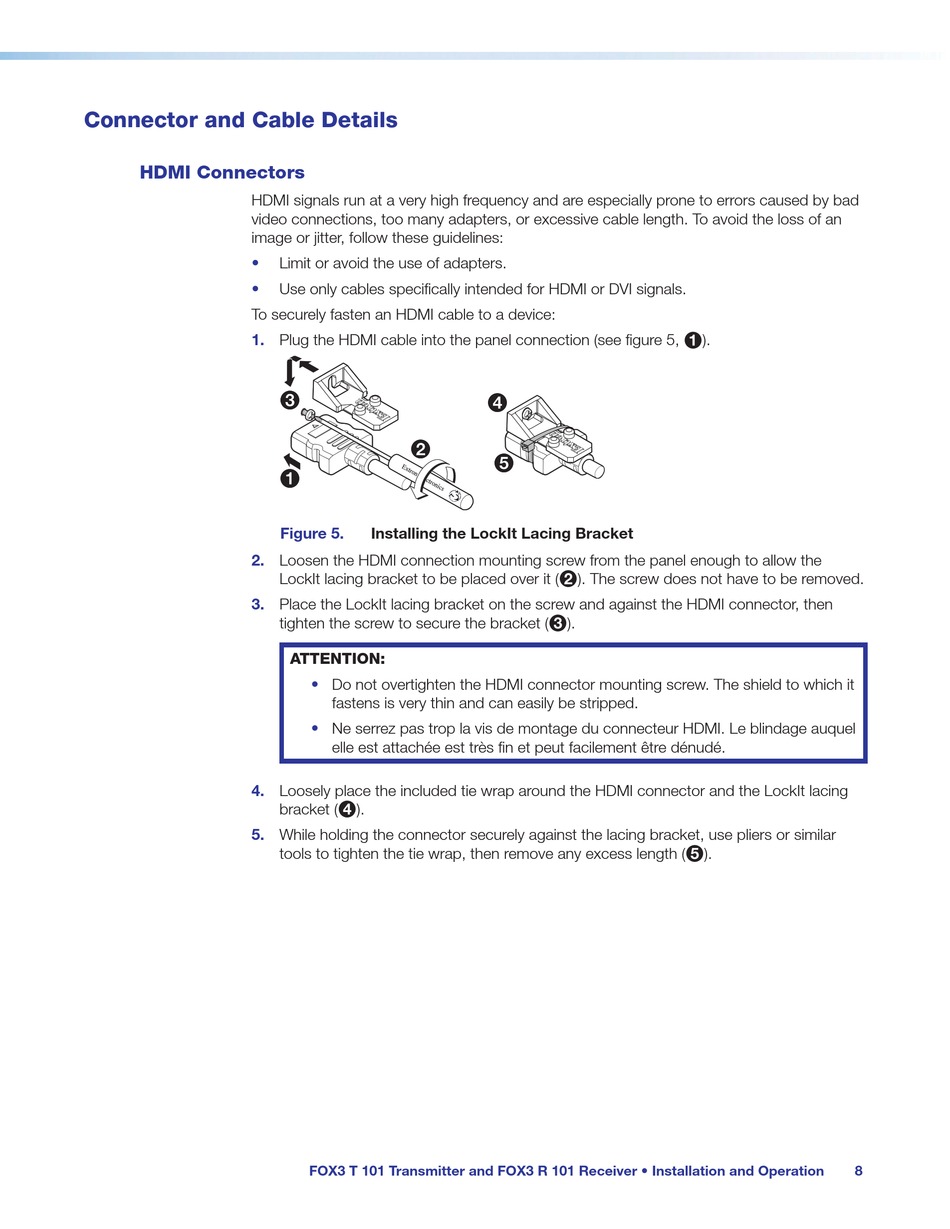

Connector and Cable Details

HDMI Connectors

HDMI signals run at a very high frequency and are especially prone to errors caused by bad
video connections, too many adapters, or excessive cable length. To avoid the loss of an
image or jitter, follow these guidelines:
•
•
To securely fasten an HDMI cable to a device:
1.
2.
3.
4.
5.
Limit or avoid the use of adapters.
Use only cables specifically intended for HDMI or DVI signals.
Plug the HDMI cable into the panel connection (see figure 5,
3 3
2 2
1 1
Figure 5. Installing the LockIt Lacing Bracket
Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it (
Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket (
ATTENTION:
• Do not overtighten the HDMI connector mounting screw. The shield to which it
fastens is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel
elle est attachée est très fin et peut facilement être dénudé.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket ( ).
4
While holding the connector securely against the lacing bracket, use pliers or similar
tools to tighten the tie wrap, then remove any excess length (
FOX3 T 101 Transmitter and FOX3 R 101 Receiver • Installation and Operation
4 4
3
5 5
). The screw does not have to be removed.
2
).
3
).
1
).
5
8
