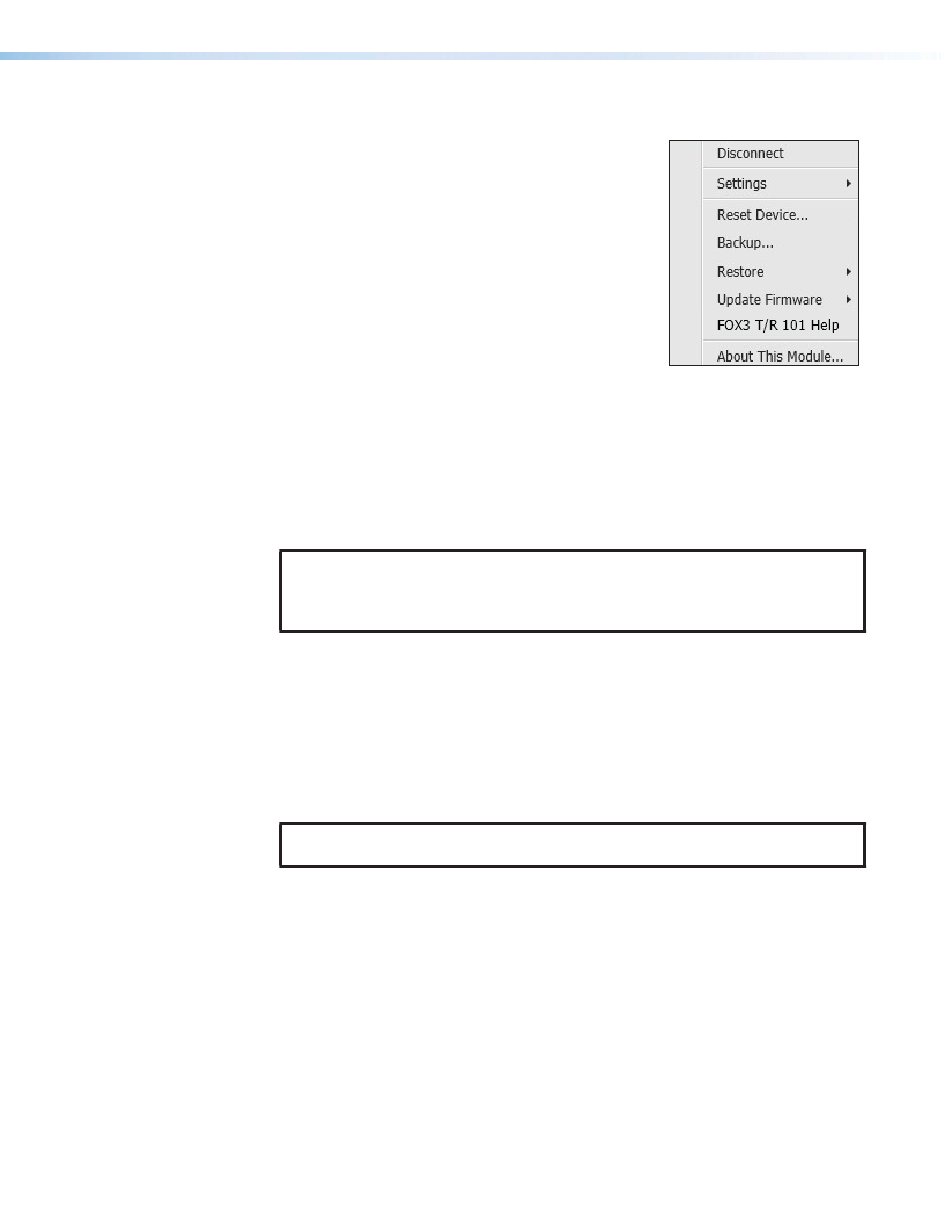

The Device menu contains options pertaining to device
connection, configuration, and information. For details about
all these options, see the FOX3 T 101 and FOX3 R 101 Help
File.
•
Disconnect — Disconnect the device from the PCS
program and close the Device tab.
Settings — Open a submenu with the following
•
options:
Hardware Settings — Display the Hardware
•
Settings dialog box with device information and
side tabs to change the device name, internal clock,
and password of the connected device.
It also contains an Edit Communication Settings button, which provides an
alternative method of accessing the Communication Settings dialog box.
Communication Settings — Open the Communication Settings dialog box to
•
change IP settings of the connected device.
•
Reset Device — Open the Reset Device dialog box, with selectable modes for
resetting the connected device, as well as the Unit Information (also displayed in the
Hardware Settings dialog box).
NOTE: The factory configured passwords for all accounts on this device have
been set to the device serial number. In the event of a complete system reset, the
passwords convert to the default, which is extron (see
page 30 to change a password).
•
Backup — Export all audio, video, and communication settings of the connected
device to the PC. This exported configuration can be saved as a backup file (with a
.extz extension), or used to replicate settings from one device to other devices of the
same model. When restoring a configuration, select specific device settings.
•
Restore this Device — Upload a saved configuration for a FOX3 device to the
connected device.
•
Update Firmware — Open a submenu to upload firmware from the host device to the
connected device or to multiple devices. Upload firmware from the host device to the
connected device
NOTE: If necessary, download new firmware from the Extron website (see
Software/Firmware Installation
FOX3 T 101/FOX3 R 101 Help — Open the FOX3 T 101 and FOX3 R 101 Help File in
•
a separate window.
About This Module — Open the About This Module dialog box, with the module part
•
number and firmware version of the connected device.
FOX3 T 101 Transmitter and FOX3 R 101 Receiver • Configuration Software
