Operation
This section contains information for front panel operation and configuration of the
XTP R HWP 201. Topics in this section include:
•
•
•
•
•
After all transmitters, all receivers, and their connected devices are powered up, the system
is fully operational. If any problems are encountered, verify that the cables are routed and
connected properly. If problems persist, call the Extron S3 Sales & Technical Support
Hotline. See the
office.

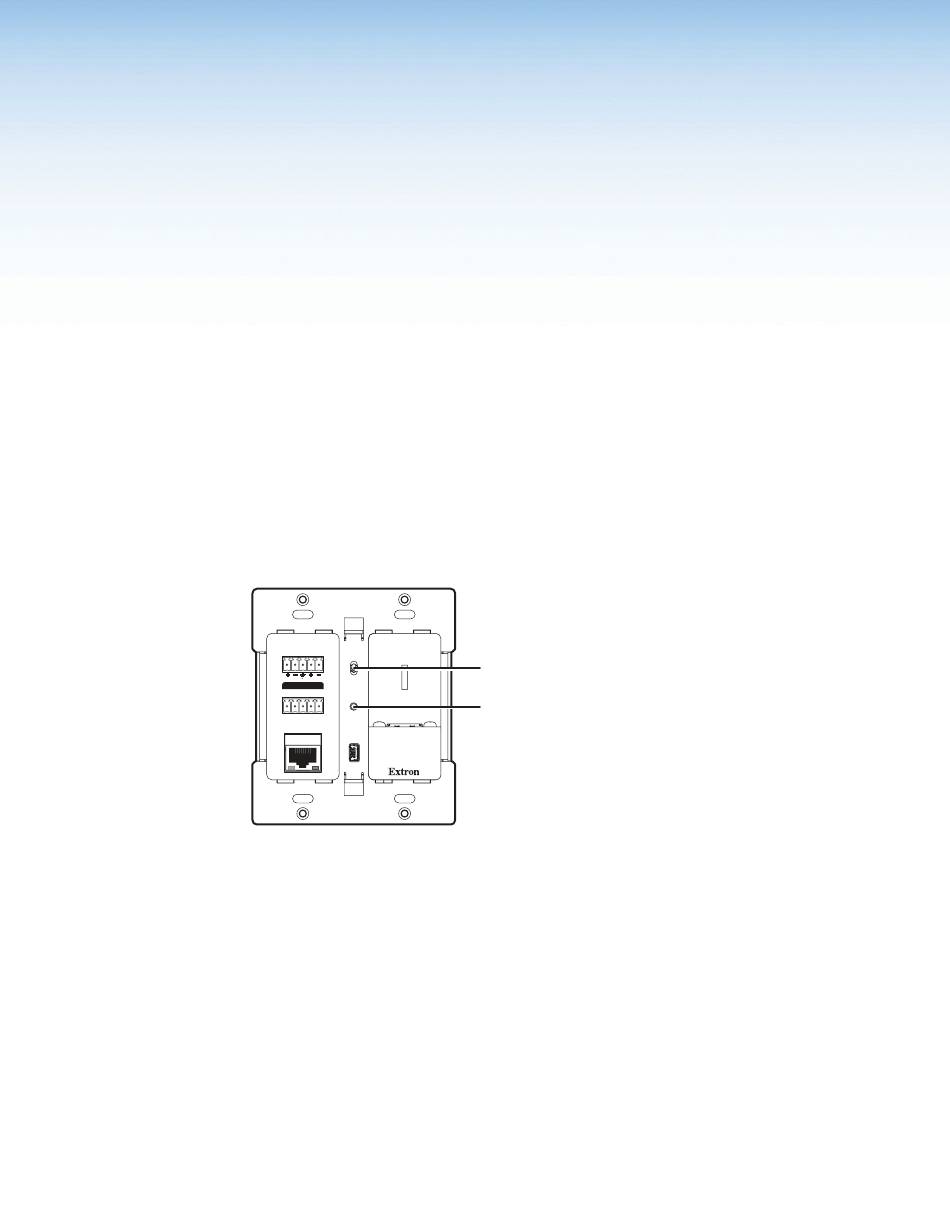

Front Panel Features
A
B
Figure 14.
HDMI Audio Switch
The XTP R HWP 201 has an HDMI audio switch (see figure 14,
the embedded audio on the HDMI output connector. If necessary, remove the wallplate to
access the switch.
Move and hold the front panel HDMI audio switch up (on) for about 1 second to enable
embedded audio on the associated HDMI connector, or move and hold the HDMI audio
switch down (off) for about 1 second to disable embedded audio on the associated HDMI
connector. The switch returns to the middle position after it has been released so the device
can continue to be controlled through SIS commands.
Front Panel Features
HDMI Audio Switch
Audio Output Overview
Reset Modes
Side Panel Indicators
contact numbers
AUDIO
L
R
HDMI
AUDIO
ON
OFF
OVER XTP
RS-232
IR
RESET
Tx
Rx
G
Tx Rx
LAN
HDMI OUT
CONFIG
HDMI audio switch
Reset button
Front Panel Features
on the last page of this guide for the nearest Extron
A
B
XTP R HWP 201 Wallplate Receiver • Operation
A
) that mutes or enables
17
