JW Smart Tune
Operation Manual
Ver. 6.1

Advertisement

Table of Contents
loading

Related Manuals for decon JW Smart Tune

Summary of Contents for decon JW Smart Tune

  • Page 1 JW Smart Tune Operation Manual Ver. 6.1...

  • Page 2: Table Of Contents

    CONTENTS 1 Introduction ................3 2 Installing and Uninstalling JW Smart Tune ......4 2.1 Compatible Operating Systems ............... 4 2.2 License Agreement ..................4 2.3 Installation ....................... 8 2.4 Uninstallation ....................11 3 Common Operations ............12 3.1 Connecting to the Wheelchair ................

  • Page 3: Introduction

    This manual describes how to use JW Smart Tune and is intended for sales agents and professionals who work with assistive technology, such as doctors, physical therapists, and occupational therapists.

  • Page 4: Installing And Uninstalling Jw Smart Tune

    2 Installing and Uninstalling JW Smart Tune 2 Installing and Uninstalling JW Smart Tune Compatible Operating Systems The operating systems compatible with this application are as follows: Windows 8.1, 32-bit Windows 8.1, 64-bit Windows 10, 32-bit Windows 10, 64-bit Windows 11, 64-bit License Agreement Installation and use of this product require acceptance of the terms of the License Agreement.
  • Page 5 2 Installing and Uninstalling JW Smart Tune RESTRICTIONS (A) No Reproduction. You may not copy, reproduce, or translate the Software Product or any portion thereof, whether directly or indirectly. No Modification. You may not decompile, disassemble, reverse engineer, or otherwise modify or alter, by any means whatsoever, the Software Product.
  • Page 6 2 Installing and Uninstalling JW Smart Tune YAMAHA PROVIDES THE SOFTWARE PRODUCT AS IS AND WITH ALL FAULTS, AND HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS, EITHER EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES, DUTIES, OR CONDITIONS...
  • Page 7 2 Installing and Uninstalling JW Smart Tune (E) Arbitration. Any disputes, controversies, and/or difficulties that may arise between the parties out of or in connection with this Agreement shall be settled amicably between the parties. In the event such amicable settlement cannot be reached within a reasonable time, such dispute shall be determined by arbitration to be held in Tokyo, Japan by the Japan Commercial Arbitration Association pursuant to its arbitration rules.

  • Page 8: Installation

    2 Installing and Uninstalling JW Smart Tune Installation Depending on the settings of your PC, a [User Account Control] dialog box may appear when installing or uninstalling the application. Proceeding with the installation or uninstallation will not cause any problems. Select [Yes] to continue.
  • Page 9 2 Installing and Uninstalling JW Smart Tune The screen for entering user information will appear. In the [Serial Number] field, enter the following serial number: • t5p-58255-36286 (for making adjustments to both the Joystick model and the Servo model) • t5p-58255-3628c (for making adjustments to the Servo model only) The name in the [Name] field is entered by default.
  • Page 10 Be sure to read the contents of the License Agreement. If you agree with the terms and would like to install the driver, select [I Agree] and then [Next]. Once the finish screen appears, driver installation is complete. A “JW Smart Tune” shortcut icon should have been created on your desktop.

  • Page 11: Uninstallation

    Once the progress window closes, application uninstallation is complete. The folder where the application is installed (default setting: C:\Program Files\ YamahaMotor\JW Smart Tune) may remain undeleted if it is open during uninstallation. When uninstalling the application, be sure to first close the application, settings file, folder, etc.

  • Page 12: Common Operations

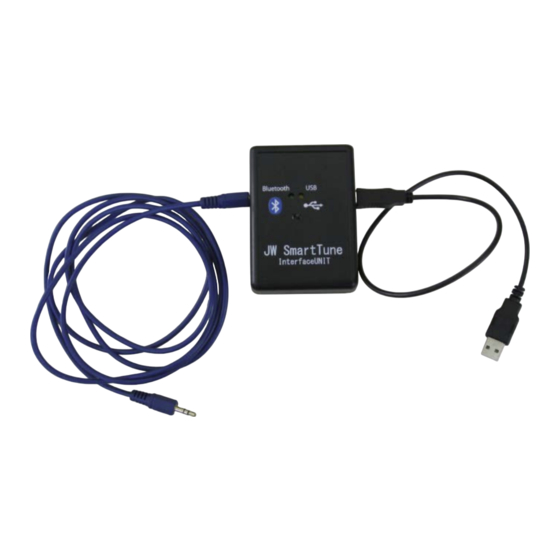

    JW Smart Tune Dedicated Cable Set (for both USB and Bluetooth) 3.1.2 USB Connection Connect the communication cable (black) to the USB port on your PC and to the JW Smart Tune Interface UNIT, and set the Interface UNIT switch to USB (right side). Switch on the USB Side...
  • Page 13 Joystick model Servo model 3 Common Operations 3.1.3 Bluetooth Connection (Pairing) To connect (pair) via Bluetooth, your PC must support Bluetooth or its settings should allow use of a Bluetooth adapter. For PC and Bluetooth adapter settings and usage, refer to the user manuals of your PC and Bluetooth adapter.
  • Page 14 Joystick model Servo model 3 Common Operations 3.1.4 Connecting to the Wheelchair Verify whether the wheelchair is in the following state: • The parking brake is applied. • There is sufficient battery power remaining. • The power is ON. Connect the communication cable (blue) to the Interface UNIT and to the wheelchair.

  • Page 15: Starting The Application

    Joystick model Servo model 3 Common Operations Starting the Application Run the JW Smart Tune shortcut icon on your desktop, or select [YamahaMotor] > [JW Smart Tune] > [JWSmartTune.exe] from the [Start] menu. Shortcut icon Start menu The Title screen will appear, followed by the Model Menu screen.

  • Page 16: Version

    Version Selecting [Version] from the menu bar of each window allows you to check the version information of the JW Smart Tune application. Exiting the Application Selecting [File] > [Exit] from the menu bar of each window or pressing the Close button on the upper right area displays an exit confirmation message.

  • Page 17: Operating Joystick Model

    Joystick model 4 Operating Joystick model 4 Operating Joystick model Selecting a Menu On the Model Menu screen, select [1. Joystick model] to display the Main Menu screen. 1 Driving Parameters Window This window allows you to check the information of the electrically powered unit in the wheelchair, and change parameters related to driving characteristics and joystick operation.

  • Page 18: Setting The Communication Port

    4 Operating Joystick model Setting the Communication Port In the default settings of JW Smart Tune, once the menu window starts, the confirmation window is displayed for automatic reading of the wheelchair’s data, and a connection is established. To disable reading on startup, go to [Communication] and uncheck [Auto-read the wheelchair driving parameters when ST connected].
  • Page 19 Joystick model 4 Operating Joystick model [Line status] indicates the connection status with the wheelchair. If the display is blue, connection was successful. Connection not checked White Disconnected (no response from wheelchair) Connected (communicating with wheelchair) Blue Busy (response from wheelchair, but cannot connect with application) Orange When [Communication] >...

  • Page 20: Changing The Settings

    Joystick model 4 Operating Joystick model Changing the Settings After selecting a menu, load the setting data of the wheelchair using the icon or the menu bar, with the line status displayed in blue (connected). Skip steps 1 and 2 if a connection is established and reading is performed on window startup.
  • Page 21 Joystick model 4 Operating Joystick model Either change the settings or parameter values displayed on the screen or recall the setting data saved in your PC. P.24 “4.4.2 Recalling Setting Data” Write the setting data displayed on the screen to the wheelchair using the icon or the menu bar.
  • Page 22 Joystick model 4 Operating Joystick model When the manufacturing serial number of the propulsion controller in the data to be written differs from the manufacturing serial number of the propulsion controller of the connected wheelchair due to use of data set using another wheelchair or the like, a confirmation message appears.

  • Page 23: Saving And Recalling Setting Data

    Joystick model 4 Operating Joystick model Saving and Recalling Setting Data 4.4.1 Saving Setting Data You can save the basic information, parameter values, and various settings displayed on each window to your PC. From the menu bar, select [File] > [Save As] to open the Save window. The [Save to PC] icon functions as [Save].
  • Page 24 The data type is differentiated by the suffix. Select a file in accordance with the screen you are operating. P.23 “4.4.1 Saving Setting Data” In Ver. 5.0 and later versions of JW Smart Tune, the Functional Parameters window and the Driving Parameters window in versions prior to Ver. 5.0 are integrated as one in the Driving Parameters window.

  • Page 25: Driving Parameters Window

    Joystick model 4 Operating Joystick model Driving Parameters Window 4.5.1 Tabs and Icons 1 [Basic information] Tab Switches to the tab where the wheelchair’s information can be checked. 2 [Functional Parameters] Tab Switches to the tab where the settings of functional parameters such as Auto-power-off time, buzzer, and Screen brightness can be changed.
  • Page 26 Joystick model 4 Operating Joystick model  [Print] Icon This icon opens the print preview of the set parameter values. P.39 “4.8.1 Driving Parameters Window: Settings” The same operation can be performed by selecting [File] > [Print] from the menu bar.  [Line status] Display This display indicates the line status of the wheelchair by color.
  • Page 27 Joystick model 4 Operating Joystick model 4.5.3 Function Parameters 1 [Auto-power-off time] This sets the time until the power is automatically turned off after the last joystick operation. When set to [Disable Auto-power-off], the power does not automatically turn off. 2 Buzzer This turns ON and OFF the operation sounds emitted when the propulsion controller is turned ON and when the speed is switched, as well as the sounds emitted by the buzzer when the...
  • Page 28 Joystick model 4 Operating Joystick model 6 Battery residual capacity indication This sets the pattern for the remaining battery life displayed in the propulsion controller. • For black lithium ion batteries and black nickel-hydrogen batteries with label on bottom side [Pattern1] display FL (100%) →...
  • Page 29 Joystick model 4 Operating Joystick model 4.5.4 Parameter 1 The [Parameter 1] tab configures settings related to the driving characteristics of the wheelchair. Select either [Parameter setting way (Selection)] that uses preset values, or [Parameter setting way (Modification)] that allows you to customize parameters. 1 Selecting the Parameter Setting Method Select one of the three preset methods ([Soft], [Standard], or [Sports]) or [Modify and use] in the [Parameter setting way (Modification)] mode.
  • Page 30 Joystick model 4 Operating Joystick model 4.5.5 Parameter 2 The [Parameter 2] tab configures settings related to the operational characteristics of the joystick. If you want to individually change the parameters, you need to select [Modify and use] on the [Parameter 1] tab.
  • Page 31 Joystick model 4 Operating Joystick model 3 Dead zone This area sets the range in which the wheelchair does not react to joystick input. The area appears in black on the graph display on the Joystick Path Setting Window. The wheelchair does not move when the tilt of the joystick is inside the dead zone range.
  • Page 32 Joystick model 4 Operating Joystick model 4.5.6 Preinstalled setting on “Modify and use” When you want to change [Parameter 1] or [Parameter 2] using [Modify and use], you can do so based on the preset [Soft], [Standard], and [Sports] settings. Load the setting data of the wheelchair using the icon or menu bar.

  • Page 33: Joystick Path Setting Window

    Joystick model 4 Operating Joystick model Joystick Path Setting Window The Joystick Path Setting Window examines joystick operations. Selecting [Tool] > [Open J/S path setting window] from the menu bar on the Driving Parameters window opens the Joystick Path Setting Window in a new window. 1 [Open] Icon This icon opens the data files saved to the PC.
  • Page 34 Joystick model 4 Operating Joystick model 4 [Write] Icon This icon writes the learned results. The icon is available after diagnostic results are read. The same operation can be performed by selecting [Communication] > [Set J/S path to operation limit] from the menu bar. 5 [Stop Diagnostics] Icon This icon stops the diagnostic test.

  • Page 35: Service Window

    Joystick model 4 Operating Joystick model Service Window Depending on the serial number used during installation, this menu may be inaccessible. Contact your software provider if you need to access this menu. 4.7.1 Tabs and Icons 1 [Basic information1] Tab This tab displays the information and Product serial No.
  • Page 36 Joystick model 4 Operating Joystick model 4.7.2 Basic information1 This tab displays the information and product serial numbers of the left and right drive units. 1 Model Information of the Left and Right Drive Units This is read-only data. The information cannot be replaced. 2 Product serial No.
  • Page 37 Joystick model 4 Operating Joystick model 4.7.3 Basic information2 This tab displays basic information related to the propulsion controller. 1 Model Information of Controller This is read-only data. The information cannot be replaced. 2 Product serial No. of Controller Normally, this is read-only data. Selecting [Communication] >...
  • Page 38 Joystick model 4 Operating Joystick model 4.7.4 Enable to change product serial No. Selecting [Communication] > [Enable to change product serial No.] from the menu bar allows you to replace the Product serial No. of the left and right wheel units ([Basic information1] tab), as well as of the propulsion controller ([Basic information2] tab).

  • Page 39: Print

    Joystick model 4 Operating Joystick model Print Print allows you to print the settings in the Driving Parameters window, as well as the diagnostic results in the Joystick Path Setting Window. Selecting the [Print] icon on each screen or [File] > [Print] from the menu bar opens Print Preview. When printing the settings on the Driving Parameters window, a window with entry fields for printing will be displayed.
  • Page 40 Joystick model 4 Operating Joystick model 1 Model Information 2 Setting Parameter Values This area displays the parameter setting values. When [Parameter setting way (Selection)] mode is selected, an asterisk (*) indicating that the value is preset is displayed in the Setting Value column.

  • Page 41: Operating Servo Model

    Servo model 5 Operating Servo model 5 Operating Servo model Selecting a Menu On the Model Menu screen, select [2. Servo model] to display the Main Menu screen. 1 Driving Parameters This menu allows you to check the information of the electrically powered unit and make changes to the settings of functional parameters (buzzer, LED brightness, etc.) and parameters related to driving characteristics.

  • Page 42: Setting The Communication Port

    Port” Setting the Communication Port In the default settings of JW Smart Tune, once the menu window starts, the confirmation window is displayed for automatic reading of the wheelchair’s data, and a connection is established. To disable reading on startup, go to [Communication] and uncheck [Auto-read the wheelchair driving parameters when ST connected].
  • Page 43 Servo model 5 Operating Servo model Click the [Read] icon or, from the menu bar, select [Communication] > [Read wheelchair functional parameters] to communicate with and read data from the wheelchair. [Line status] indicates the connection status with the wheelchair. If the display is blue, connection was successful.

  • Page 44: Changing The Settings

    Servo model 5 Operating Servo model Changing the Settings Load the setting data of the wheelchair using the icon or the menu bar, with the line status displayed in blue (connected). Skip steps 1 and 2 if a connection is established and reading is performed on window startup.
  • Page 45 Servo model 5 Operating Servo model Error example: Communication failure Either change the settings or parameter values displayed on the screen or recall the setting data saved in your PC. P.48 “5.4.2 Recalling Setting Data” Write the setting data displayed on the screen to the wheelchair using the icon or the menu bar.
  • Page 46 Servo model 5 Operating Servo model When the manufacturing serial number in the data to be written differs from the manufacturing number of the connected wheelchair due to use of data set using another wheelchair or the like, a confirmation message appears. In such a case, even if you press [OK] to write the manufacturing serial number, the manufacturing serial number information in the wheelchair will not be replaced.

  • Page 47: Saving And Recalling Setting Data

    Servo model 5 Operating Servo model Saving and Recalling Setting Data 5.4.1 Saving Setting Data You can save the basic information, parameter values, and various settings displayed on each window to your PC. From the menu bar, select [File] > [Save As] to open the Save window. The [Save to PC] icon functions as [Save].
  • Page 48 The data type is differentiated by the suffix. Select a file in accordance with the screen that you are operating. P.47 “5.4.1 Saving Setting Data” In Ver. 5.0 and later versions of JW Smart Tune, the Functional Parameters window and the Driving Parameters window in versions prior to Ver. 5.0 are integrated as one in the Driving Parameters window.

  • Page 49: Driving Parameters Window

    Servo model 5 Operating Servo model Driving Parameters Window 5.5.1 Tabs and Icons 1 [Basic information] Tab Switches to the tab where the information of the electrically powered unit can be checked. 2 [Functional Parameters] Tab Switches to the tab where changes can be made to the settings of functional parameters, such as the auto power-off time, buzzer sound, and LED brightness.
  • Page 50 Servo model 5 Operating Servo model 7 [Write] Icon This icon writes the parameter values displayed on the screen to the wheelchair. The same operation can be performed by selecting [Communication] > [Write driving parameters to wheelchair] from the menu bar. When the software version of the connected electrically powered wheelchair unit differs from the software version on the screen (software version of the data to be written), such as when data set in another wheelchair is loaded and...
  • Page 51 Servo model 5 Operating Servo model 5.5.3 Functional Parameters 1 [Auto-power-off time] This sets the time until the power is automatically turned off after the last hand rim input with the wheelchair turned on. When set to [Disable Auto-power-off], the power does not automatically turn off. 2 Buzzer This turns ON and OFF the sounds emitted by the buzzer when the power switch and the mode switch are operated.
  • Page 52 Servo model 5 Operating Servo model 5.5.4 Mode 1 and Mode 2 [Mode 1] (when the blue LED of the mode switch is lit up) and [Mode 2] (when the LED is off) allow you to set the parameters for the assist characteristics of Mode 1 and Mode 2, respectively. Excluding [User weight], Mode 1 and Mode 2 setting values are not linked.
  • Page 53 Servo model 5 Operating Servo model 1 [Assist Motor Power] This area is used to set the power assist levels for forward and reverse movement. The % indicates the percentage with respect to the maximum power of the motor. As a general guide, decrease the assist motor power when the wheelchair is often used indoors or when the user is light in weight, and increase the assist motor power when the wheelchair is often used outdoors or when the user is heavy in weight.
  • Page 54 Servo model 5 Operating Servo model 5 [Running Tendency] (Turning/Going straight) This area is used to set the balance for turning and going straight. The relationship between turning and going straight is inversely proportional. Increase the turning value (T-side value) when the wheelchair is often used to make sharp turns, and increase the straight value (S-side value) when deviation to the left or right is not desired.
  • Page 55 Servo model 5 Operating Servo model Cruise control setting is disabled in the following cases. • Assst motor power - forward < 60% • Assst motor power - backward < 60% • Coasting distance < 0.5 Cruise control is canceled in the following cases. •...
  • Page 56 Servo model 5 Operating Servo model 5.5.6 Read backup driving parameters Selecting [Communication] > [Read backup driving parameters from right unit] from the menu bar loads the driving parameters of the right and left wheel units from the right wheel unit. Selecting [Read backup driving parameters from left unit] similarly loads the parameters of both units from the left wheel unit.
  • Page 57 Servo model 5 Operating Servo model The Coasting Distance is changed to standard (1.0), and the Response Level (Balance Adjustment) calculated from the automated diagnostic results is displayed on the screen. A confirmation message appears to confirm whether or not you want to continue and write the data to the wheelchair. Press [OK] to write the parameter values.

  • Page 58: Automated Diagnostics Tool Window

    Servo model 5 Operating Servo model Automated Diagnostics Tool Window Servo model saves 50 seconds of driving data after power is turned on. After data including this driving data is loaded, selecting [Tool] > [Display 50 sec. driving measurement] from the menu bar in the Driving Parameters window opens the Automated Diagnostics window for diagnosing driving data in a new window.
  • Page 59 Servo model 5 Operating Servo model When the data of the left and right wheels are displayed in the same graph 1 Graph Display This area displays the left and right hand rim input and wheel speed in a graph. Selecting [View] >...

  • Page 60: Wheelchair Path Window

    Servo model 5 Operating Servo model Wheelchair Path Window 1 Distance between wheels This area allows you to enter the distance between wheels for calculating wheelchair path. The distance is set to 0.51 m by default. When the data from automated diagnostics is saved to the PC, the numerical value at the time the [Draw] button is selected is saved.

  • Page 61: Service Window

    Servo model 5 Operating Servo model Service Window Depending on the serial number used during installation, this menu may be inaccessible. Contact your software provider if you need to access this menu. 5.8.1 Displayed Items 1 Model Information of the Left and Right Wheel Units This is read-only data.
  • Page 62 Servo model 5 Operating Servo model 7 [Read] Icon This icon reads and displays the parameter values and basic information set in the wheelchair. The same operation can be performed by selecting [Communication] > [Read service information from wheelchair] from the menu bar. 8 [Write] Icon This icon writes the parameter values displayed on the screen to the wheelchair.
  • Page 63 Servo model 5 Operating Servo model 5.8.3 Enable to change product serial No. Selecting [Communication] > [Enable to change product serial No.] from the menu bar allows you to replace the Product serial No. of the left and right wheels. Selecting [Communication] >...
  • Page 64 Servo model 5 Operating Servo model 5.8.5 Error Codes When reading failure occurs in the Service window, an error code may appear in the lower part of the error message. Check the details of the code using the table below. Error Code Probable Cause 0x80000000...

  • Page 65: Print

    Servo model 5 Operating Servo model Print Print allows you to print the settings in the Driving Parameters window, the diagnostic results in the Automated Diagnostics Tool window, and the driving path in the Wheelchair Path window. Selecting the [Print] icon on each screen or [File] > [Print] from the menu bar opens Print Preview. When printing the settings on the Driving Parameters window, a window with entry fields for printing will be displayed.
  • Page 66 Servo model 5 Operating Servo model 5.9.1 Driving Parameters Window: Settings 1 Model Information 2 Setting Parameter Values This area displays the parameter setting values on the Driving Parameters window. The area displays [Side slope assist] and [User weight] as an asterisk (*) if not set.
  • Page 67 Servo model 5 Operating Servo model 5.9.2 Automated Diagnostics Tool Window: Driving Measurement When the data of the left and right wheels are displayed in separate graphs When the data of the left and right wheels are displayed in the same graph 1 Graph Display This area shows the graph displayed when Print Preview was opened (reflecting the [Integrate two charts into one] or [Divide chart to left and right] setting and zoom status).
  • Page 68 Servo model 5 Operating Servo model 5.9.3 Wheelchair Path Window: Driving Wheelchair Path 1 Graph Display This area displays the graph shown when Print Preview was opened. When the graph screen is zoomed in or out, the graph is previewed and printed at the same magnification. 2 Setting Parameter Values This area displays the parameter setting values on the Driving Parameters window.
  • Page 70 JW Smart Tune Ver. 6.1 Operation Manual Published October 2022 All rights reserved Written and published by Yamaha Motor Co., Ltd.
