Assembly instructions for Panthera S2/U2, S2-/S3- Swing, S3/U3, Bambino MEM6003-30 and MEM6004-30 Type 30 1. Check that you have the correct model. 2. Remove the wheels. S3/U3 S2/U2 S3/U3 S2/U2 3. Check the correct placement for the eMove, and that it is mounted Ø12,7 x 46 axle with Part Number: XOE-2530E-00.

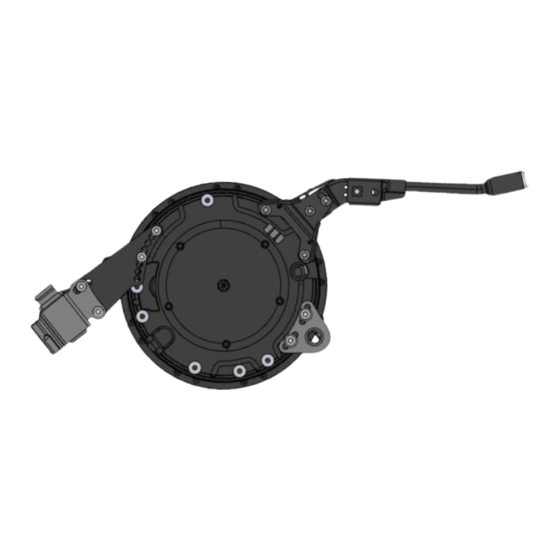

Page 2
4. Assembly the plate (right side) according to pictures above. Parts for right side mounting: Item No. Part Number Description XSM8X55 Screw Round M8 x 55 XSM8BR Washer Plain M8 XSM8ML Lock Nut M8 100 400 013 Spacer (*only with the Carbon rear axle +1,5) 100 400 011 Spacer 290010...
Page 3
Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture for the right model. NOTE! Keep in mind that the hinged battery bag and the battery box placed under the seat might interfere with the tipping levers.
