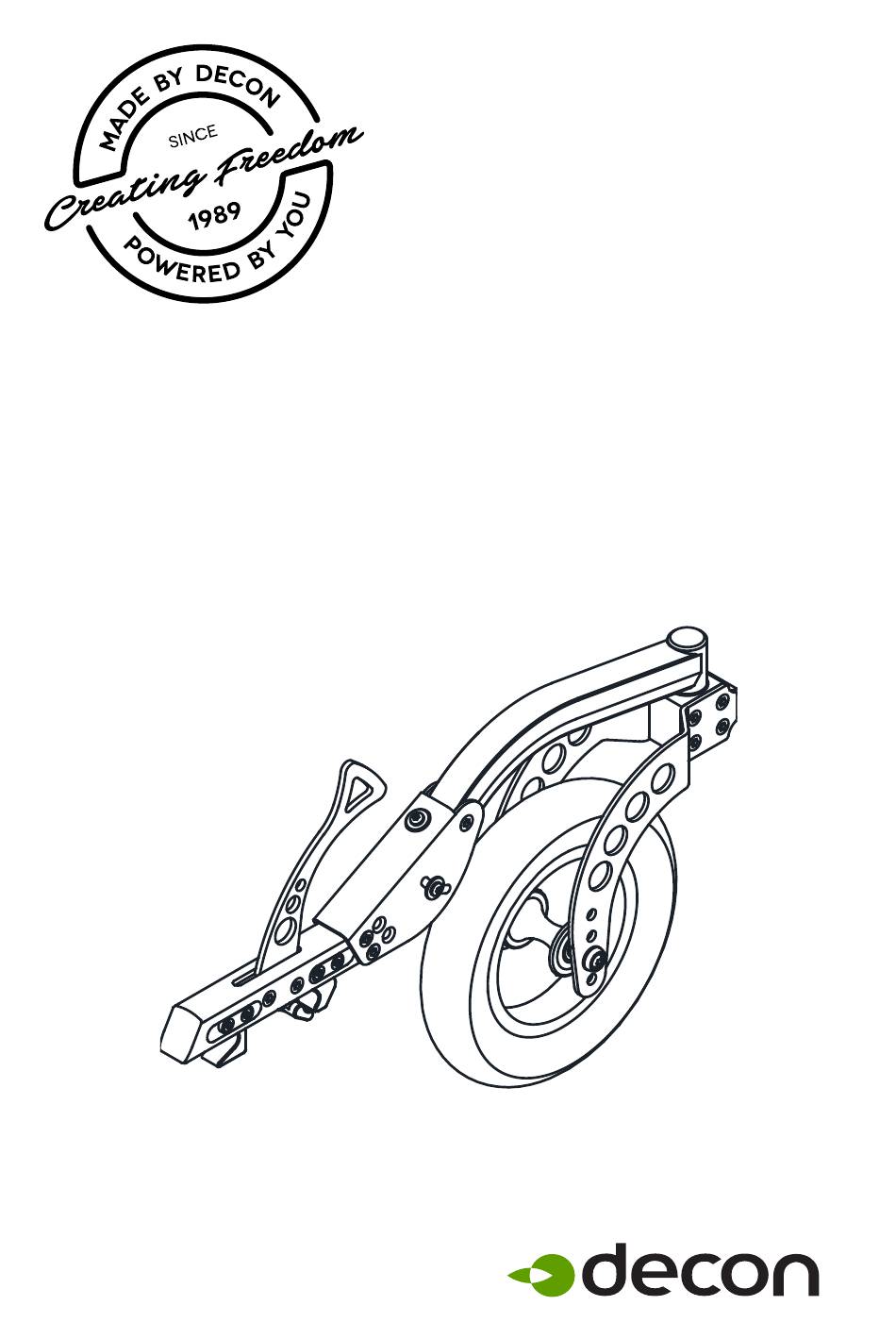

- Page 1 Adventus User manual 2021-06 Rev1...
-
Page 3: Table Of Contents
General ......................... 9 Technical data ...................... 9 Delivery scope ....................9 Overview ......................10 Features ......................10 Mechanical settings ................... 11 To mount Adventus for the first time ............11 To use Adventus ..................15 Care ......................17 Cleaning .......................17 Repairs .........................17... -
Page 4: Security
Security General instructions The user manual is written for users of Adventus and people who in some way are assisting the user to ensure an optimal use of Adventus. Read the user manual and make yourself well known with Adventus before using it. -
Page 5: Warnings
WARNING! Keep in mind that Adventus is not for play or sports, but is an aid to make it easier to get forward on such as snow, sand or grass, etc. -
Page 6: Waste Management
It is extremely important that all the screws are properly tightened after setting up. Waste management Once Adventus has served and is to be scrapped, contact the local authorities to obtain infor- mation about recycling and follow their instructions. Alternatively, you can contact your reseller for recycling your used Adventus. -
Page 7: Labelling
Reuse When Adventus is to be transferred to a new user, all technical documents must also be transferred. The product must be cleaned by a professional, disinfected and serviced. Sida 7/18... -
Page 8: Warranty
The warranty period for Adventus is 2 (two) years from the date of purchase. If there is a material or workmanship defect on your copy of Adventus during this warranty period, the defective parts will be replaced or repaired free of charge. Consumable parts such as tyres and hoses are excluded from this warranty. -
Page 9: Product Description
Adventus to the wheelchair´s footrest with the wheel in its front position, there- after the wheel is to be rotated. When the wheel on Adventus is rotated, the wheelchair´s castors lift from the ground. The angle, α, in which Adventus is installed... -
Page 10: Overview
Adventus Product description User manual To transport Adventus on a wheelchair, a transport holder is required. Overview Adventus consists mainly of the following parts. Locking lever Wheel Rear attachment Wheel fork with height adjustment Front attachment and lock Adjustment screw for swing inertia... -
Page 11: Mechanical Settings
• that the distance between the front and rear tube of the footrest is as shown in the table below. Adventus is available in standard and in long design depending on the distance between the tubes of the footrest. Adventus standard... - Page 12 Adventus Mechanical settings User manual To customize Adventus 1. Measure the height from ground up to underneath the front tube of the wheelchair´s footrest. Now set the angle postion (D) and wheelposition (G) according to the table below. INFO! Using the settings in the table below normaly results in lifting the front castors of the wheelchair 30-40mm from the ground.
- Page 13 (O) so that the screws (N) kan move freely inside the track for angle adjustment (E). 6. Put the wheel in its front position, put Adventus in place on the footrest by inserting the attachment (B) so that it locks into the rear tube of the footrest.
- Page 14 Adventus Mechanical settings User manual 10. Adjust the swing inertia by tightening or loosening the screw (H) in the steering link. Make sure the wheel is aligned with the frame. If this needs to be adjusted start by loosering the screw (P). Then loosen or tighten the adjustment screws (I) to align the wheel.
-
Page 15: To Use Adventus
5. Turn the wheel to its rear position to lift the castors from the ground Transport of Adventus WARNING! Use straps to ensure that Adventus can be transported safely. CAUTION! Place Adventus so that no parts are damaged during transport. CAUTION ! Never transport Adventus connected to a wheelchair. - Page 16 Adventus To use Adventus User manual Transport of Adventus on wheelchair The transport holder is extra equipment. Hang Adventus on the transport holder. Sida 16/18...
-
Page 17: Care
If Adventus becomes dirty due to normal use, clean Adventus with a damp, hard wrung, towel. If Adventus is heavily soiled use a towel and a neutral detergent. Make sure that no cleaning agent is left on Adventus after cleaning. - Page 18 Decon Wheel AB Södra Ekeryd 119, 314 91 Hyltebruk Tel: +46 (0)345 40880 Fax: +46 (0)345 40895 E-mail: info@decon.se...
