Operating Guide | VLT® AQUA Drive FC 202

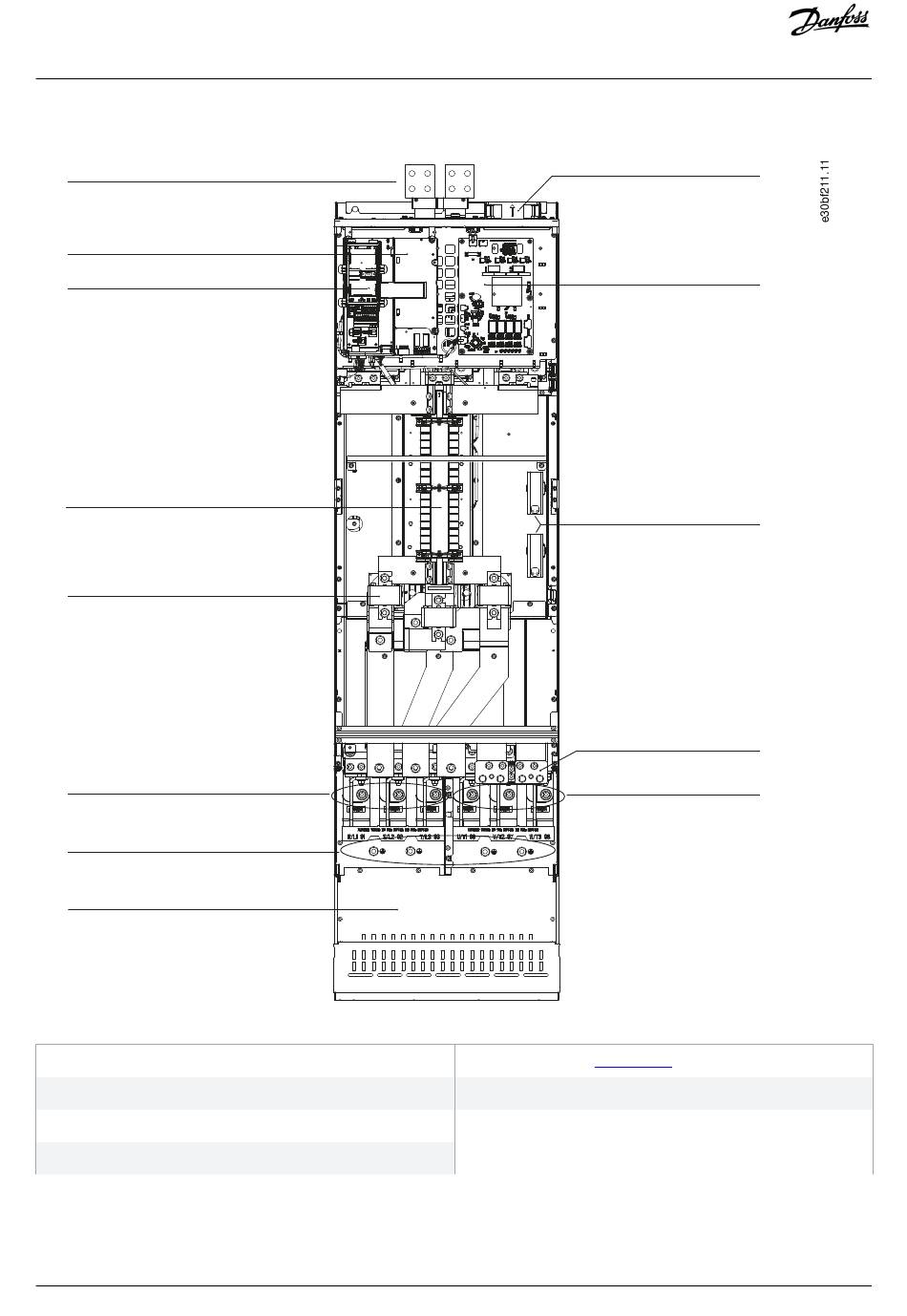

3.4 Interior View of Enclosure E3h/E4h

1
2
3
4
5
6
7
8
1 Load share/regeneration terminals (optional)
3 Local control panel (LCP) cradle
5 Mains fuses (optional)
7 Ground terminals
Danfoss A/S © 2020.01
+ DC 89 - DC 88
FASTENER TORQUE:
FASTENER TORQUE:
M10 19Nm (14FT-LB) M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB) M12 35Nm (26FT-LB)
+ BRAKE 82 - BRAKE 83
FASTENER TORQUE: FASTENER TORQUE:
M10 19Nm (14FT-LB) M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB) M12 35Nm (26FT-LB)
2 Control shelf (see
4 RFI filter (optional)
6 Mains terminals
Product Overview
illustration 4)
AQ275652274277en-000101 / 130R0708| 15
9
10
11
12
13
