9.8 Enclosure Dimensions
9.8.1 E1h Exterior Dimensions
2043
(80.4)
2002
(78.8)
1553
(61.1)
1393
(54.9)

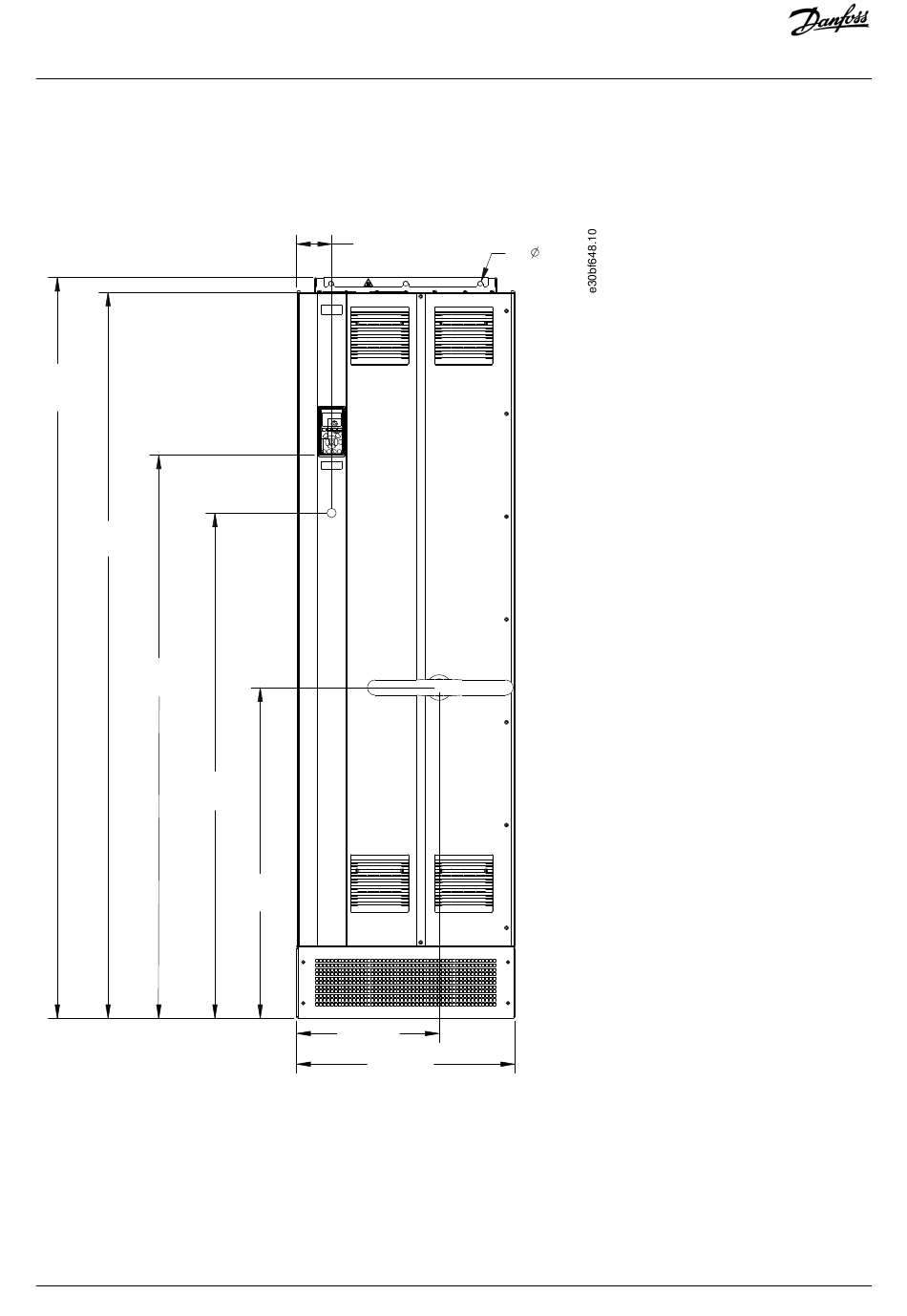

Illustration 53:
Front View of E1h
Danfoss A/S © 2020.01
22 (0.8)
912
(35.9)
393 (15.5)
602 (23.7)
3X
13 (0.5)
AQ275652274277en-000101 / 130R0708| 143
