Feeder Assembly
Install two cables at each feed level tube as shown, see figure 15. The cable stop should be located on the inside
of the feed level tube and pulled up tight against the inside.
NOTE: After the feeder operates, re-adjustment of the feed level tubes may be done to achieve the
desired feed level.
5. Place the feed level tube assembly in the feeder pan.
6. Insert drop tube into feed level tube assembly, see figure 16. Install the
pan shield supports in the slots in the drop tube.
7. With the bottom of the pan up, hook the swing down pan support. Then
rotate the pan down to hook the remaining pan supports over the lip of
the pan.
Do not bend the pan supports during assembly.
18

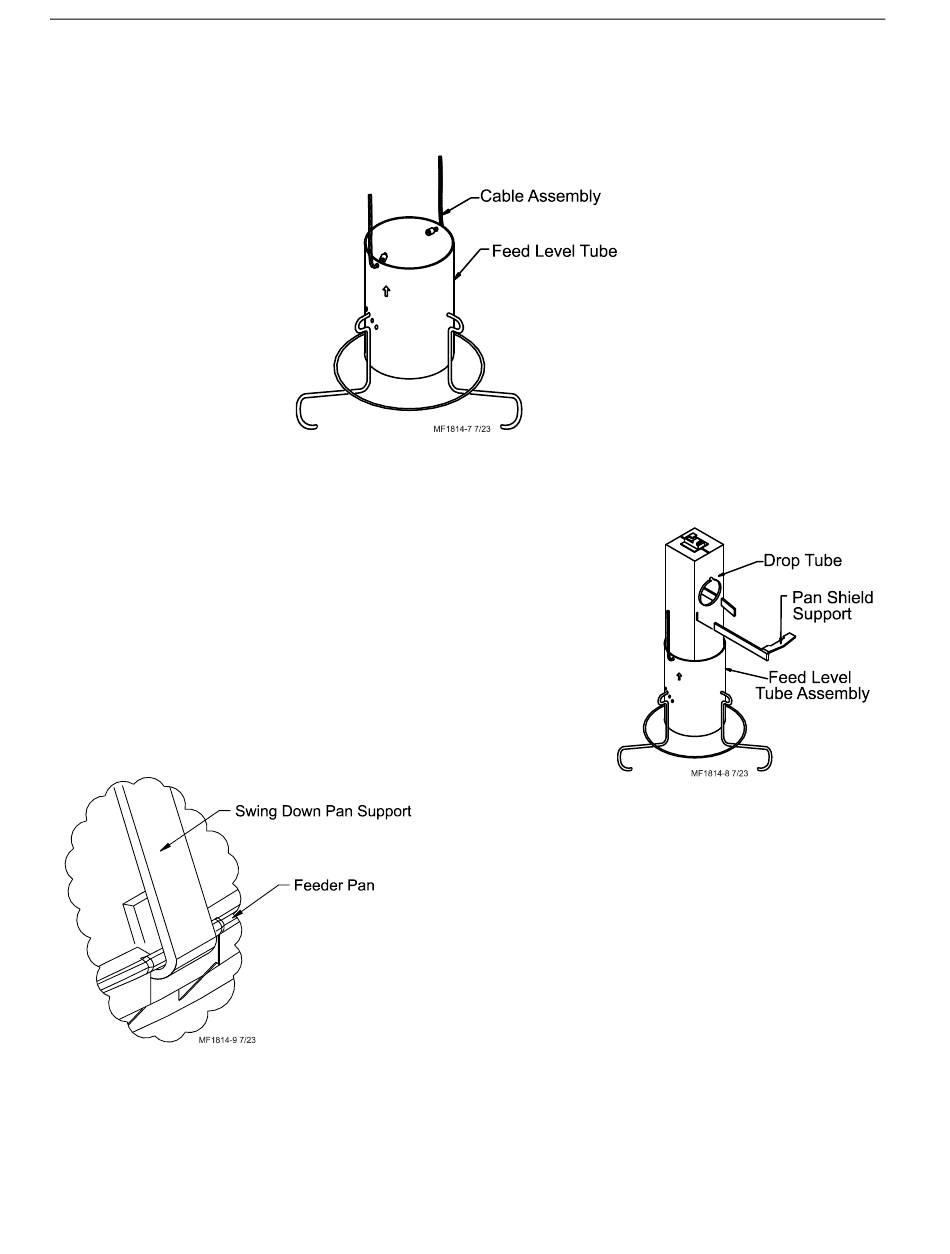

Figure 15. Cable Installation
