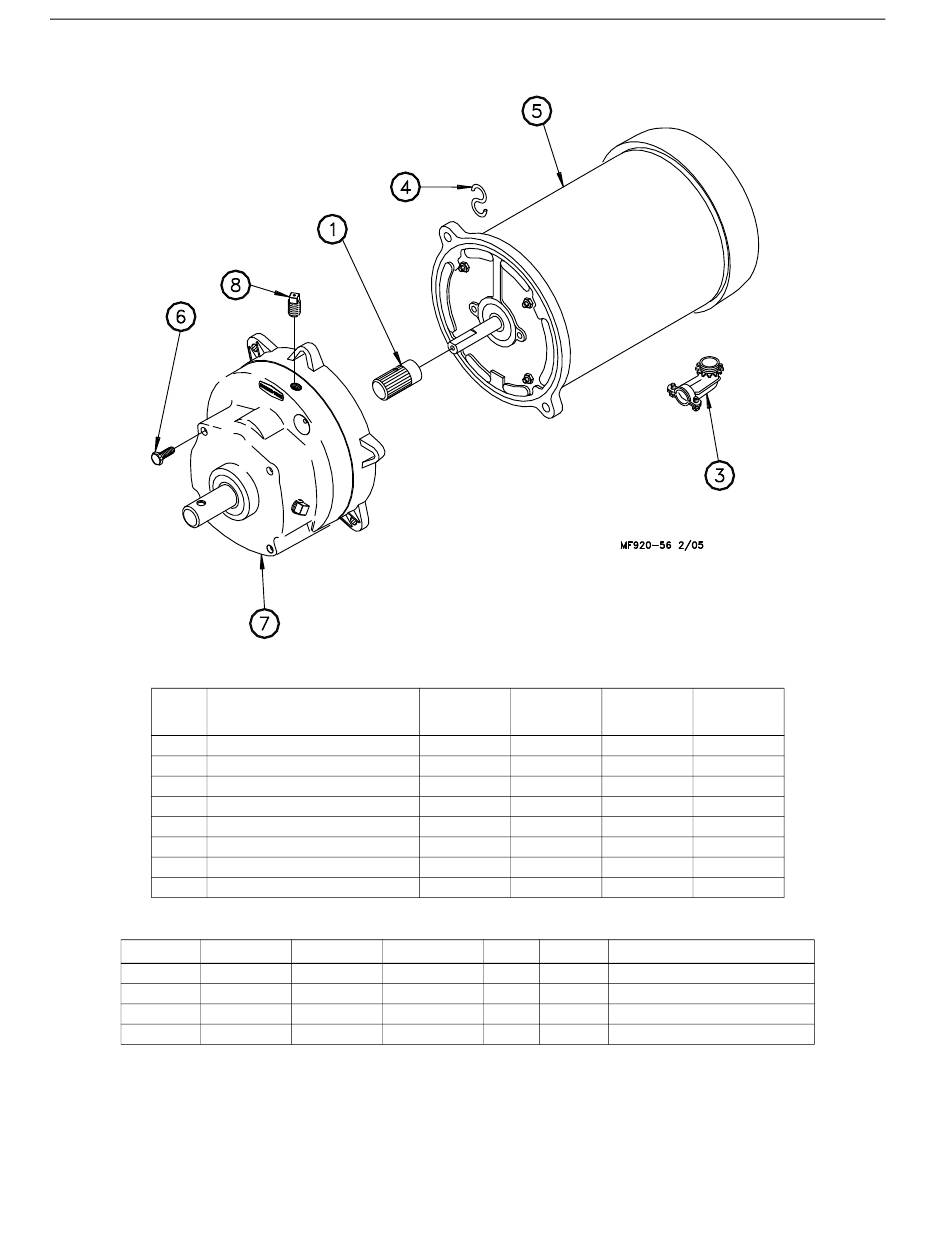

Power Unit Components

Item
1 Pinion Assembly
2 Cord Assembly
3 Connector (90 degree)
4 Motor
5 5/16-18x5/8 Hex Hd Screw
6 Gearhead
7 Pipe Plug
8 "S" Hook
Power Unit Assembly Part Numbers:
Part No.
3259-34 1/3 HP
3259-39 1/2 HP
3259-98 1/2 HP
3259-100 1/2 HP
38
Description
HP RPM Phase
348 RPM Single Phase 60 Hz
348 RPM Single Phase 60 Hz
348 RPM Single Phase 50 Hz
348 RPM Three Phase 50 Hz 220/380 Use with both Control Units
3259-34 3259-39
Part No. Part No.
5046 5046
-- --
4228 4228
4229 5703
4412-1 4412-1
3261-5 3261-5
3516 3516
4270 4270
Hz Voltage
230
230
230
MODEL ATF™ PLUS Feeding System
3259-98 3259-100
Part No. Part No.
5046 5046
28028 --
4228 --
5977 28031
4412-1 4412-1
3261-11 3261-11
3516 3516
4270 4270
Usages
Use with both Control Units
Use with both Control Units
Use with both Control Units
