Feeder Tube Assembly - Chore-Time REVOLUTION Installation And Operator's Manual

Feeder Assembly
5. Insert the Drop Tube into the Feed Level Tube Assembly, see figure
20. Install the pan shield supports in the slots in the drop tube.
6. With the bottom of the pan up, hook the swing down pan support.
Then rotate the pan down to hook the remaining pan supports over
the lip of the pan.
Do not bend the Pan Supports during assembly.

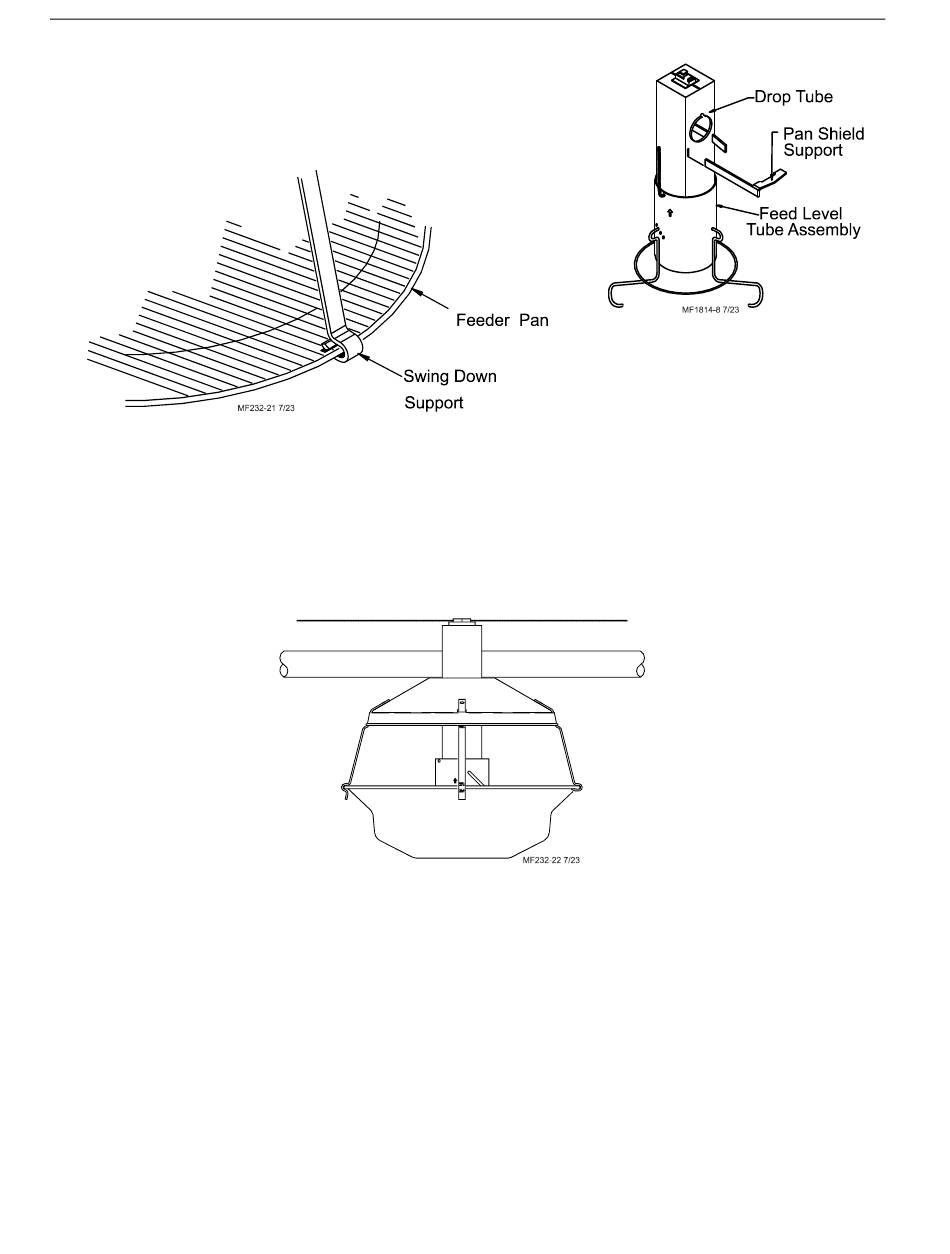

Figure 21. Swing Down Pan Support

Feeder Tube Assembly

1. Slide one Pan Assembly onto the Feeder Tube for each outlet hole. Lift the Drop Tube through the Pan
Shield so the Feeder Tube can slide through the holes in the sides of the Droop Tube. Install the Pan
Assemblies so all the Swing Down Supports are on the same side to the feeder line.
2. Rotate the feeder tube so the tab at the outlet hole will pass throughout the notch in the Drop Tube. Rotate the
tube 180 degrees to lock the pans in place, see figure 22. Make sure outlet holes are down.
3. Position the tubes with pans attached end to end in the approximate location where they will be suspended.
The belled ends of the tubes must point towards the hopper.
20
Figure 22. Install Feeders on Tubes
Adult Turkey Feeder, MODEL ATF™
Figure 20. Drop Tube Installation
MF232Q
