Hopper Assembly Procedure
The 200# Hopper is used with the MODEL ATF™ PLUS feeding system.
1. Loosely, assemble the 200# Hopper Side Panels, as shown in Figure 10, using 1/4-20 bolts and 1/4-20 hex nuts
(supplied in Hardware Package). The Hopper should be assembled so that the "CHORE-TIME" decals are on
opposite sides of the hopper.
2. Secure the Boot Hangers to the bottom of the hopper, using 1/4-20 hardware, see figure 10.
16

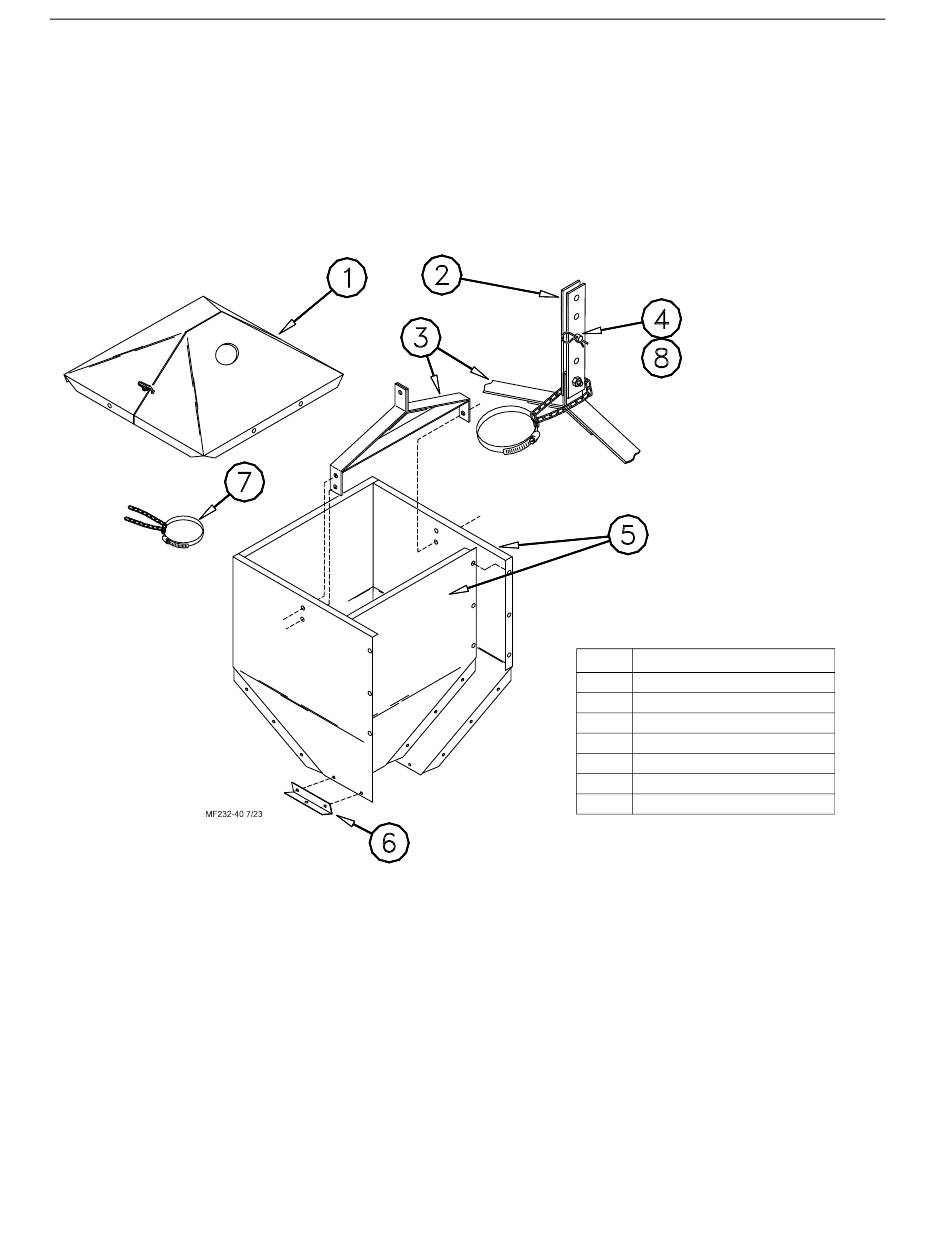

Figure 10. Hopper Assembly Procedure
MODEL ATF™ PLUS Feeding System
Key
Description
1
Two-Piece Cover (optional)
2
Adjustment Bracket
3
Hanger Bracket
4
Clevis Pin & Hair Pin
5
Side Panels
6
Boot Hanger
7
Tube Support Assembly
MF1814C
