MODEL ATF™ PLUS Feeding System
Power Winch Installation
1. Bolt the Power Winch, fully assembled, to a 2x8 (50x200
mm) board or other fixture that will span at least 3 rafters.
The brake mechanism will protrude on one side.
For feeder lines over 350 feet (106 m), install a 2985 Cable
Hook between the mounting bolt and Power Winch frame,
as shown in Figure 22.
2. Attach the 2x8 (20x200 mm) board, with the Power Winch
secured, to the ceiling at the center of the feeder line. The
2x8 (50x200 mm) or other fixture must be parallel to the
line and must span at least 3 rafters or other fixture.
If the hopper is located at the center of the feeder line,
locate the Power Winch a few feet offset from the center of
the feeder line.
3. Extend the 3/16" (5 mm) cable the full length of the feeder line. Attach the cable temporarily to the ceiling with
nails, staples, or some type of fastener.
4. Wrap the cable through the winch drum relief located near the bottom of the drum. Tighten the set screw to
anchor the cable to the drum, see figure 9.
5. Turn the winch drum one full revolution. Guide the cable against the flange at the bottom of the winch drum.
The cable must not wrap over itself on the drum, but should be wrapped as close as possible to each previous
wrap, see figure 9.
Drop Installation
1. Attach a 3004 Pulley to each hook.
2. Thread the end of the 3/32" cable through the pulley toward the winch. Clamp this end to the 3/16" winch cable
about 6" (150 mm) from the pulley, using a 3/16" cable clamp, see figure 6.
3. Cut the cable long enough to allow for installation to the feeder line and to the Adjustment Leveler.
Sufficient cable is included to provide "throwbacks" on drops located beneath and near the winch. See figure 3
(on page 11), Detail D shows a "throwback" cable arrangement.
4. Begin installing suspension drops at the winch and proceed to the ends of the feeder line.
Keep the main cable tight between drops. It may be necessary to hang a weight on the end of the main cable to
maintain tension.
MF1814C

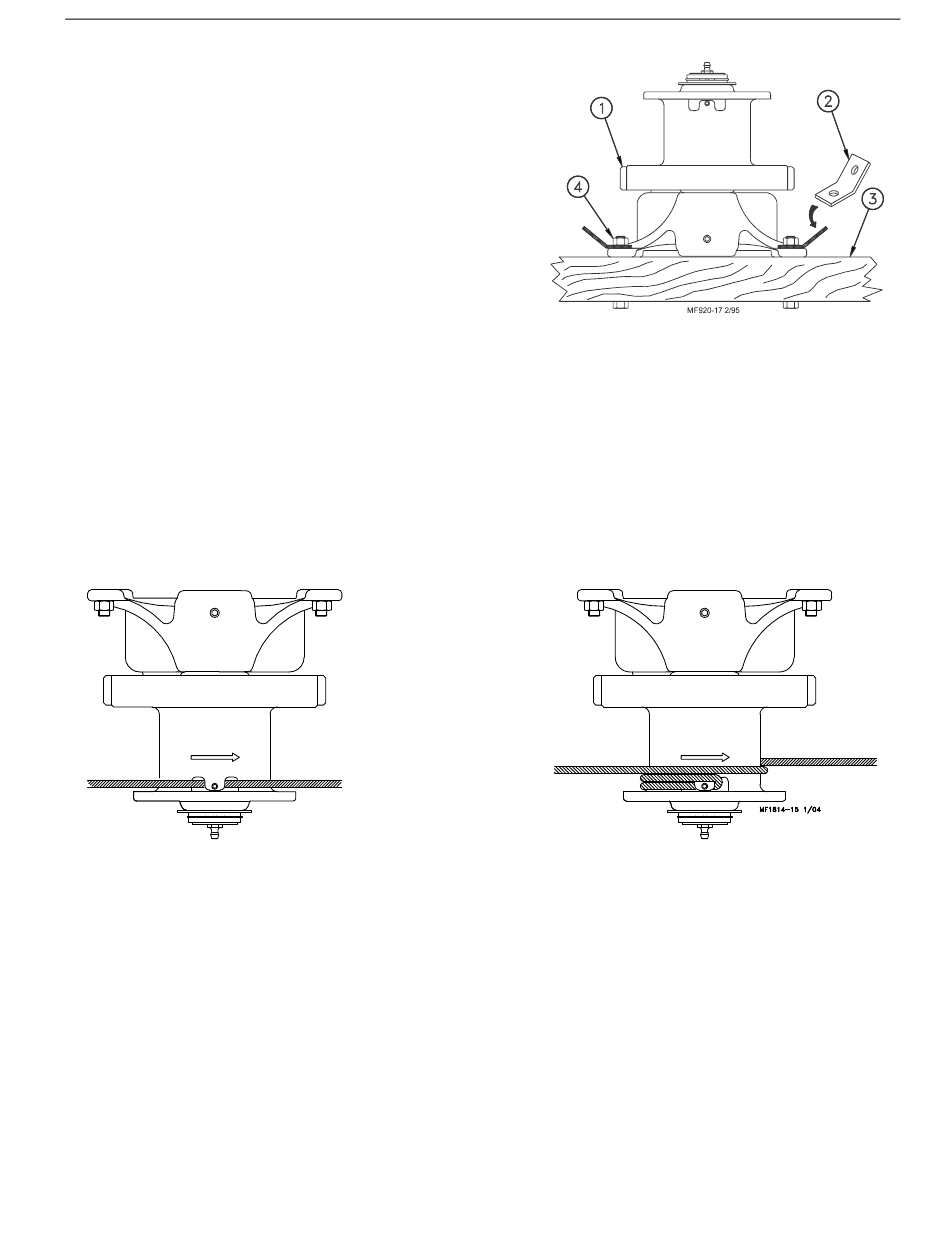

Figure 9. Cable Installation & Wrap
Figure 8.Power Winch Installation
Suspension System
15
