6 Troubleshooting

6.1 Diagnostics

The iC7 supports diagnostic event messaging for control systems by using faults and warnings. The faults and warnings are enabled
by default. Whenever one occurs, it is indicated on the display of a control system. If diagnosis interrupt is used by the control sys-
tem, it is possible to read out the fault or warning event within the PLC program and to react accordingly.
Table 17: Diagnostics Parameters
Menu in- Parameter
dex name (number)
10.3.2.3.1 Diagnostics
Fault
10.3.2.3.2 Diagnostics
Warning

6.2 PROFINET Report

The PROFINET report is available in MyDrive Insight, in parameter 10.3.2.1.1. The report shows the current status of:
• Connections
• Configuration
• Mapped signals and their values

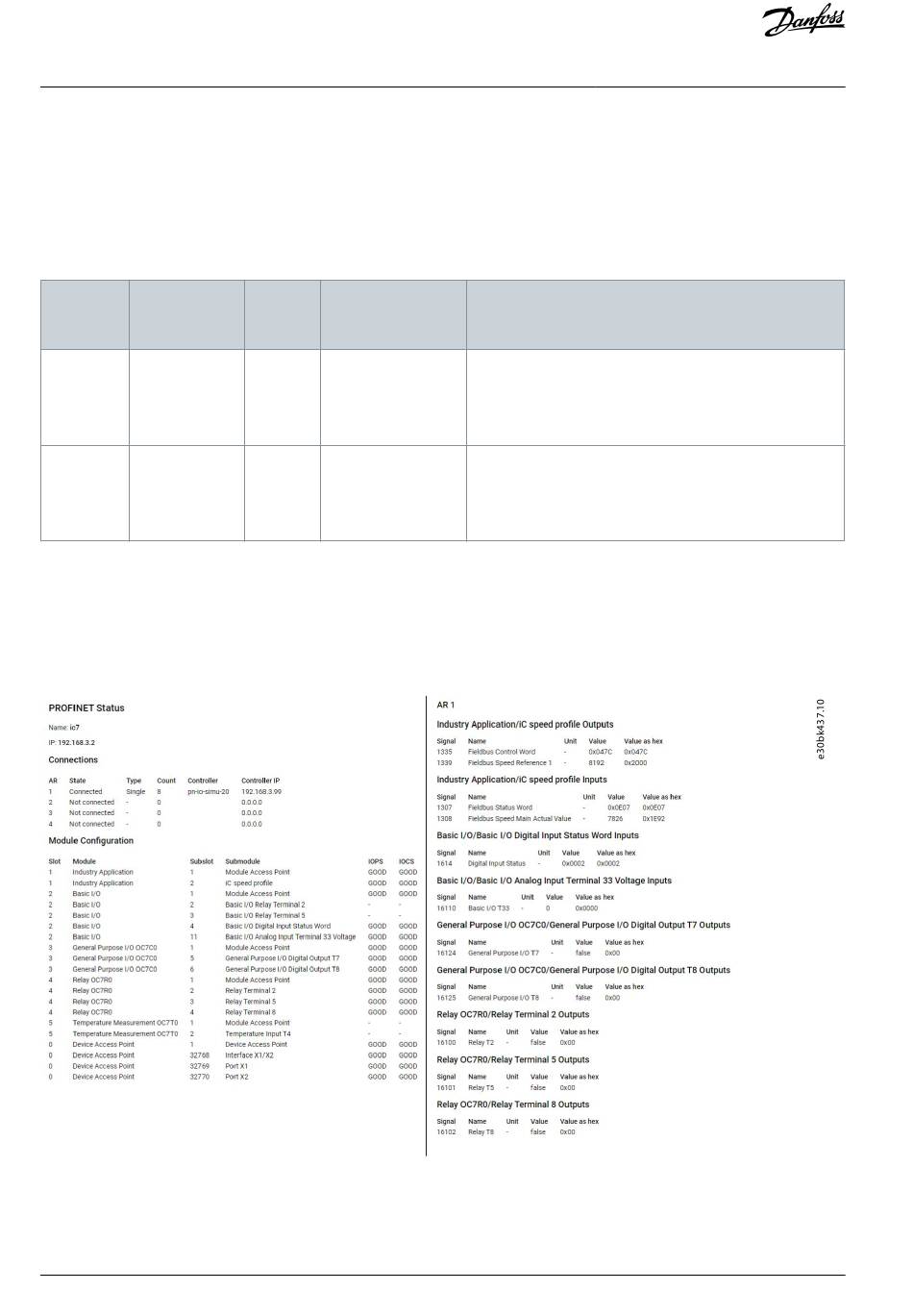

Illustration 11: Example of a PROFINET Report
28 | Danfoss A/S © 2023.06
Parame- Value
ter num-
ber
7081
• Enabled (default)
• Disabled
7083
• Enabled (default)
• Disabled
Description
Enables diagnostic fault.
When disabled, the device does not send any PROFINET di-
agnosis message with severity Fault when a fault is present
on the device.
Enables diagnostic warning.
When disabled, the device will not send any PROFINET di-
agnosis message with severity Maintenance required when
a warning is present on the device.
AQ408626183394en-000101 / 136R0280
