How to Install

6.14 Control Terminals

6.14.1 Access to Control Terminals
All control cable terminals are located underneath the
terminal cover in front of the frequency converter. Remove
the terminal cover using a screwdriver.

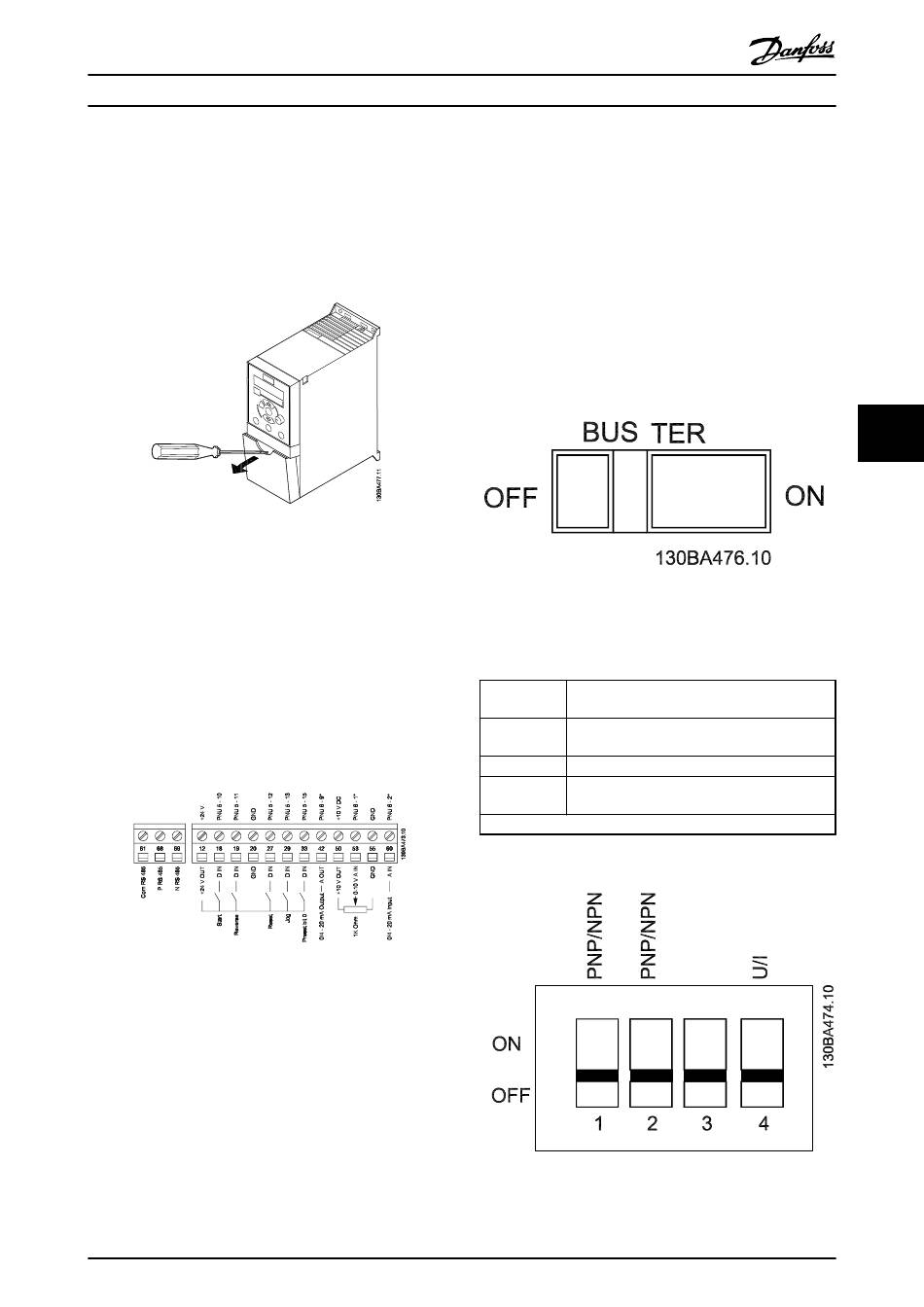

Illustration 6.11 Removing terminal cover
NOTE
See back of terminal cover for outlines of control terminals
and switches.

6.14.2 Connecting to Control Terminals

Illustration 6.12 shows all control terminals of the frequency
converter. Applying Start (term. 18) and an analog
reference (term. 53 or 60) make the frequency converter
run.
Illustration 6.12 Overview of control terminals in PNP-configu-
ration and factory setting.
VLT Micro Drive Design Guide

6.15 Switches

NOTE
Do not operate switches with power on the frequency
converter.
Bus termination:
Switch BUS TER pos. ON terminates the RS485 port,
terminals 68, 69. See Illustration 6.10.
Default setting = Off.
Illustration 6.13 S640 Bus termination
S200 Switches 1-4:
Switch 1:
Switch 2:
Switch 3:
Switch 4:
* = default setting
Table 6.5 Settings for S200 Switches 1-4
Illustration 6.14 S200 Switches 1-4.
®
MG02K102 - VLT is a registered Danfoss trademark
*OFF = PNP terminals 29
ON = NPN terminals 29
*OFF = PNP terminal 18, 19, 27 and 33
ON = NPN terminal 18, 19, 27 and 33
No function
*OFF = Terminal 53 0 - 10 V
ON = Terminal 53 0/4 - 20 mA
6 6
