930 Compact IC Flex ChS/Deg (2.930.1260)
The eluent bottle cap GL 45 accessory set (6.1602.160)
￭
This accessory set contains the bottle cap, an M6 tubing nipple, an M8
tubing nipple, two O-rings and an M6 and M8 threaded stopper.
The tubing adapter for aspiration filter accessory set (6.2744.210)
￭
This accessory set contains a filter holder, a clamping screw and tubing
weighting.
An aspiration filter (6.2821.090)
￭
The adsorber tube (6.1609.000)
￭
The SGJ clip (6.2023.020)
￭
Connecting the eluent aspiration tubing

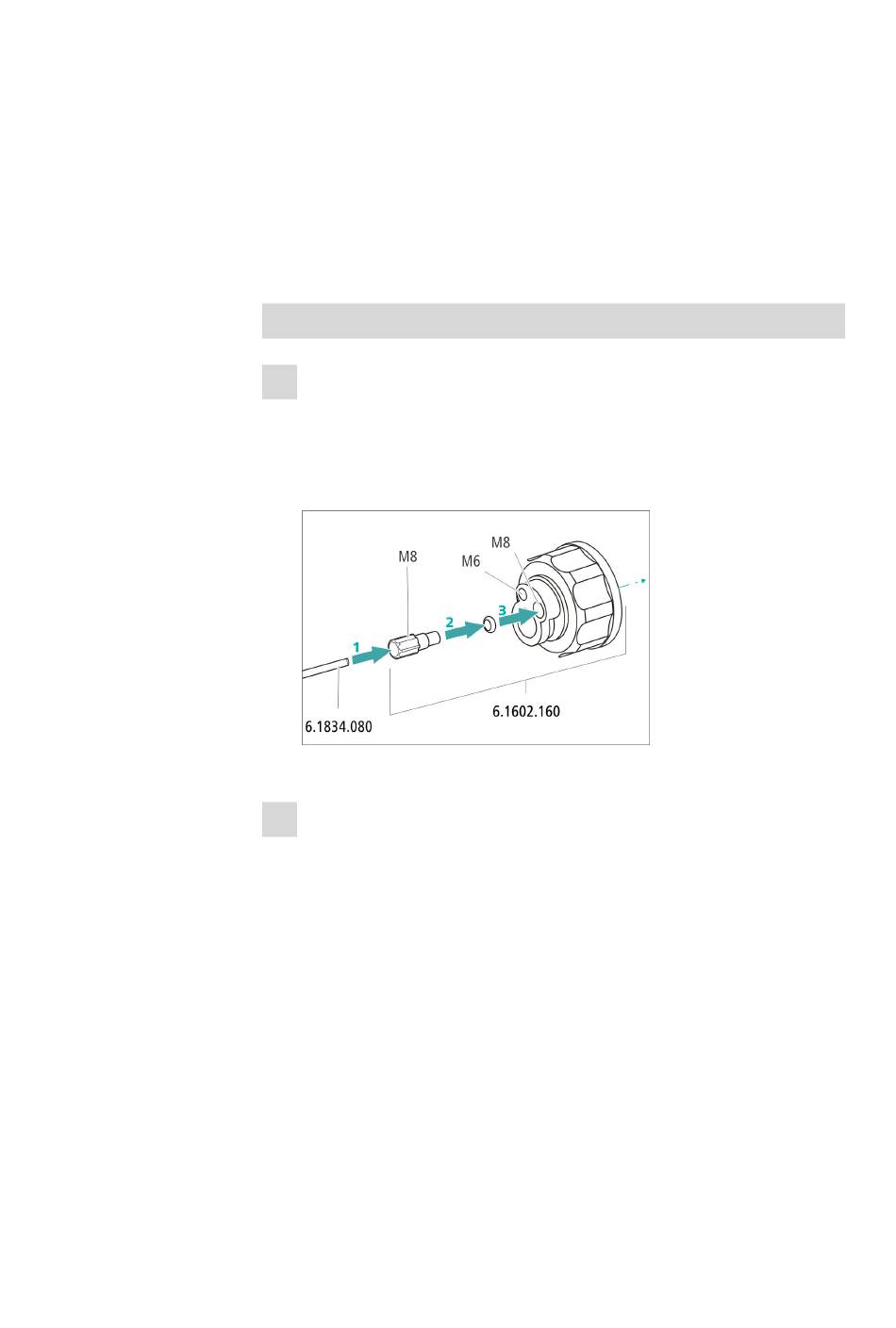

1 Installing the eluent bottle cap (6.1602.160)
Start by pushing the M8 tubing nipple onto the loose end of the
￭
eluent aspiration tubing, followed by the O-ring.
Push the loose end of the eluent aspiration tubing through the
￭
M8 opening of the bottle cap and screw it on for the time being.
Figure 7 Installing the eluent bottle cap
2 Mounting the tubing adapter
Install the parts of the tubing adapter for aspiration filter
(6.2744.210) accessory set:
Start by pushing the tubing weighting onto the loose end of the
￭
eluent aspiration tubing.
Then push the clamping screw onto the loose end of the eluent
￭
aspiration tubing.
Lastly, push the filter holder onto the loose end of the eluent aspi-
￭
ration tubing and screw it onto the tubing nipple.
The end of the tubing should extend approximately 1 cm.
3 Installation
￭￭￭￭￭￭￭￭
21
