5.7 Servicing the high-pressure pump
￭￭￭￭￭￭￭￭
60

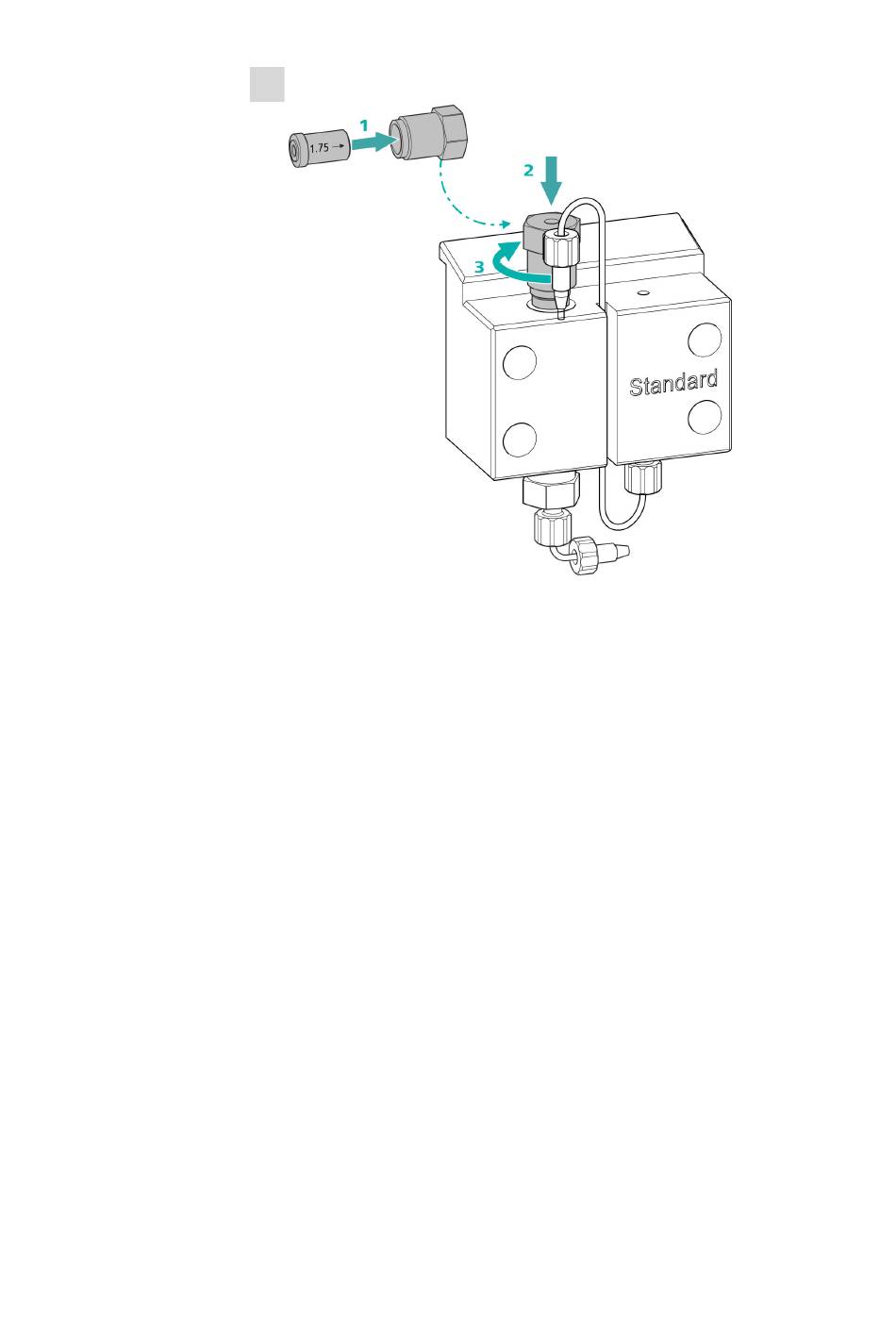

3 Reinserting the outlet valve into the pump head
Insert the outlet valve into the outlet valve holder (the seal must
￭
be visible) (1).
Screw the outlet valve holder up into the pump head (2) and
￭
tighten it firmly by hand and then retighten it one additional ¼
turn using the adjustable wrench (3).
Tighten the connection capillary to the auxiliary piston back onto
￭
the outlet valve holder.
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
930 Compact IC Flex ChS/Deg (2.930.1260)
