930 Compact IC Flex ChS/Deg (2.930.1260)
Connecting the drainage tubing

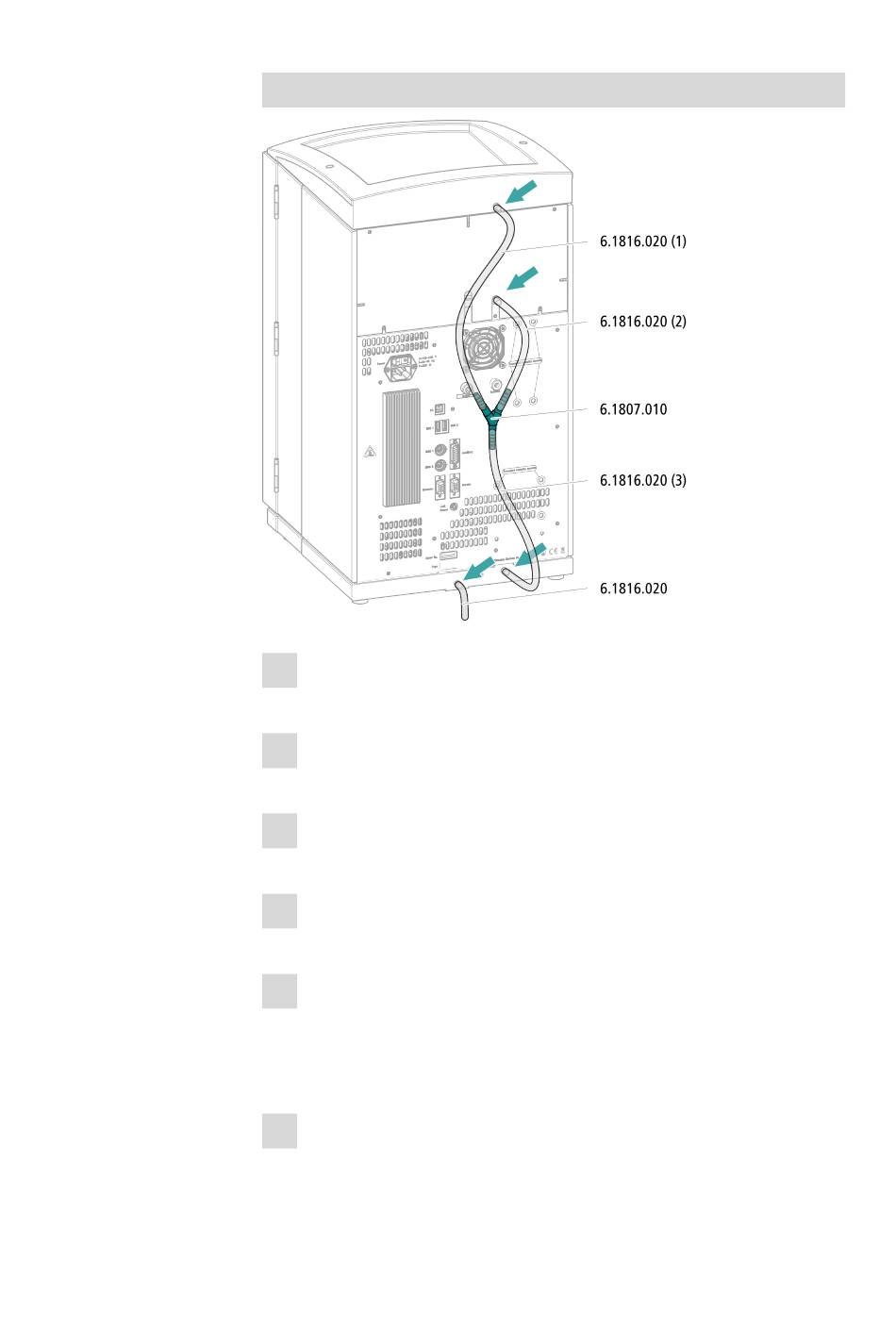

1 Cut a piece of silicone tubing into three pieces using scissors: 2 ×
approx. 40 cm and 1 × 20 cm.
2 Attach one end of the 40 cm long piece to the drainage tubing con-
nection on the bottle holder.
3 Attach one end of the 20 cm long piece to the drainage tubing con-
nection on the detector chamber.
4 Attach each of the loose ends of both pieces of silicone tubing to
one end of the Y connector.
5 Attach one end of the second 40 cm long piece to the third end of
the Y connector.
Attach the loose end to the right-side drainage tubing connection on
the base tray.
6 Attach one end of the second piece of silicone tubing to the left-side
drainage tubing connection on the base tray.
