930 Compact IC Flex ChS/Deg (2.930.1260)
For an overview of the rotors, see figure , page 29

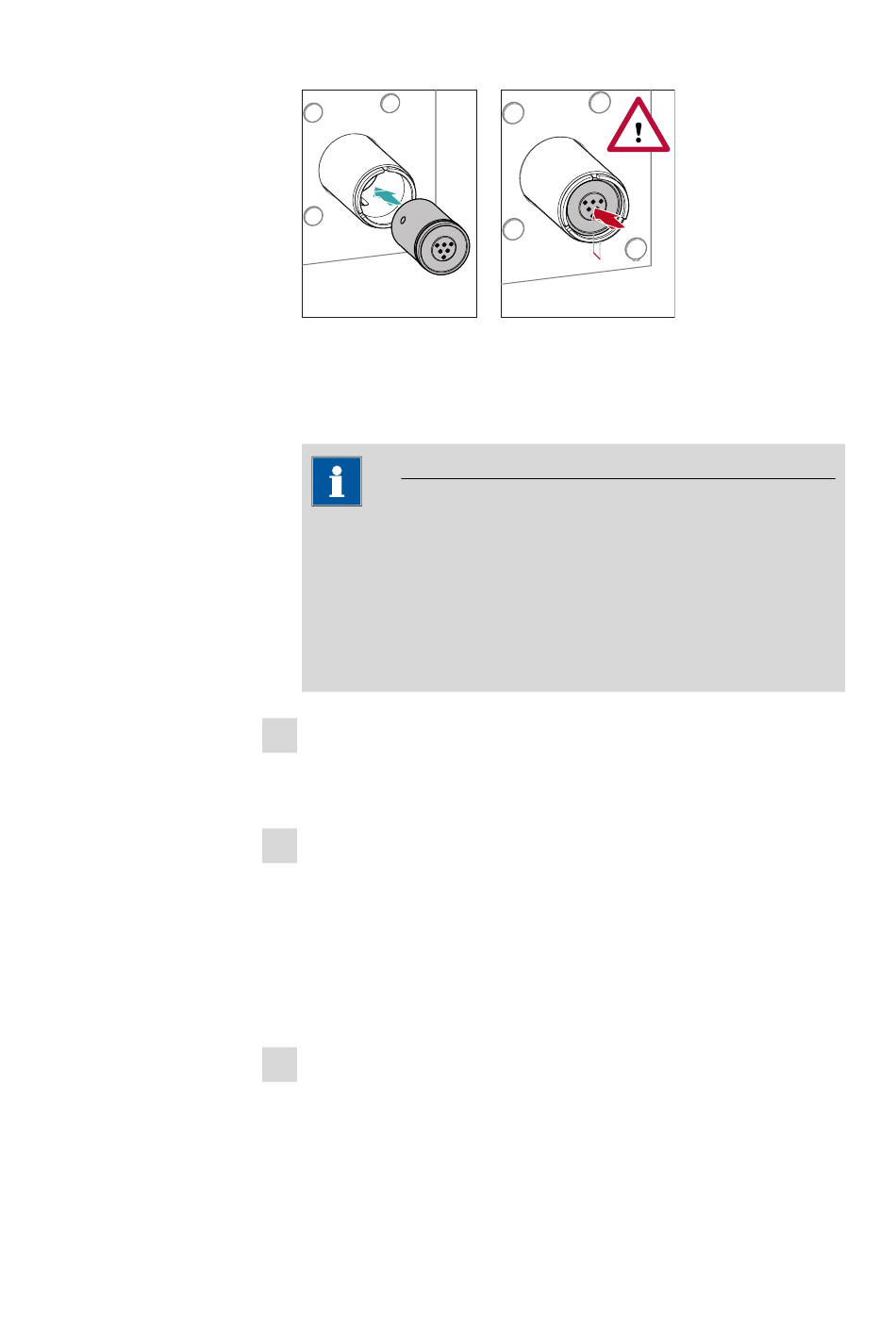

Insert the rotor (21-3) into the housing (21-4) in such a way that
￭
the tubing connections on the rear of the rotor fit into the corre-
sponding recesses inside the housing and one of the three holes
of the rotor is visible from below in the slot of the housing (21-5).
NOTE
The rotor's sealing surface is located approx. 4 mm deep inside the
suppressor drive if the rotor is inserted correctly.
If this is not the case, then the rotor must be moved into the cor-
rect position using careful turning. If the rotor cannot be turned or
removed, it can be moved into the correct position from below by
means of a pointed object (e.g. a screwdriver).
6 Cleaning the connecting piece
Clean the sealing surface of the connecting piece (21-2) with
￭
ethanol using a lint-free cloth.
7 Inserting the connecting piece
See also Chapter 3.11.1, page 29
Insert the connecting piece (21-2) into the housing in such a way
￭
that connector 1 is on top and the three pins of the connecting
piece fit into the corresponding recesses on the housing.
Reattach the union nut (21-1) and tighten by hand (do not use a
￭
tool).
8 Connecting and conditioning the Metrohm Suppressor Mod-
ule (MSM)
Reconnect the MSM to the IC system.
￭
Before switching the MSM over for the first time, rinse each of the
￭
three suppressor units with solution for five minutes.
5 Operation and maintenance
4 mm
￭￭￭￭￭￭￭￭
