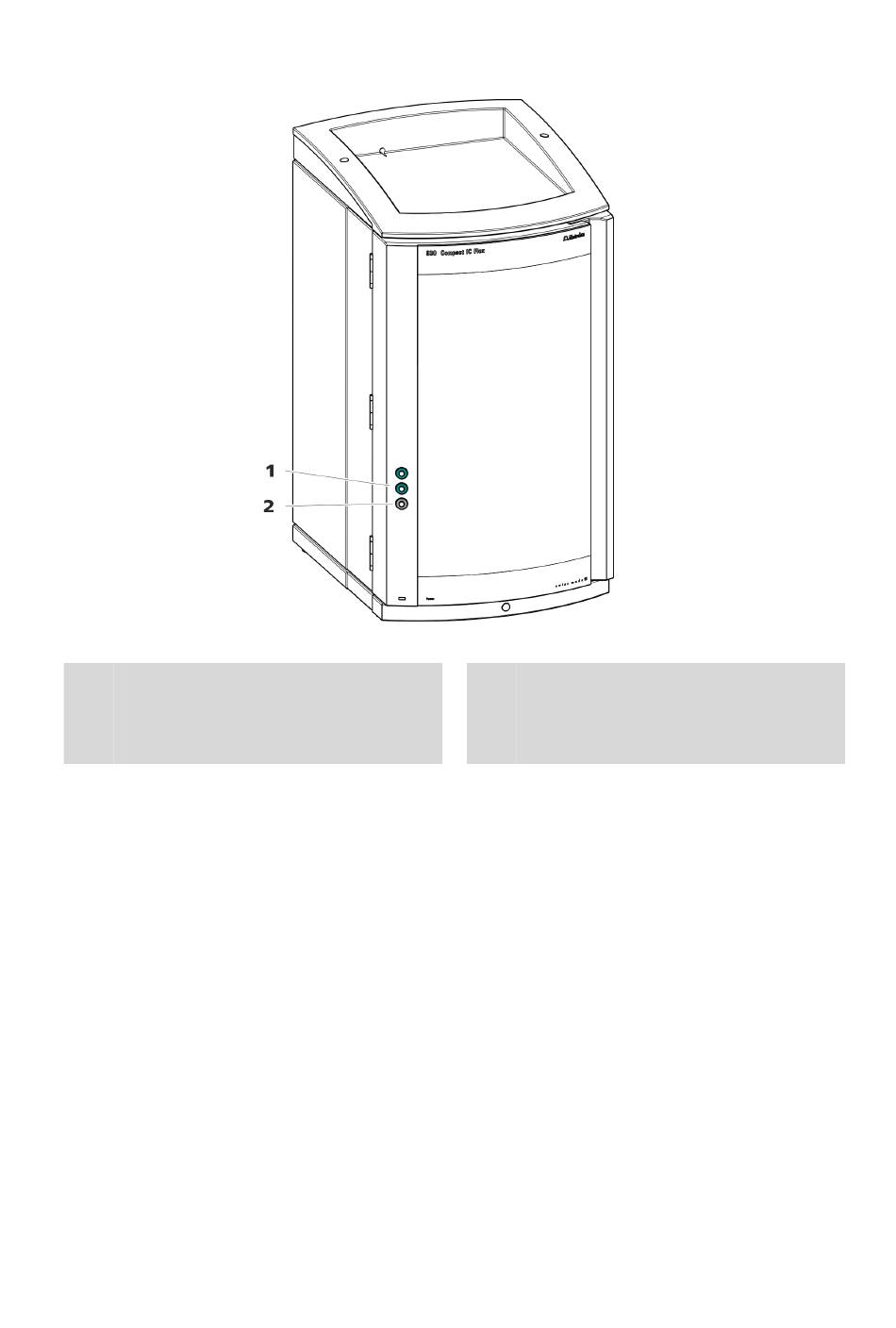

Figure 3 Feed-Throughs On The Door - Metrohm 930 Compact IC Flex ChS/Deg Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
1 Luer connector
For connecting a capillary from inside and
for inserting a syringe (6.2816.020) from
outside. For manual sample injection.
930 Compact IC Flex ChS/Deg (2.930.1260)
Openings on the door
Figure 3 Feed-throughs on the door
An opening for up to 3 capillaries is located on the door of the instru-
ment.
The two Luer connections above are not actually openings; the capillaries
are fastened to the Luer connection from within using PEEK pressure
screws. You can use a syringe to inject or draw out liquid from the out-
side.
2 Opening for capillaries
For up to 3 capillaries.
