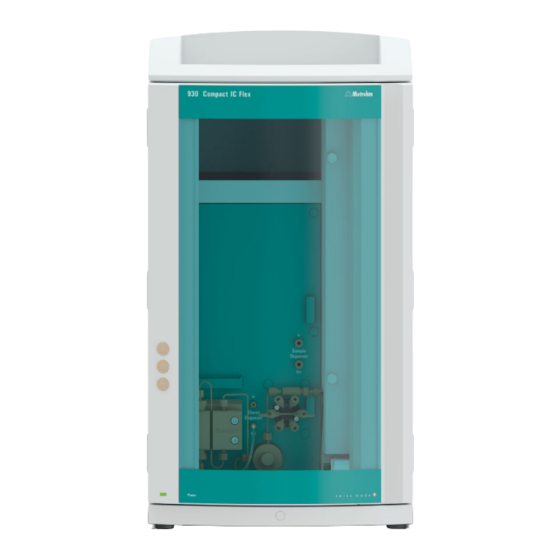

930 Compact IC Flex
930 Compact IC Flex Deg
Manual
8.930.8002EN / 2017-07-31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 930 Compact IC Flex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metrohm 930 Compact IC Flex

Summary of Contents for Metrohm 930 Compact IC Flex

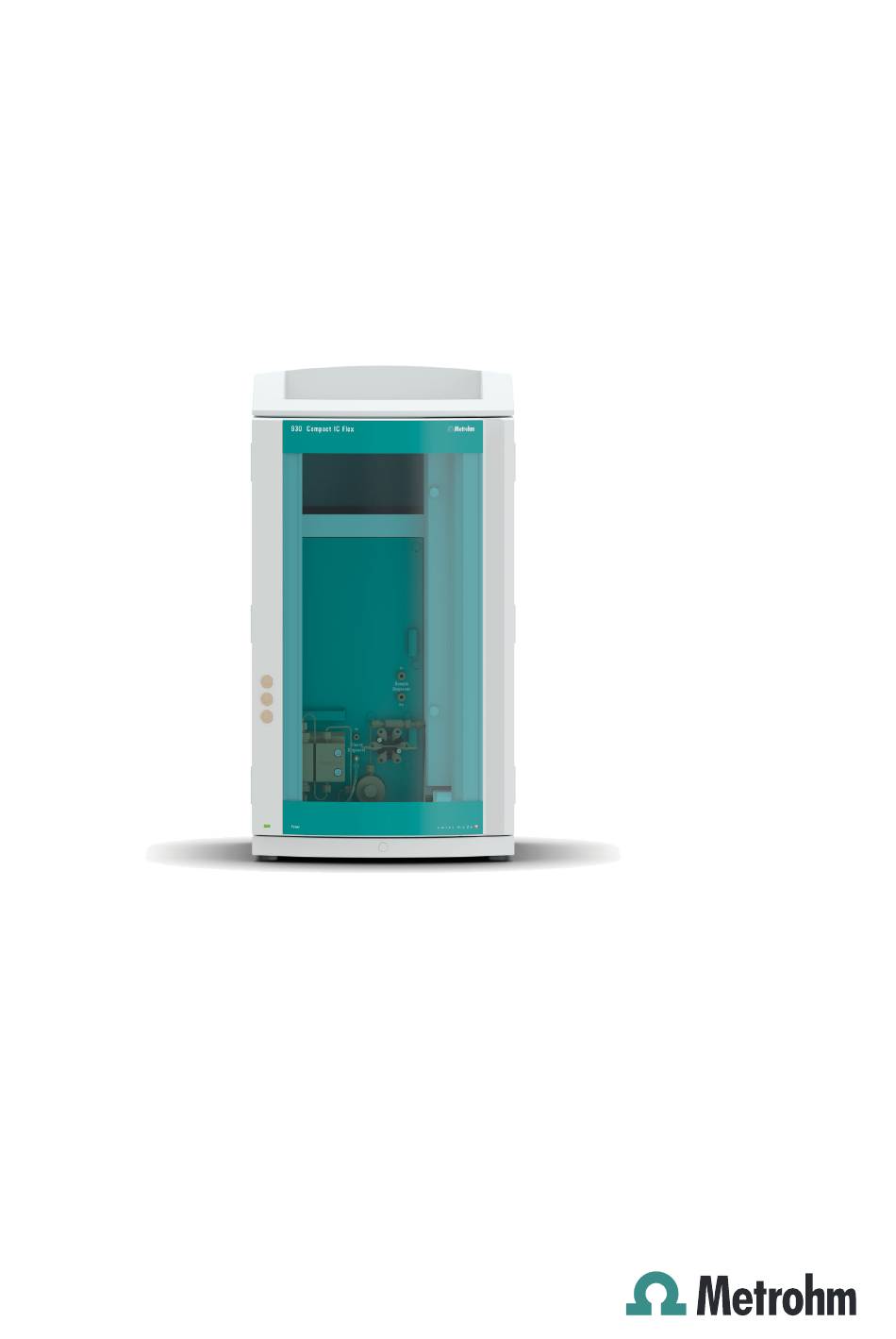

  • Page 1 930 Compact IC Flex 930 Compact IC Flex Deg Manual 8.930.8002EN / 2017-07-31...
  • Page 3 Metrohm AG CH-9100 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com 930 Compact IC Flex 930 Compact IC Flex Deg 2.930.1160 Manual 8.930.8002EN / 2017-07-31...
  • Page 4 Technical Communication Metrohm AG CH-9100 Herisau techcom@metrohm.com This documentation is protected by copyright. All rights reserved. This documentation has been prepared with great care. However, errors can never be entirely ruled out. Please send comments regarding possible errors to the address above.

  • Page 5: Table Of Contents

    3.10 Injection valve ..............26 3.11 Installing the conductivity detector ........28 3.12 Installing the amperometric detector ....... 29 3.13 Connecting the sample degasser (optional) ..... 29 3.14 Connecting the instrument to a computer ....... 31 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 6 Protecting the separation column .......... 66 5.13.3 Storing the separation column ..........66 5.13.4 Regenerating the separation column ........66 5.14 Quality management and qualification with Metrohm ... 67 6 Troubleshooting ..................... 68 7 Technical specifications Reference conditions ............72 Instrument ................
  • Page 7 Eluent degasser ..............73 High-pressure pump ............74 Injection valve ..............75 7.10 Detector ................75 7.11 Sample degasser ..............75 7.12 Power connection ............... 75 7.13 Interfaces ................76 8 Accessories Index ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 8 Removing the piston cartridge from the pump head ......56 Figure 17 Inserting the piston seal into the tool ..........57 Figure 18 Parts of the piston cartridge ............58 Figure 19 Inline filter – Removing the filter ............62 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 9: Introduction

    1 Introduction 1 Introduction Instrument description The 930 Compact IC Flex is a robust ion chromatograph. It is distinguished Its intelligence: All of the functions are monitored, optimized and docu- ￭ mented in an FDA-compatible manner. Intelligent components, such as iColumns, save important data onto a chip.
  • Page 10 Detector Metrohm offers a series of different detectors for various analysis tasks. A suitable detector type must be ordered as a separate device. Sample degasser The sample degasser removes gas bubbles and dissolved gases from the sample.

  • Page 11: Intended Use

    This instrument is suitable for processing chemicals and flammable sam- ples. Therefore, the use of the 930 Compact IC Flex requires the user to have basic knowledge and experience in handling toxic and caustic sub- stances. Knowledge regarding the application of fire prevention measures prescribed for laboratories is also mandatory.

  • Page 12: Tubing And Capillary Connections

    Damaged tubing ends lead to leakage. Appropriate tools can be used to loosen connections. Check the connections regularly for leakage. If the instrument is used mainly in unattended operation, then weekly inspections are manda- tory. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 13: Flammable Solvents And Chemicals

    Method Dialog text, parameter in the software File ▶ New Menu or menu item [Next] Button or key WARNING This symbol draws attention to a possible life-threat- ening hazard or risk of injury. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 14 WARNING This symbol draws attention to a possible biological hazard. CAUTION This symbol draws attention to possible damage to instruments or instrument parts. NOTE This symbol highlights additional information and tips. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 15: Overview Of The Instrument

    Offers space for the eluent bottle and addi- For hanging the separation column (iCol- tional accessories. umn). With column recognition. Column chamber Sample degasser Inline filter Injection valve Pulsation absorber Base tray With leak sensor. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 16: Rear

    12 Detector chamber Offers space for an embedded detector and additional accessories. Rear Figure 2 Rear Bottle holder Drainage tubing connection For connecting the drainage tubing, which guides escaped fluids away from the bottle holder. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 17 For connecting the instrument to the com- Plugged with a stopper. puter with the USB cable (6.2151.020). 21 Power socket Power socket for connecting the power cable and power switch for switching the instrument on and off. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 18: Feed-Throughs For Capillaries And Cables

    The two Luer connections above are not actually openings; the capillaries are fastened to the Luer connection from within using PEEK pressure screws. You can use a syringe to inject or draw out liquid from the out- side. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 19: Figure 4 Openings For Capillaries And Cables

    The capillaries can be fed to the front of the instrument from both sides of the instrument and from the front of the instrument to the back of the instrument. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 20: Figure 5 Ducts For Capillaries

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2.3 Feed-throughs for capillaries and cables Figure 5 Ducts for capillaries ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 21: Installation

    High-pressure pump, purge valve, inline filter, pulsation absorber, separation columns 6.2744.090 Pressure screw, long MCS, sample degasser, 10- port valve Pressure screws are tightened and loosened by hand. A tool is not nee- ded. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 22 (6.2739.000). ￭ In order to achieve optimum analysis results, capillary connections in an IC system must be absolutely tight and free of dead volume. Dead volume ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 23 2 Heat the colored sleeve, e.g. with a hairdryer. The colored sleeve shrinks and adapts to the shape of the capillary. NOTE In order to arrange capillaries more clearly, they can be bundled with the spiral band (6.1815.010). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 24: Removing Transport Locking Screws

    For the vacuum pump. Only present if the For the high-pressure pump. instrument has a degasser or a CO Suppres- sor (MCS). 1 Remove all of the transport locking screws with the hex key. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 25: Connecting The Drainage Tubing And Leak Sensor

    The drainage tubing is connected. ￭ The leak sensor connection cable is inserted into the leak sensor con- ￭ nection socket. The 930 Compact IC Flex is switched on. ￭ The leak sensor is switched to active in the software. ￭ 3.4.1...
  • Page 26 Attach the loose end to the right-side drainage tubing connection on the base tray. 6 Attach one end of the second piece of silicone tubing to the left-side drainage tubing connection on the base tray. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 27: Connecting The Leak Sensor

    (see "Openings on the back panel", page 11) before the loose end can be connected to the eluent bottle. Accessories For this step, you need the following accessories: These parts are part of the accessory kit Vario/Flex ONE (6.5000.010). Eluent bottle (6.1608.070) ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 28: Figure 7 Installing The Eluent Bottle Cap

    Lastly, push the filter holder onto the loose end of the eluent aspi- ￭ ration tubing and screw it onto the tubing nipple. The end of the tubing should extend approximately 1 cm. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 29: Figure 8 Installing Tubing Weighting And Aspiration Filter

    Installing tubing weighting and aspiration filter 5 Installing the eluent bottle cap on the eluent bottle Insert the eluent aspiration tubing into the eluent bottle ￭ (6.1608.070). Tighten the bottle cap on the eluent bottle. ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 30 Fill the adsorber tube and close it again using the plastic cover. Insert the adsorber tube into the bottle cap's large opening. Fas- ￭ ten it to the bottle cap using the SGJ clip (6.2023.020). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 31: Connecting The Eluent Degasser

    "life history" (operating hours, service data, etc.) are saved. The high-pressure pump consists of: The pump head, which pumps the eluent through the system. ￭ The purge valve used for bleeding the pump head. ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 32: Installing An Inline Filter

    The small filter pads with 2 µm pore size can be replaced quickly and easily. They remove particles from the solutions. An inline filter (6.2821.120) is installed between the purge valve and the pulsation absorber as protection against particles. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 33: Installing The Pulsation Absorber

    Figure 11 Pulsation absorber Connection capillary PEEK pressure screws, short Connection to inline filter. (6.2744.070) Pulsation absorber (6.2620.150) Holder for pulsation absorber Connection capillary Connection to injection valve. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 34: Injection Valve

    The quantity of sample solution injected is determined by: the volume of the sample loop or ￭ by an 800 Dosino when the Metrohm intelligent Partial Loop Injection ￭ Technique (MiPT) is used. The choice of sample loop depends on the application. The following...

  • Page 35: Figure 12 Exchanging The Sample Loop

    Fasten one end of the sample loop to Port 3 using a PEEK pressure ￭ screw (6.2744.010). Use the second PEEK pressure screw (6.2744.010) to fasten the ￭ other end of the sample loop to Port 6. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 36: Installing The Conductivity Detector

    3.11 Installing the conductivity detector 3.11 Installing the conductivity detector The 930 Compact IC Flex provides enough space for one detector and additional accessories in the detector chamber. The detector is available as separate device and is supplied with a separate manual.

  • Page 37: Installing The Amperometric Detector

    3 Installation 3.12 Installing the amperometric detector The 930 Compact IC Flex provides enough space for one detector and additional accessories in the detector chamber. The detector is available as separate device and is supplied with a separate manual. Placing the detector in the instrument Follow the instructions in the chapter Inserting the detector in the manual for the detector.
  • Page 38 3 Connecting the inlet capillary Push a long pressure screw over one end of the PTFE capillary ￭ (6.1803.040) and tighten the pressure screw to the inlet of the sample degasser (labeled In). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 39: Connecting The Instrument To A Computer

    Basic (6.5000.000) Connecting the USB cable 1 Insert the USB cable into the computer connection socket on the rear of the instrument. 2 Insert the other end into a USB port on the computer. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 40: Connecting The Instrument To The Power Grid

    Unplug the power plug immediately if you suspect that moisture has ￭ gotten inside the instrument. Only personnel who have been issued Metrohm qualification may ￭ perform service and repair work on electrical and electronic parts. Connecting the power cord Accessories Power cord, three-core with IEC 60320 instrument plug type C13.

  • Page 41: Initial Start-Up

    Switch on the instrument. ￭ MagIC Net detects the instrument and all of its modules. 3 Starting equilibration Start the equilibration in MagIC Net: Workplace ▶ Run ▶ Equili- ￭ bration ▶ Start HW. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 42 Remove the syringe from the purge needle. ￭ Pull the purge needle out of the purge capillary. ￭ 5 Rinsing the instrument without columns Rinse the instrument (without columns) with eluent for 10 ￭ minutes. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 43: Connecting And Rinsing The Guard Column

    Connecting and rinsing the guard column Guard columns protect separation columns and significantly increase their service life. The guard columns available from Metrohm are either actual guard columns or guard column cartridges used together with a cartridge holder. The process of installing a guard column cartridge into the corre- sponding holder is described in the guard column leaflet.
  • Page 44 Rinsing the guard column 1 Rinsing the guard column Place a beaker under the guard column's outlet. ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 45: Connecting The Separation Column

    NOTE Information regarding which separation column is suitable for your application can be found in the Metrohm Column Program, the product information for the separation column or it can be obtained through your representative.
  • Page 46 3.18 Connecting the separation column NOTE Connect the separation column only after the initial start-up of the instrument. Until that point, insert a coupling (6.2744.040) instead of the guard column and separation column. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 47 Remove the coupling (6.2744.040) from the column outlet capil- ￭ lary. 5 Installing the outlet of the separation column Fasten the column outlet capillary to the column outlet using a ￭ short PEEK pressure screw (6.2744.070). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 48: Conditioning

    (arrow has to point in the direction of flow). Ensure that the eluent aspiration tubing is immersed in the eluent ￭ and that there is enough eluent in the eluent bottle. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 49 4 Conditioning the system Continue rinsing the system with eluent until the desired stability level for the baseline has been attained . The instrument is now ready for measuring samples. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 50: Operation

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4 Operation The 930 Compact IC Flex Deg is operated solely using the MagIC Net soft- ware. You can find information on operating the software in the tutorial for MagIC Net or in the online help. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 51: Operation And Maintenance

    Maintenance by Metrohm Service Maintenance of the instrument is best carried out as part of an annual service performed by specialist personnel from Metrohm. A shorter main- tenance interval is recommended if you frequently work with caustic and corrosive chemicals. Metrohm Service offers every form of technical advice for maintenance and service of all Metrohm instruments.

  • Page 52: Shutting Down And Recommissioning

    3 Rinse the IC system for 15 minutes with methanol/ultrapure water mixture (1:4). 4 Optional: Only if the IC system is equipped with a suppressor. In the software, switch the Metrohm Suppressor Module (MSM) twice during the rinsing process at five-minute intervals in each case (STEP command).

  • Page 53: Capillary Connections

    To protect the IC system from foreign particles, we recommend aspirat- ￭ ing the eluent via an aspiration filter (see Chapter 3.5, page 19) (6.2821.090). This aspiration filter must be replaced as soon as it turns yellow but at least every 3 months. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 54: Manufacturing Eluent

    NOTE To change the eluent, remove the guard column and the separation col- umn. Connect the capillaries using a coupling (6.2744.040) and two pressure screws (6.2744.070). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 55: Servicing The Eluent Degasser

    To protect the high-pressure pump from foreign particles, we recom- ￭ mend filtering the eluent through a filter with a pore size of 0.45 µm and aspirating it via an aspiration filter (6.2821.090). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 56: Servicing The High-Pressure Pump

    Servicing the high-pressure pump NOTE You can find a video sequence for this task in the Multimedia Guide IC Maintenance or on the Internet at http://ic-help.metrohm.com/. Figure 13 High-pressure pump – Parts Pressure screw, short (6.2744.070) Outlet valve holder Fastened to the outlet valve holder.
  • Page 57 Internet at http://ic-help.metrohm.com/. Servicing the outlet valve and inlet valve Accessories For this step, you need the following accessories: You can find these parts in the accessory kit: Vario/Flex Basic (6.5000.000). Adjustable wrench (6.2621.000) ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 58 RBS™ solution or acetone. The rinsing solution may only come out at the valve outlet. The outlet valve must be replaced if it is still clogged after cleaning. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 59 ¼ turn using the adjustable wrench (3). Tighten the connection capillary to the auxiliary piston back onto ￭ the outlet valve holder. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 60 RBS™ solution or acetone. The rinsing solution may only come out at the valve outlet. The inlet valve must be replaced if it is still clogged after cleaning. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 61 You can find these parts in the accessory kit: Vario/Flex Basic (6.5000.000). 4 mm hex key (6.2621.030) ￭ Removing the pump head Prerequisites: Is the high-pressure pump switched off? ￭ Has the pressure been released? ￭ Is the instrument switched off? ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 62 Servicing the piston Carry out the following work on both pistons in turn. Servicing a piston consists of the following tasks: Replace the piston seal. Clean or replace the zirconium oxide piston. Reinstall the piston. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 63: Figure 14 High-Pressure Pump - Cross-Section

    (6.5000.000). Adjustable wrench (6.2621.000) ￭ Tool for piston seals (6.2617.010) consisting of a tip (15-1) for remov- ￭ ing the old piston seal and a sleeve (15-2) for inserting the new piston seal. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 64: Figure 15 Tool For Piston Seal (6.2617.010)

    Loosen the piston cartridge (16-1) using the adjustable wrench and then unscrew it from the pump head by hand. Set it aside. 2 Removing the backup ring Shake the backup ring (16-2) out of the piston opening. Set it aside. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 65: Figure 17 Inserting The Piston Seal Into The Tool

    Press the seal into the pump head recess using the wide end of the tip (15-1) of the tool. Cleaning or replacing the zirconium oxide piston Prerequisites: ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 66: Figure 18 Parts Of The Piston Cartridge

    Place the backup ring you put aside with the remaining parts. ￭ Figure 18 Parts of the piston cartridge Piston cartridge screw Retaining washer Zirconium oxide piston (6.2824.070) Spring retainer Spring (6.2824.060) Inner plastic sleeve Protects from metallic abrasion. Piston cartridge Backup ring ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 67 Clean the second piston cartridge in the same way. Mounting the pump head Accessories For this step, you need the following accessories: You can find these parts in the accessory kit: Vario/Flex Basic (6.5000.000). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 68 The bore hole with the greatest depth must therefore be aligned with the longest bolt. Push the pump head onto the four fastening bolts (1). ￭ Tighten the four fastening screws using the hex key (6.2621.030) ￭ alternating crosswise. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 69: Servicing The Inline Filter

    Servicing the inline filter NOTE You can find a video sequence for this task in the Multimedia Guide IC Maintenance or on the Internet at http://ic-help.metrohm.com/. Maintenance interval The filter must be replaced at least every 3 months; it may need to be replaced more frequently, depending on the application.

  • Page 70: Figure 19 Inline Filter - Removing The Filter

    3 Unscrewing the filter screw Use two adjustable wrenches (6.2621.000) to loosen the filter screw (19-2) from the filter housing (19-1) and unscrew it by hand. 4 Removing the filter Remove the old filter (19-3) using tweezers. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 71 4 Rinsing the inline filter Dismantle the guard column (if present) and the separation col- ￭ umn and replace with a coupling (6.2744.040). Rinse the instrument with eluent. ￭ Reinsert the columns after 10 minutes. ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 72: Servicing The Pulsation Absorber

    1 Emptying the sample path Pump air through the sample path (pump tubing, tubing connec- tions, capillary in the degasser, sample loop) for several minutes until all liquid is displaced by the air. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 73 A. The smaller this ratio, the smaller the amount of sample carry- over. This ratio can be changed by varying the rinsing time. This can be used to determine the required rinsing time for the application. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 74: Separation Column

    You can find detailed information on the separation columns available from Metrohm in the leaflet provided along with your separation column, in the Metrohm IC Column Program (available from your Metrohm representative) or on the Internet at http://www.metrohm.com...

  • Page 75: Quality Management And Qualification With Metrohm

    Metrohm offers you comprehensive support in implementing quality man- agement measures for instruments and software. Qualification Please contact your local Metrohm representative for support in qualifica- tion of instruments and software. The Installation Qualification (IQ) and Operational Qualification (OQ) are offered by Metrohm represen- tatives as a service.

  • Page 76: Troubleshooting

    Constantly stir the eluent. ￭ The pressure in the The inline filter Replace the filter (6.2821.130) . system markedly (6.2821.120) is blocked. increases. Guard column – Blocked. Replace the guard column (see Chapter 3.17, page 35). ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 77 Replace the separation column (see "Con- ￭ necting the separation column", page 39). Note: Samples should always be microfiltered . Injection valve – blocked. Have the valve cleaned (by a Metrohm service engineer). The retention times Eluent - Incorrect concen- Create eluent with correct concentration.
  • Page 78 Use the sample degasser . bubbles in the sample. Sample – The rinsing vol- Increase the rinsing time (see Chapter 5.12, ume is too small. page 64). Injection valve – Defective. Request Metrohm Service. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 79 Cause Remedy Vacuum is not being Seal the Vacuum connector tightly with a Eluent degasser – Vacuum ￭ built connection on the rear of threaded stopper (6.1446.040). the instrument is not (tightly) sealed. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 80: Technical Specifications

    Ambient conditions Operation Ambient tem- +5 - +45 °C perature Humidity 20 - 80% relative humidity Storage Ambient tem- –20 - +70 °C perature Transport Ambient tem- –40 - +70 °C perature ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 81: Housing

    On the rear of the instrument Weight 2.930.1160 21.53 kg (without accessories) Leak sensor Type Electronic, no calibration necessary Eluent degasser Material Fluoropolymer Resistance to sol- No restriction (except PFC) vents Time to establish < 60 s vacuum ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 82: High-Pressure Pump

    The shutdown mechanism is inactive at 0 MPa ￭ The shutdown mechanism becomes active two minutes after sys- ￭ tem start The pump is automatically shut down after three piston strokes ￭ below the minimum pressure limit ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 83: Injection Valve

    65 W for typical analysis application ￭ tion 25 W standby (conductivity detector to 40 °C) ￭ Power supply unit Up to 300 W maximum, electronically monitored ￭ internal fuse 3.15 A ￭ ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 84: Interfaces

    1 15-pin high-density D-sub (female) (labeled Detector) Detector Column recogni- for an intelligent column tion Leak sensor 1 jack plug (labeled Leak Sensor) Further connec- tions Auxiliary 1 15-pin DSUB (female) Service 1 15-pin DSUB (female) ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 85: Accessories

    The PDF file with the accessories data will be created. NOTE When you receive your new instrument, we recommend downloading the accessories list from the Internet, printing it out and keeping it together with the manual for reference purposes. ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)

  • Page 86: Index

    Pressure range ......74 Installation ......17 Drainage tubing ....17 Protection Eluent bottle ....... 19 Inline filter ......24 Guard column ....35 Pulsation ........49 Electrostatic charge ....4 Injection valve ....26 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
  • Page 87 Sample Vacuum pump Carry-over ......64 Protection ......17 Technical specifications Sample loop ....... 26 Valve Detector ......76 Transfer time ...... 64 See also "Injection valve" ..26 Eluent degasser ....73 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Deg (2.930.1160)
