3.11 Metrohm Suppressor Module (MSM)
3.11.2

Connecting the Metrohm Suppressor Module (MSM)

1 out
Outlet capillary for the eluent.
￭￭￭￭￭￭￭￭
32
Clean the sealing surface of the rotor with ethanol using a lint-
￭
free cloth.
Insert the rotor into the adapter so that the tubing connections
￭
on the rear of the rotor fit into the corresponding recesses inside
the adapter and one of the three holes of the rotor is visible in the
slot of the adapter.
2 Inserting the adapter
Insert the adapter into the suppressor drive just like a large rotor (see
"Inserting large rotors", page 30).
The three entries and exits of the suppressor units, numbered 1, 2 and 3
on the connecting piece, each have two permanently installed PTFE capil-
laries.

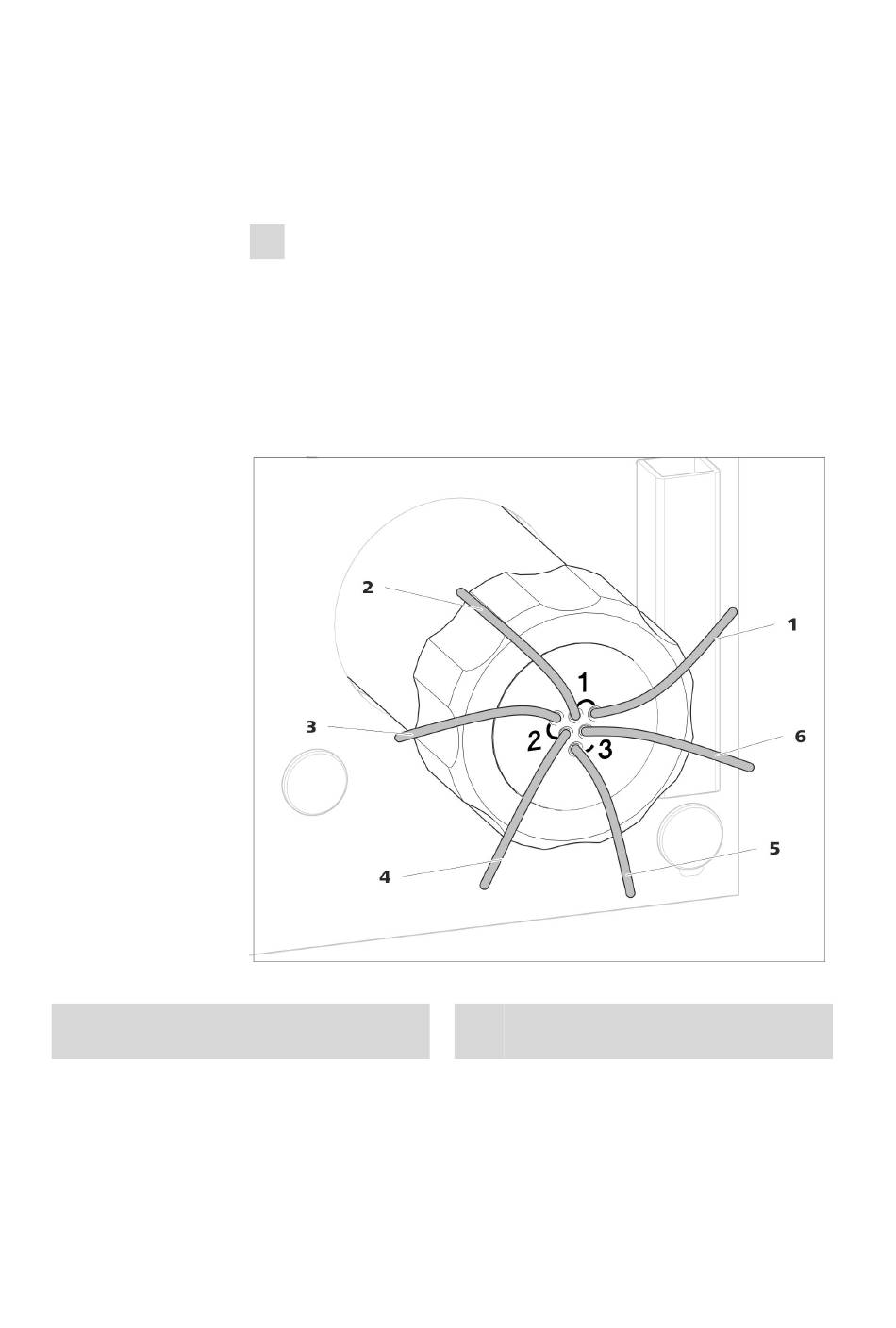

Figure 13 Metrohm Suppressor Module (MSM) – Connection capillaries
2 in
Inlet capillary for the eluent.
