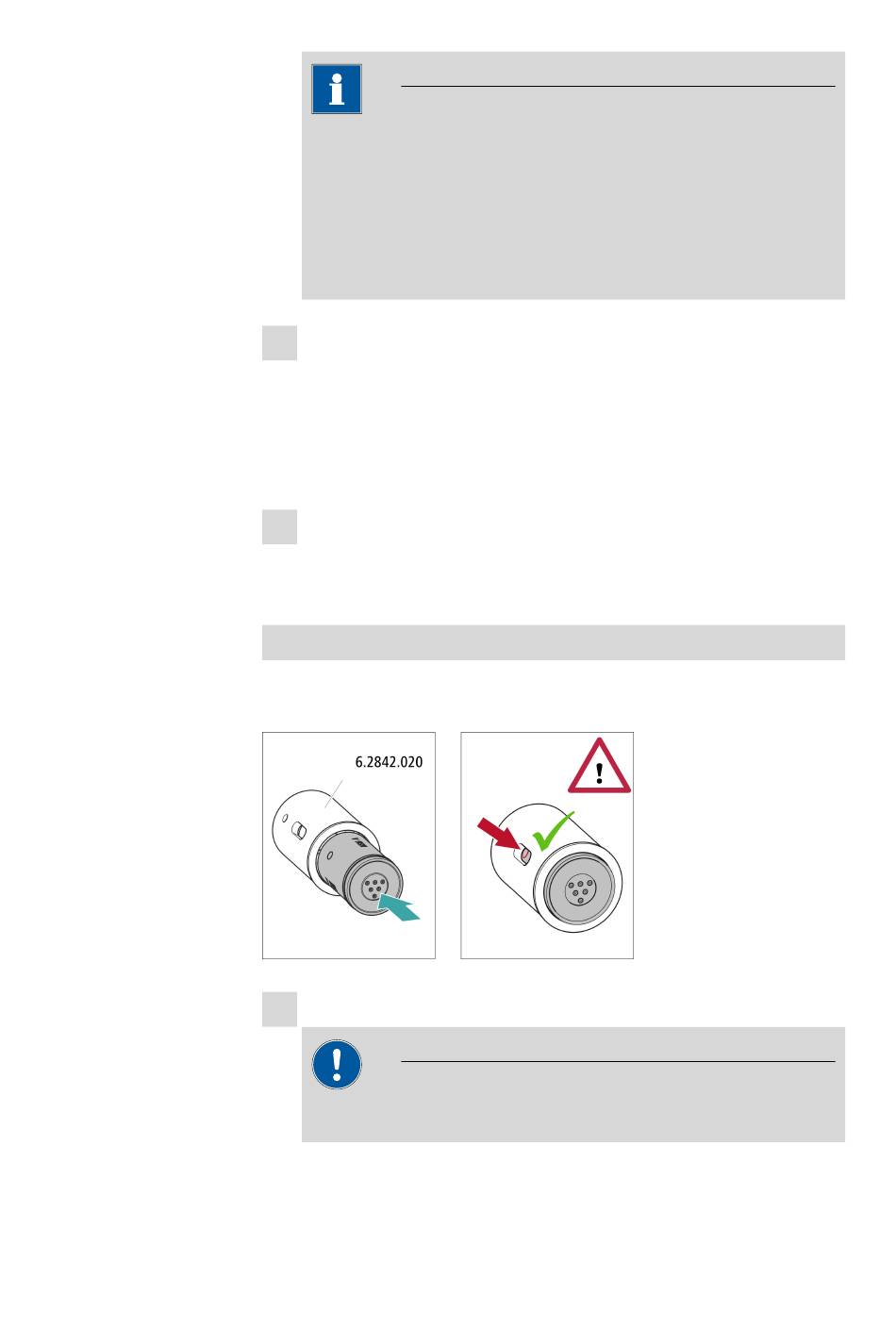

Metrohm 930 Compact IC Flex ChS/Deg Manual page 39

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
930 Compact IC Flex ChS/Deg (2.930.1260)
NOTE
The rotor's sealing surface is located approx. 4 mm deep inside the
suppressor drive if the rotor is inserted correctly.
If this is not the case, then the rotor must be moved into the cor-
rect position using careful turning. If the rotor cannot be turned or
removed, it can be moved into the correct position from below by
means of a pointed object (e.g. a screwdriver).
3 Inserting the connecting piece
Clean the sealing surface of the connecting piece with ethanol
￭
using a lint-free cloth.
Insert the connecting piece into the suppressor drive so that con-
￭
nector 1 is on top and the three pins of the connecting piece fit
into the corresponding recesses on the suppressor drive.
4 Attaching the union nut
Tighten the union nut on the thread of the suppressor drive by hand
(do not use any tools).
Inserting small rotors
You need the adapter (6.2842.020) in order to insert a small rotor into the
suppressor drive.
1 Inserting the rotor into the adapter
CAUTION
An incorrectly inserted rotor may be destroyed during start-up.
3 Installation
￭￭￭￭￭￭￭￭
31
