3.4

Connecting the eluent bottle

Accessories
942 Extension Module Vario ONE/Deg (2.942.1060)
For this step, you need the following accessories:
Eluent bottle (6.1608.070)
￭
The eluent bottle cap GL 45 accessory set (6.1602.160)
￭
This accessory set contains the bottle cap, an M6 tubing nipple, an M8
tubing nipple, two O-rings and an M6 and M8 threaded stopper.
The tubing adapter for aspiration filter accessory set (6.2744.210)
￭
This accessory set contains a filter holder, a clamping screw and tubing
weighting.
An aspiration filter (6.2821.090)
￭
The adsorber tube (6.1609.000)
￭
The SGJ clip (6.2023.020)
￭
Connecting the eluent aspiration tubing
1 Installing the eluent bottle cap (6.1602.160)
Start by pushing the M8 tubing nipple onto the loose end of the
￭
eluent aspiration tubing, followed by the O-ring.
Push the loose end of the eluent aspiration tubing through the
￭
M8 opening of the bottle cap and screw it on for the time being.

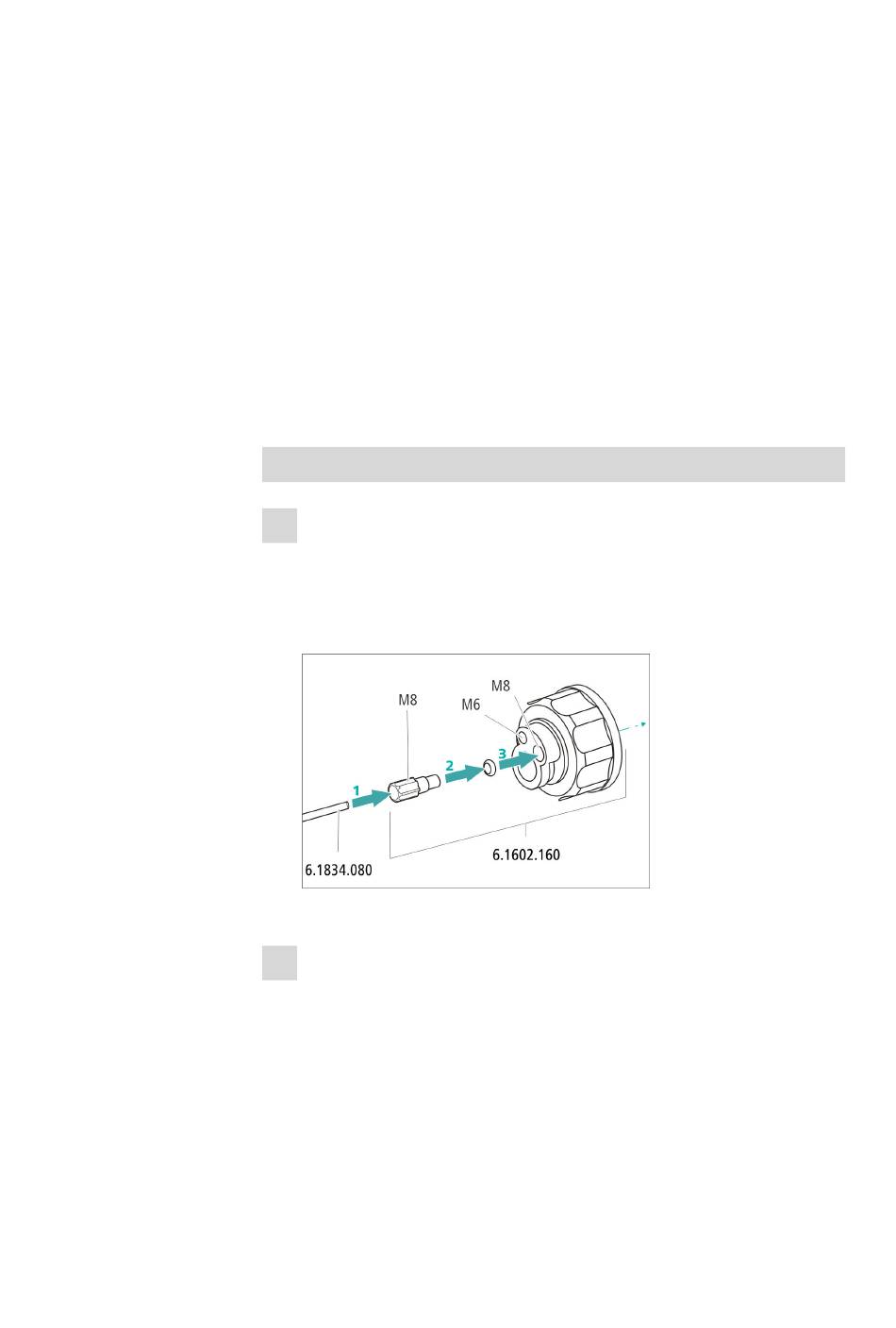

Figure 8 Installing the eluent bottle cap
2 Mounting the tubing adapter
Install the parts of the tubing adapter for aspiration filter
(6.2744.210) accessory set:
Start by pushing the tubing weighting onto the loose end of the
￭
eluent aspiration tubing.
Then push the clamping screw onto the loose end of the eluent
￭
aspiration tubing.
3 Installation
