Metrohm 930 Compact IC Flex ChS/Deg Manual page 41

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 regenerant
Inlet capillary for the regeneration solution.
5 waste rins.
Outlet capillary for the rinsing solution; to
the waste container.
3.11.2.1 Installing the eluent path

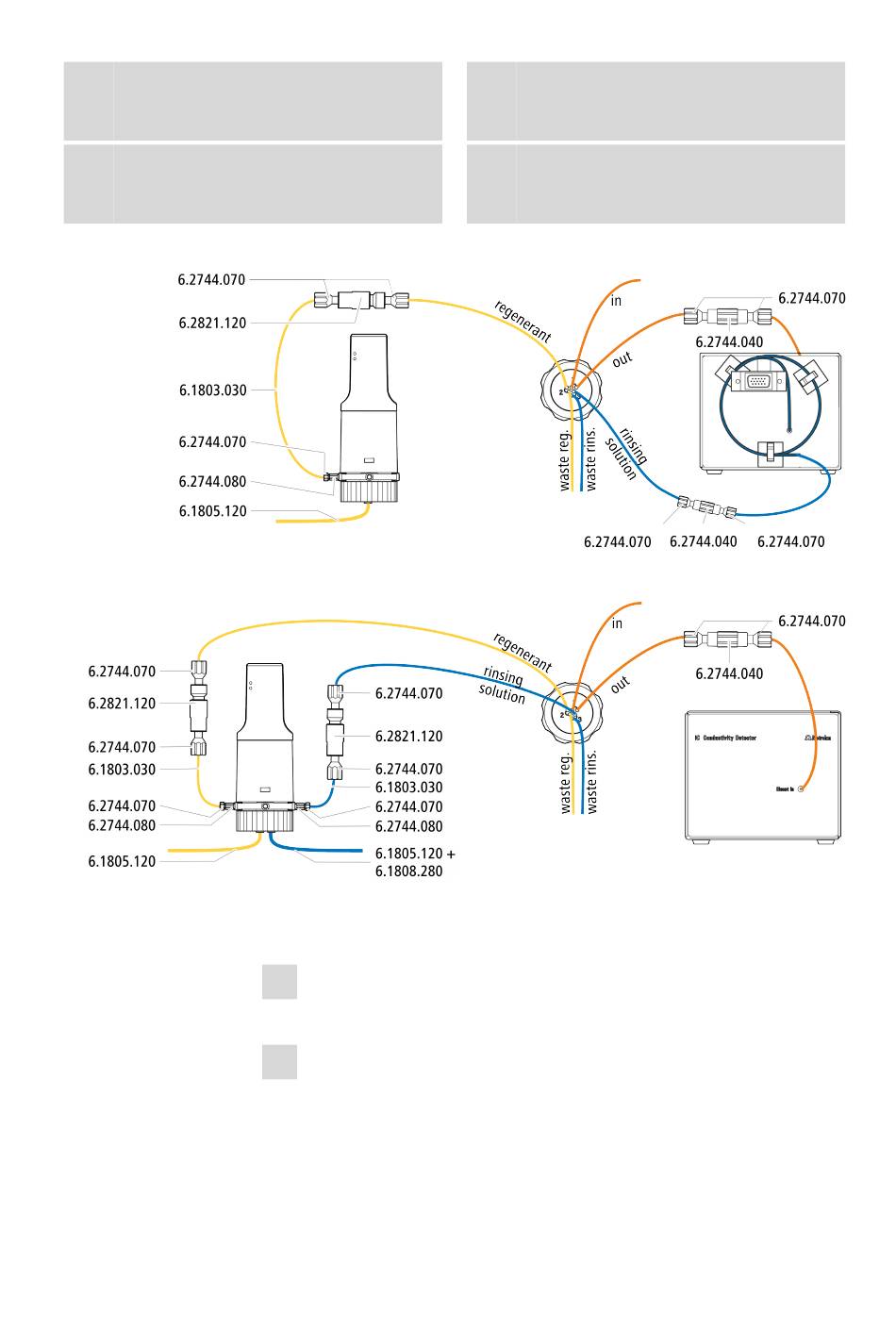

930 Compact IC Flex ChS/Deg (2.930.1260)
Recommended installation
Alternative installation
The eluent path is connected with the capillaries in and out.
1 Connect the capillary labeled in to the outlet of the separation col-
umn using a short pressure screw (6.2744.070).
2 Connect the capillary labeled out to the detector inlet capillary using
one coupling (6.2744.040) and two pressure screws (6.2744.070)
(see manual of the conductivity detector).
4 waste reg.
Outlet capillary for the regeneration solu-
tion; to the waste container.
6 rinsing solution
Inlet capillary for the rinsing solution.
3 Installation
￭￭￭￭￭￭￭￭
33
