2.2

Rear

1 Bottle holder
3 Knurled screws
For fastening the removable back panel.
5 Drainage tubing connection
For connecting the drainage tubing, which
guides escaped liquids away from the detec-
tor chamber.
930 Compact IC Flex ChS/Deg (2.930.1260)

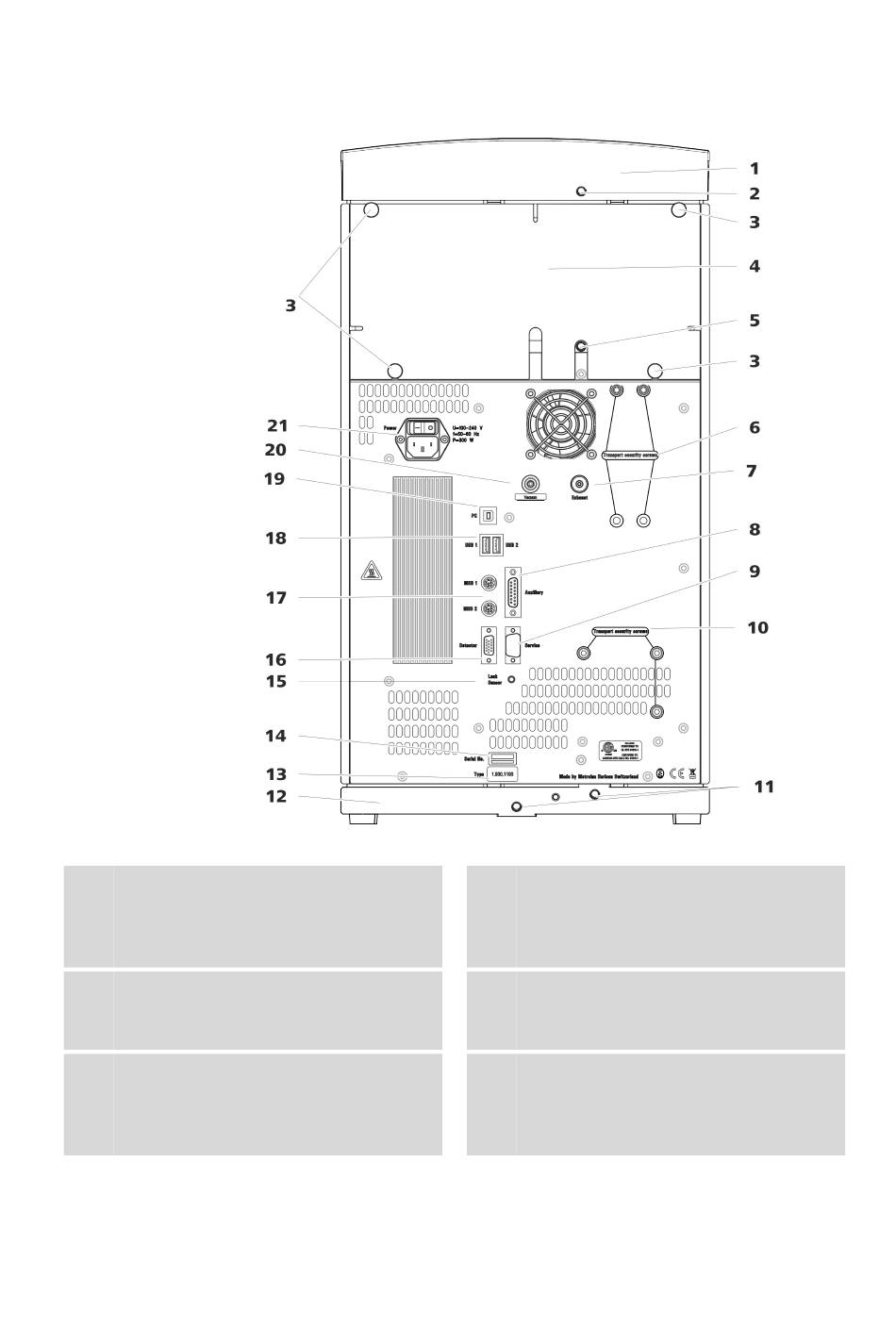

Figure 2 Rear
2 Drainage tubing connection
For connecting the drainage tubing, which
guides escaped fluids away from the bottle
holder.
4 Back panel
Removable. Enables access to the detector
chamber.
6 Transport locking screws
For securing the vacuum pump when trans-
porting the instrument.
2 Overview of the instrument
￭￭￭￭￭￭￭￭
9
